262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Fuel Filter (Fuel Cooled System)

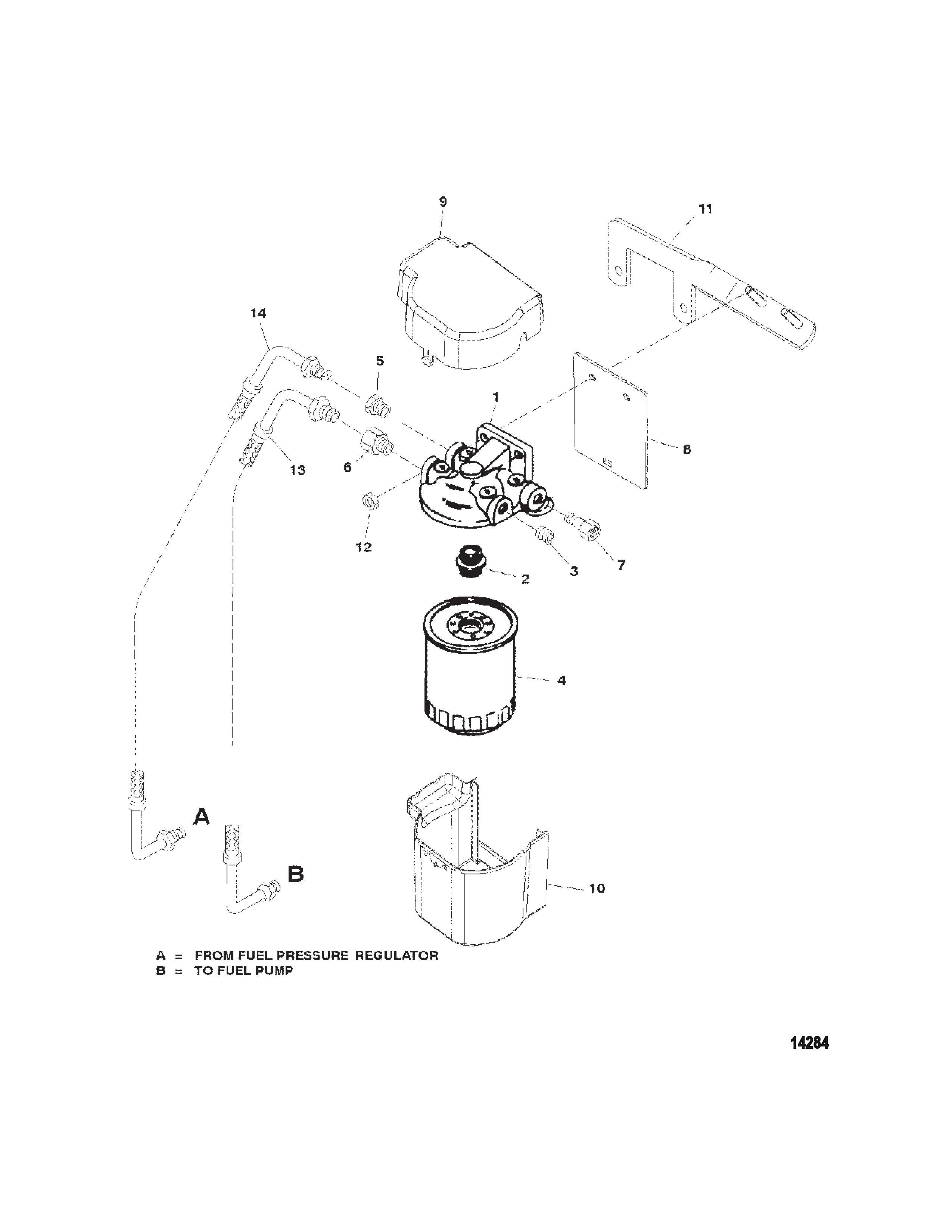

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-89876A3, Sierra: 676-18-7853-1, GLM: 700-25000 BASE ASSEMBLY Fuel Filter/Water Seperator   1
2 0022 8161331 FITTING   1
3 0022 OEM: 525-22-32561 PLUG Pipe - Allen Head (.250-18)   1
4 0035 807172 FILTER Fuel/Water Separator   1 [1]
5 0022 OEM: 525-22-33821 CONNECTOR   1
6 0022 OEM: 525-22-808003 CONNECTOR   1
7 0022 OEM: 525-22-807958 FITTING (1/4-18)   1
8 0000 OEM: 525-807956T INSULATOR Back   1
9 0000 807806T INSULATOR Cap   1
10 0000 807807T INSULATOR Base   1
11 0000 OEM: 525-807918T BRACKET Fuel Filter Base   1
12 0011 45592 NUT (.312-24)   2
13 0032 807953T LINE ASSEMBLY Fuel   1
14 0032 807954T HOSE ASSEMBLY   1

PART NOTES:

[1] - Alternate part numbers:

802893QQS

802893TMPP

807172Service Part
