262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Distributor And Ignition Components

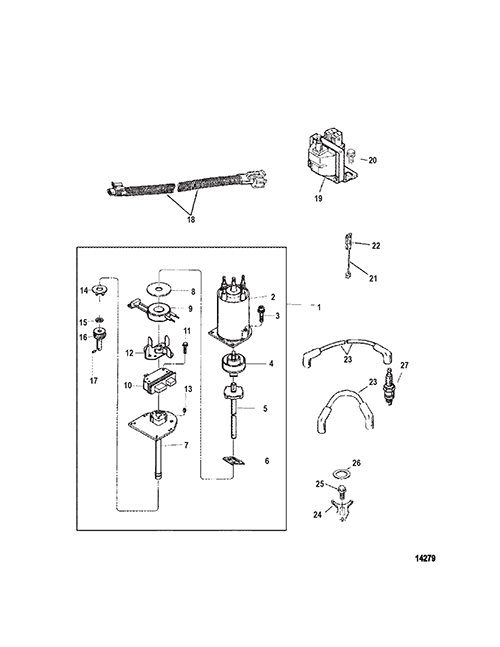

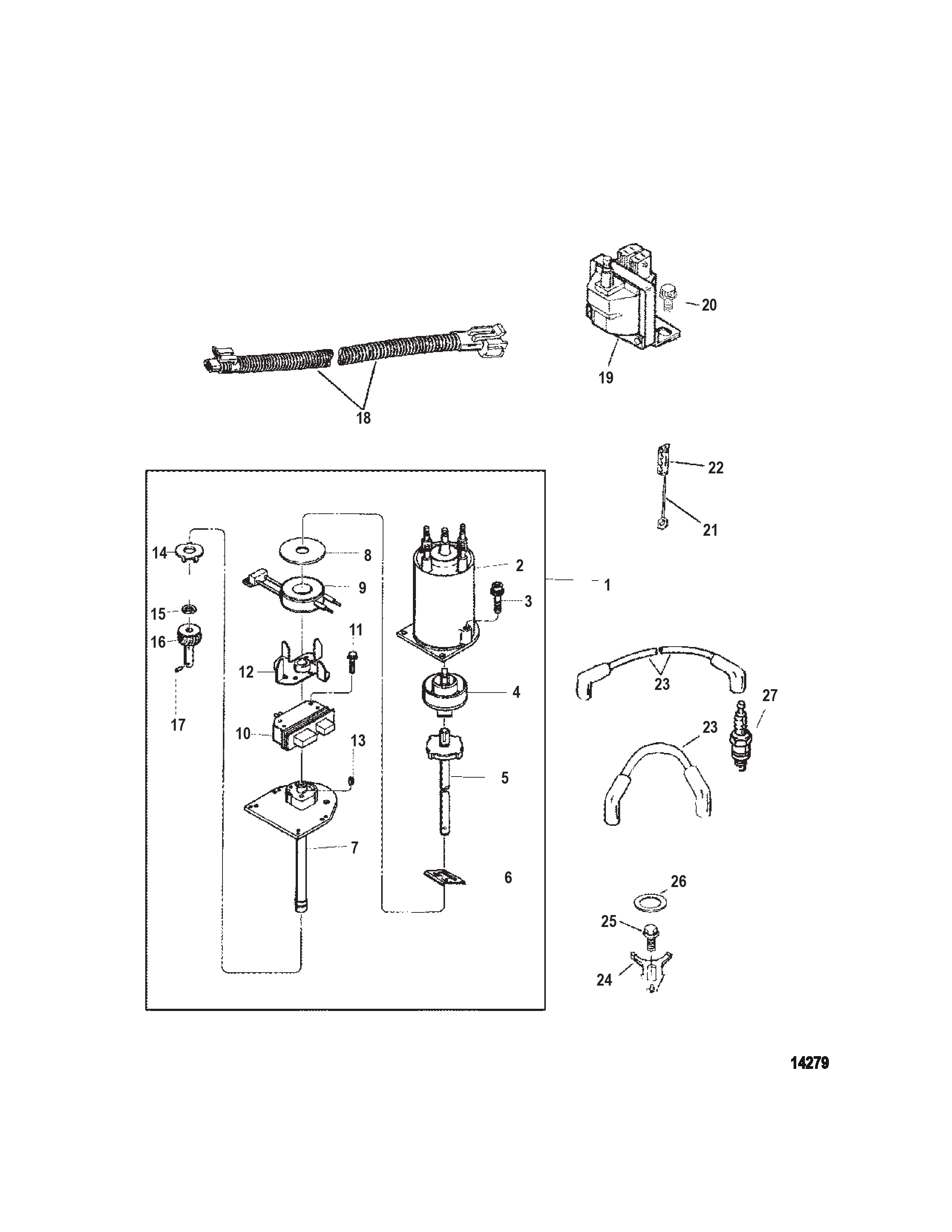

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-807964A1, Sierra: 676-18-5476 | DISTRIBUTOR ASSEMBLY | 1 | ||
| 2 | 0000 | 850484T | CAP | 1 | [1] | |
| 3 | 0010 | 808491 | SCREW | 2 | ||
| 4 | 0000 | 850485 | ROTOR | 1 | [2] | |
| 5 | 0000 | 850486 | SHAFT ASSEMBLY Main | 1 | ||
| 6 | 0000 | 850491 | RETAINER | 1 | ||
| 7 | 0000 | 850488 | HOUSING | 1 | ||
| 8 | 0000 | 850490 | SHIELD | 1 | ||
| 9 | 0000 | OEM: 525-811639T, Sierra: 676-18-5108, GLM: 700-72130 | COIL | 1 | ||
| 10 | 0000 | 811637T | MODULE | 1 | ||
| 11 | 0010 | 850494 | SCREW | 2 | ||
| 12 | 0000 | 850492 | POLE PIECE | 1 | ||
| 13 | 0017 | 808488 | PIN | 1 | ||
| 14 | 0012 | 46350 | WASHER | 1 | ||
| 15 | 0012 | OEM: 525-12-808489 | WASHER | 1 | ||
| 16 | 0043 | 850493 | GEAR Drive | 1 | ||
| 17 | 0017 | 34109 | PIN | 1 | ||
| 18 | 0084 | 817376T | HARNESS ASSEMBLY Distributor Module to Ignition Coil | 1 | ||
| 19 | 0000 | 817378 | COIL | 1 | ||
| 20 | 0010 | OEM: 525-10-805189 | SCREW (.375-16 x .750) | 2 | ||
| 21 | 0016 | OEM: 525-16-90096A1 | STUD ASSEMBLY (#10-32 x Special) | 2 | ||
| 22 | 0054 | OEM: 525-54-72821 | RETAINER | 2 | ||
| 23 | 0084 | 816608A82 | CABLE KIT Ignition (SPARK PLUGS & COIL) | 1 | ||
| 24 | 0000 | OEM: 525-52185 | CLAMP | 1 | ||
| 25 | 0010 | OEM: 525-10-805559 | SCREW (.375-16 x .875) Stainless Steel | 1 | ||
| 26 | 0027 | OEM: 525-27-344863, Sierra: 676-18-0874 | GASKET | 1 | [3] | |
| 27 | 0033 | 816336 | SPARK PLUG | 6 | ||
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Alternate part numbers:
850484TService Part
850484T 3Kit
[2] - Alternate part numbers:
850484T 3Kit
850485Service Part
[3] - COMPONENT OF ENGINE OVERHAUL GASKET SET 807756A96
