4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)

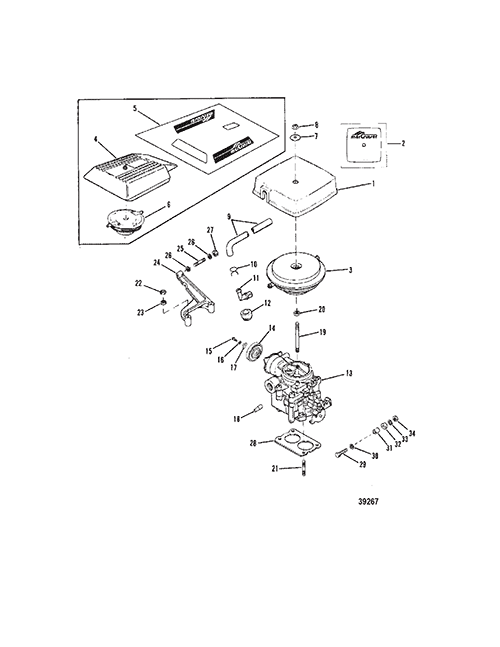

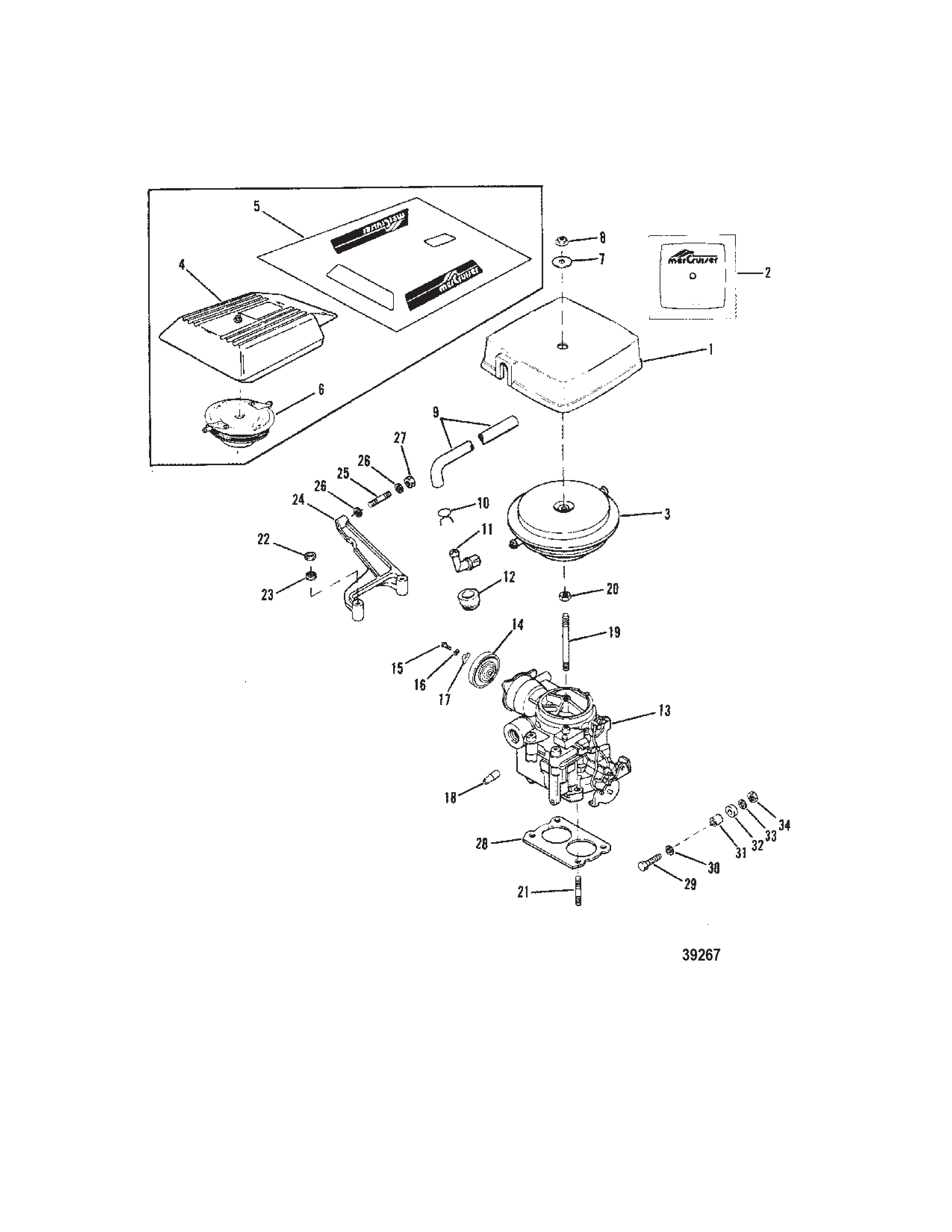

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 15414A7 | COVER CARBURETOR | DESIGN I | 1 | |
| 2 | 0037 | 1372320 | DECAL CARBURETOR COVER | 175 ALPHA ONE - DESIGN I | 1 | |
| 2 | 0037 | 1372329 | DECAL CARBURETOR COVER | 4.3L - DESIGN I | 1 | |
| 3 | 0000 | 86271A1 | FLAME ARRESTOR CARBURETOR | DESIGN I | 1 | |
| 4 | 0000 | OEM: 525-18484A3 | COVER CARBURETOR | DESIGN II | 1 | |
| 5 | 0037 | 812776A1 | DECAL SET COVER | DESIGN II | 1 | |
| 6 | 0000 | 44196T1 | FLAME ARRESTOR | DESIGN II | 1 | |
| 7 | 0012 | OEM: 525-12-86400 | WASHER SEALING | 1 | ||
| 8 | 0011 | 20586 | NUT (.250-28) SILENCER ADAPTER | 1 | ||
| 9 | 0032 | 9331512 | HOSE (11-1/4") | 2 | ||
| 9 | 0032 | 1589418 | HOSE Breather (CORRUGATED) | 2 | ||
| 10 | 0054 | 53101 | CLAMP VENT HOSE | 4 | ||
| 11 | 0000 | 97850 | ELBOW 90 Degree Breather - VENT HOSE | OPT | ||
| 11 | 0000 | 47957 | CONNECTOR VENT HOSE (STRAIGHT) | OPT | ||
| 12 | 0025 | 52188 | GROMMET ROCKER COVER | 2 | ||
| 13 | 3304 | 9565A1 | CARBURETOR ASSEMBLY (MERCARB) | 1 | [1] | |
| 14 | 0000 | 70125A1 | COVER Choke | 1 | ||
| 15 | 0010 | 33047 | SCREW CHOKE COVER | 3 | ||
| 16 | 0013 | OEM: 525-13-26995 | LOCKWASHER (#8) Stainless Steel COVER SCREW | 1 | ||
| 17 | 0054 | 33036 | RETAINER COVER SCREW | 3 | ||
| 18 | 0022 | OEM: 525-22-54090 | ELBOW CARBURETOR | 1 | ||
| 19 | 0016 | OEM: 525-16-97012 | STUD FLAME ARRESTOR | 1 | ||
| 20 | 0011 | 28941 | NUT JAM - FLAME ARRESTOR | 1 | ||
| 21 | 0016 | OEM: 525-16-70236, GLM: 700-22482 | STUD (.312 x 1.500) CARBURETOR | 2 | ||
| 21 | 0016 | OEM: 525-16-70237 | STUD (.312-18/.312-24 x 2.620) CARBURETOR | 2 | ||
| 22 | 0011 | 25594 | NUT (.9375-24) CARBURETOR STUD | 4 | ||
| 23 | 0012 | OEM: 525-12-20084, GLM: 700-21664 | WASHER (.328 x .562 x .062) CARBURETOR STUD | 4 | ||
| 24 | 0000 | 77456A2 | BRACKET THROTTLE CABLE | 1 | ||
| 25 | 0016 | OEM: 525-16-38525 | STUD THROTTLE CABLE | 1 | ||
| 26 | 0012 | OEM: 525-12-24664 | WASHER (M4 x 20) THROTTLE CABLE STUD | 2 | ||
| 27 | 0011 | 20586 | NUT (.250-28) THROTTLE CABLE STUD | 1 | ||
| 28 | 0027 | 701431 | GASKET CARBURETOR TO INTAKE MANIFOLD | 1 | [2] | |
| 29 | 0010 | 98509 | SCREW THROTTLE CABLE TO CARBURETOR | 1 | ||
| 30 | 0012 | OEM: 525-12-56681 | WASHER (.203 x .500 x .032) THROTTLE CABLE SCREW | 1 | ||
| 31 | 0023 | 57938 | BUSHING THROTTLE CABLE SCREW | 1 | ||
| 32 | 0023 | OEM: 525-23-34948 | SPACER THROTTLE CABLE SCREW | 1 | ||
| 33 | 0012 | 20128 | WASHER THROTTLE CABLE SCREW | 1 | ||
| 34 | 0011 | 20190 | NUT (#10-32) THROTTLE CABLE SCREW | 1 | ||
| - | 0027 | OEM: 525-27-11977A92, Sierra: 676-18-4388, GLM: 700-39650 | GASKET SET | 1 |
PART NOTES:
[1] - Alternate part numbers:
804618R02Reman
9565A 1QS
[2] - COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
