4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - WIRING HARNESS AND ELECTRICAL COMPONENTS

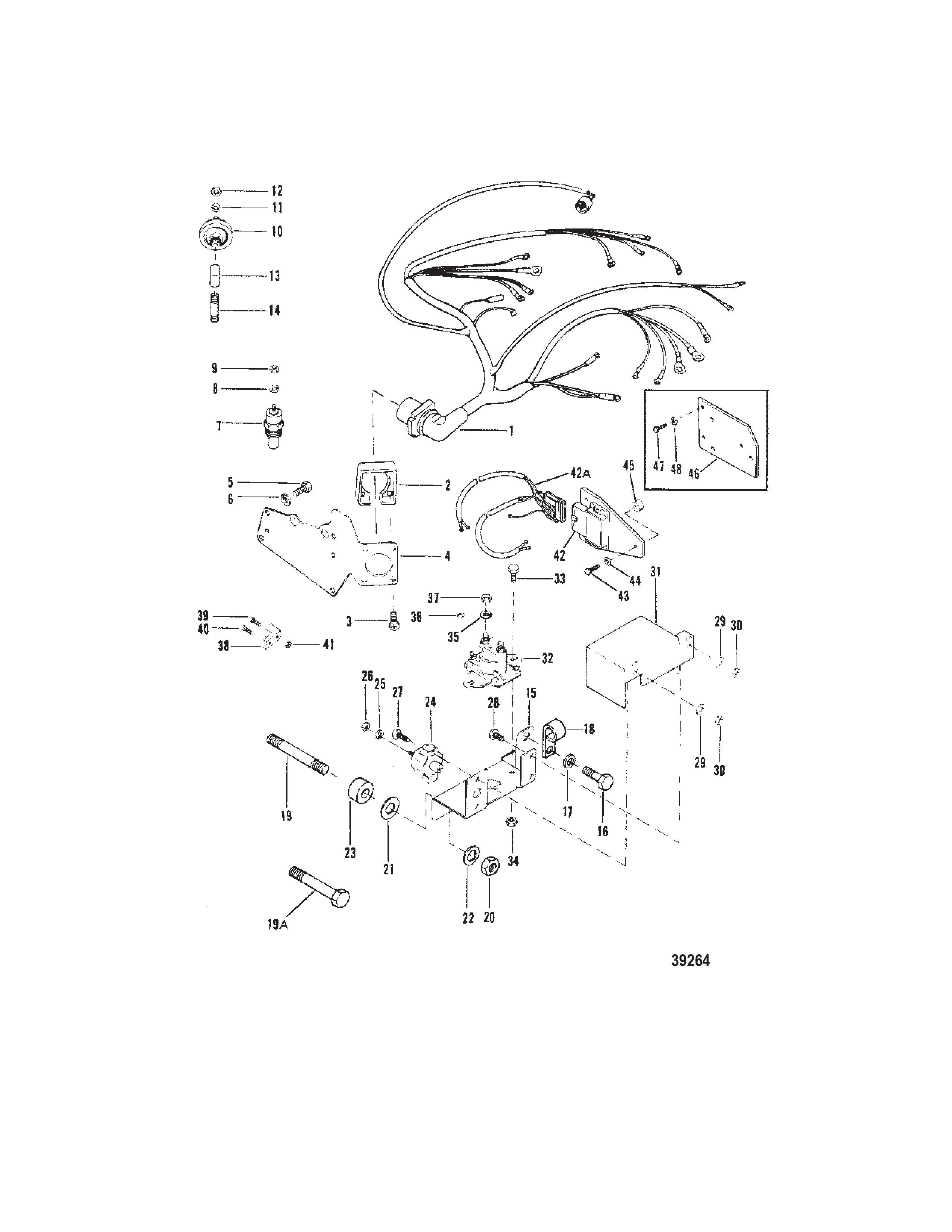

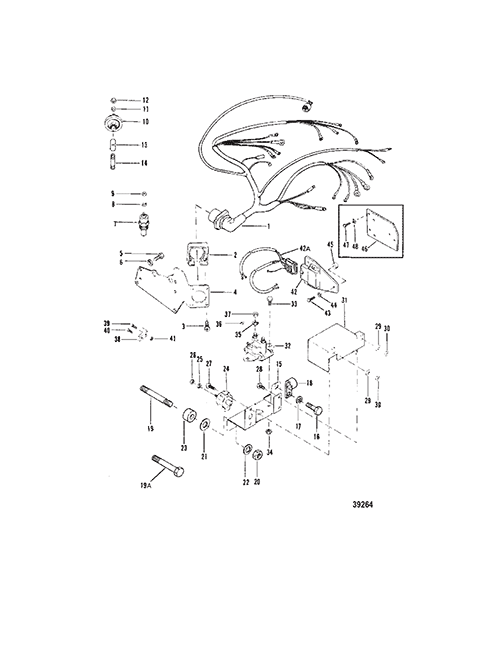

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0084 99510A11 HARNESS ASSEMBLY   1
2 0000 26079 PLATE WIRING HARNESS METAL 1
2 0000 OEM: 525-26079A2 PLATE KIT Wire Harness Mount PLASTIC 1
3 0010 OEM: 525-10-15001 SCREW (#8-16 x .875) Use with Plastic Plate 4
3 0010 34696 SCREW (#8-32 x .750) Use with Metal Plate 4
4 0000 98493A2 BRACKET MOUNTING   1
5 0010 OEM: 525-10-49668 SCREW (.250-20 x .750) MOUNTING BRACKET   3
6 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel MOUNTING BRACKET   3
7 0000 97257A1 SENDER ASSEMBLY Water Temperature (3/8-18)   1
7 0000 OEM: 525-97258A1, Sierra: 676-18-5898 SENDER ASSEMBLY (1/2-14)   1
7 0000 49734A1 SENDER ASSEMBLY Water Temperature (DUAL)   OPT
8 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   1
9 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   1
10 0000 90806 SENDER   1
10 0000 37293 SENDER ASSEMBLY Oil Pressure (DUAL)   OPT
11 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   1
12 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   1
13 0022 46932 ELBOW OIL PRESSURE SENDER   1
14 0022 42554 NIPPLE OIL PRESSURE SENDER   1
15 0000 41170T BRACKET MOUNTING   1
16 0010 OEM: 525-10-98260 SCREW (.375-16 x .620) MOUNTING BRACKET   1
17 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375) MOUNTING BRACKET SCREW   1
18 0054 OEM: 525-54-92850 CLAMP BRACKET SCREW   1
19 0016 OEM: 525-16-56826, GLM: 700-22484 STUD (1.5 In.) MOUNTING BRACKET OLD DESIGN 1
19A 0010 OEM: 525-10-37612, GLM: 700-21755 SCREW (.375-16 x 1.250) MOUNTING BRACKET NEW DESIGN 1
20 0011 24883 NUT MOUNTING BRACKET STUD OLD DESIGN 1
21 0012 OEM: 525-12-20572 WASHER (.390 x .750 x .093) MOUNTING BRACKET STUD   1
22 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375) MOUNTING BRACKET STUD   1
23 0023 OEM: 525-23-57369 SPACER MOUNTING BRACKET STUD   1
24 0088 11178 BREAKER Circuit - 50 Ampere   1
25 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel CIRCUIT BREAKER TERMINAL   2
26 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel CIRCUIT BREAKER TERMINAL   2
27 0010 45862 SCREW (#10-32 x .875) CIRCUIT BREAKER   2
28 0010 45218 SCREW (#10-32 x .380) INSULATOR   1
29 0012 OEM: 525-12-56681 WASHER (.203 x .500 x .032) CIRCUIT BREAKER SCREW   2
30 0011 OEM: 525-11-46438 NUT (#10-32) INSULATOR SCREW   3
31 0085 OEM: 525-85-96819T INSULATOR CIRCUIT BREAKER   1
32 0089 96054 SOLENOID ASSEMBLY Starter   1
33 0010 47910 SCREW (1/4-28 x 5/8) STARTER SOLENOID (5/8")   2
34 0011 20088 NUT STARTER SOLENOID SCREW   2
35 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel STARTER SOLENOID TERMINAL   2
36 0011 OEM: 525-11-26419 NUT (#8-32) Brass   2
37 0011 OEM: 525-11-94330 NUT (.250-20) Brass   2
38 0086 OEM: 525-86-45915 TERMINAL BLOCK OLD DESIGN 1
39 0010 OEM: 525-10-62568 SCREW (#10-16 x .375) TERMINAL BLOCK LEADS OLD DESIGN 1
40 0010 22028 SCREW (#10-32 x .50) TERMINAL BLOCK OLD DESIGN 1
41 0011 OEM: 525-11-46438 NUT (#10-32) TERMINAL BLOCK SCREW OLD DESIGN 1
42 0000 15247A1 IGNITION AMPLIFIER   1
42A 0084 15275A1 HARNESS ASSEMBLY   1
43 0010 OEM: 525-10-76630 SCREW (.250-20 x 1.00) AMPLIFIER   3
44 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel AMPLIFIER SCREW   3
45 0023 92152 SPACER (.27 x .75 x .38) AMPLIFIER SCREW   3
46 0000 125001 PLATE IGNITION AMPLIFIER OLD DESIGN 1
47 0010 OEM: 525-10-76596 SCREW (.250-20 x 1.250) AMPLIFIER PLATE OLD DESIGN 3
48 0013 OEM: 525-13-26992 LOCKWASHER (.250) Stainless Steel AMPLIFIER PLATE SCREW OLD DESIGN 3
- 0084 11149A5 HARNESS ASSEMBLY Adapter Used to adapt ring terminal and bullet connector wiring harnesses 1
