4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - SHIFT BRACKET OLD DESIGN
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS

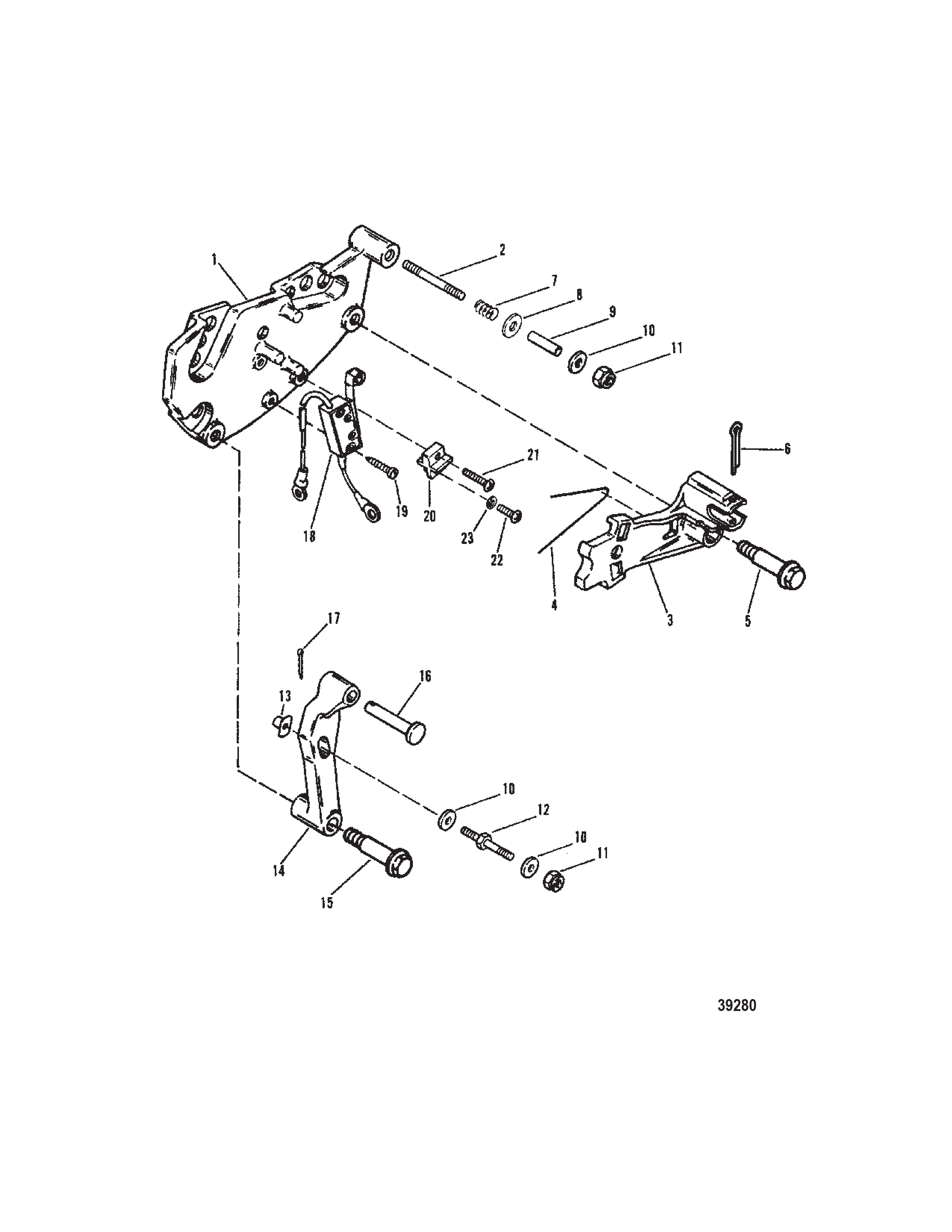

Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
---|---|---|---|---|---|---|
1 | 0000 | 99237A10 | BRACKET ASSEMBLY | 1 | ||
2 | 0016 | 98798 | STUD SHIFT CABLE | 1 | ||
3 | 0000 | 13051A4 | LEVER ASSEMBLY Actuating | 1 | ||
4 | 0024 | 45599 | SPRING ACTUATING LEVER | 1 | ||
5 | 0010 | 13743 | SCREW (.312-18 x 1.843) Shoulder - LEVER | 1 | ||
6 | 0018 | 32857 | COTTER PIN SHIFT CABLE RETAINING | 1 | ||
7 | 0024 | OEM: 525-24-98880 | SPRING SHIFT CABLE STUD | 1 | ||
8 | 0012 | OEM: 525-12-56720 | WASHER (.330 x .750 x .060) Stainless Steel SHIFT BRACKET STUD | 1 | ||
9 | 0023 | 98820 | SPACER SHIFT CABLE STUD | 1 | ||
10 | 0012 | OEM: 525-12-35462 | WASHER (.2656 x .625 x .0625) Stainless Steel SHIFT CABLE STUD | 3 | ||
11 | 0011 | 13438 | NUT (.250-28) SHIFT CABLE STUD | 2 | ||
12 | 0016 | 96112 | STUD (.250-28 x 2.00) | 1 | ||
13 | 0011 | OEM: 525-11-63341 | TEE NUT SHIFT CABLE STUD | 1 | ||
14 | 0000 | 13898A3 | LEVER ASSEMBLY Shift | 1 | ||
15 | 0010 | 13743 | SCREW (.312-18 x 1.843) Shoulder - SHIFT LEVER | 1 | ||
16 | 0017 | OEM: 525-17-68402 | PIN (.250 x 1.13) SHIFT LEVER | 1 | ||
17 | 0018 | 21071 | COTTER PIN SHIFT LEVER | 1 | ||
18 | 0000 | 39670A28 | SWITCH ASSEMBLY CUT-OUT | 1 | ||
19 | 0010 | 30902 | SCREW (#6-32 x .750) SWITCH TO SHIFT BRACKET | 2 | ||
20 | 0086 | 66986 | TERMINAL BLOCK | 1 | ||
21 | 0010 | OEM: 525-10-96113 | SCREW (#10-32 x .880) Stainless Steel TERMINAL BLOCK | 1 | ||
22 | 0010 | OEM: 525-10-73287 | SCREW (#10-32 x .380) TERMINAL BLOCK | 1 | ||
23 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel TERMINAL BLOCK SCREW | 2 |
