4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - ENGINE MOUNTING OLD DESIGN

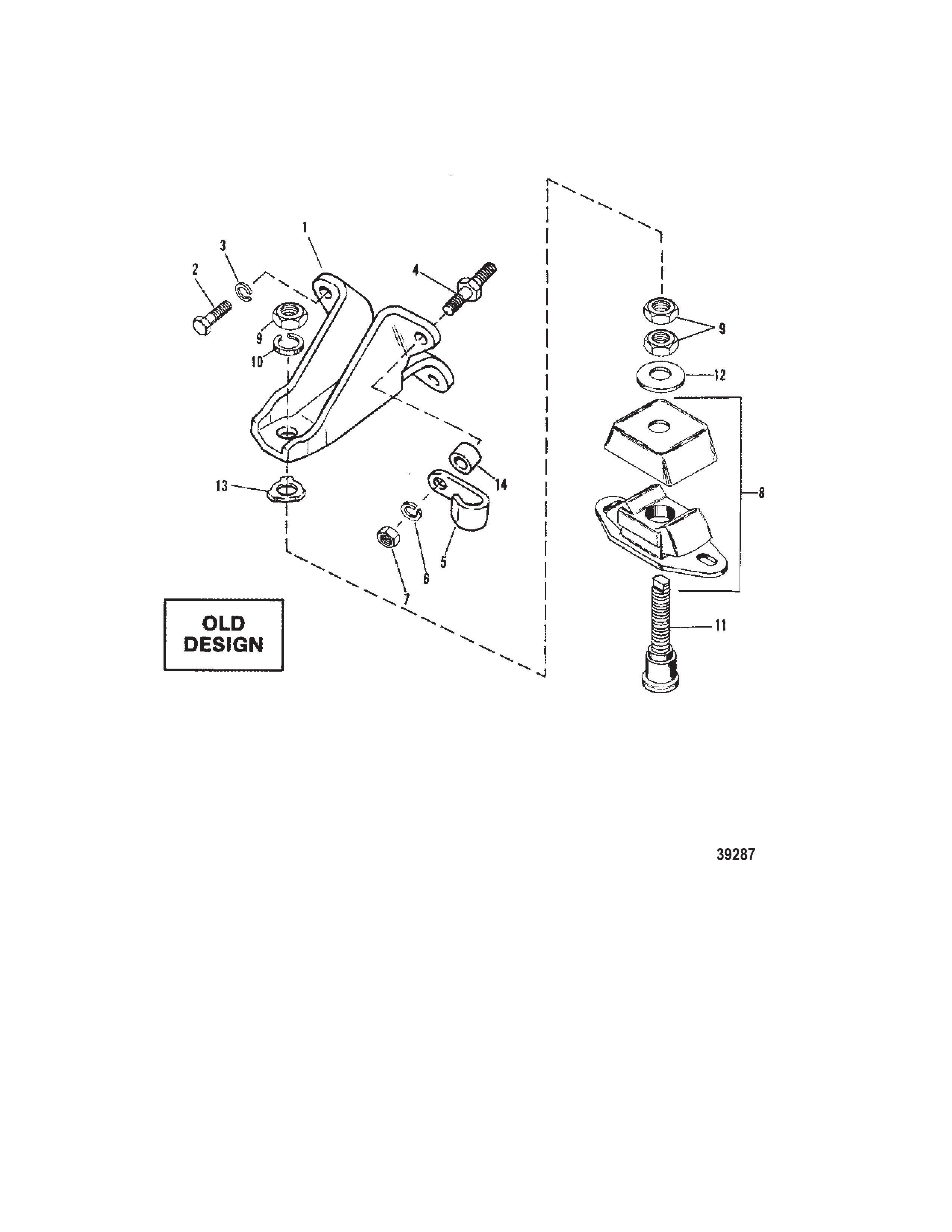

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 44364A1 | BRACKET ASSEMBLY MOUNTING - ENGINE (FRONT) | 2 | ||
| 2 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 5 | ||
| 3 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) MOUNTING BRACKET SCREW | 5 | ||
| 3 | 0012 | OEM: 525-12-46132 | WASHER MOUNTING BRACKET SCREW | 1 | ||
| 4 | 0016 | OEM: 525-16-64066 | STUD (.375-16 x 2.750) Special MOUNTING BRACKET TO ENGINE | STARBOARD | 1 | |
| 5 | 0054 | OEM: 525-54-92850 | CLAMP WIRING HARNESS | STARBOARD | 1 | |
| 6 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) MOUNTING BRACKET STUD | STARBOARD | 2 | |
| 7 | 0011 | OEM: 525-11-32219 | NUT (.375-16) MOUNTING BRACKET STUD | STARBOARD | 1 | |
| 8 | 0000 | 98323A6 | BASE ASSEMBLY ENGINE MOUNT | 2 | ||
| 9 | 0011 | OEM: 525-11-20739 | NUT (.750-16) JAM - ENGINE MOUNT BASE | 6 | ||
| 10 | 0013 | OEM: 525-13-68102 | LOCKWASHER (.750) MOUNTING BRACKET | 2 | ||
| 11 | 0016 | 41012 | STUD ENGINE MOUNTING | 2 | ||
| 12 | 0012 | 41150 | WASHER SUPPORT | 2 | ||
| 13 | 0014 | OEM: 525-14-12657 | TAB WASHER | 2 | ||
| 14 | 0023 | OEM: 525-23-57369 | SPACER MOUNTING STUD | 1 |
