4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - DISTRIBUTOR AND IGNITION COMPONENTS

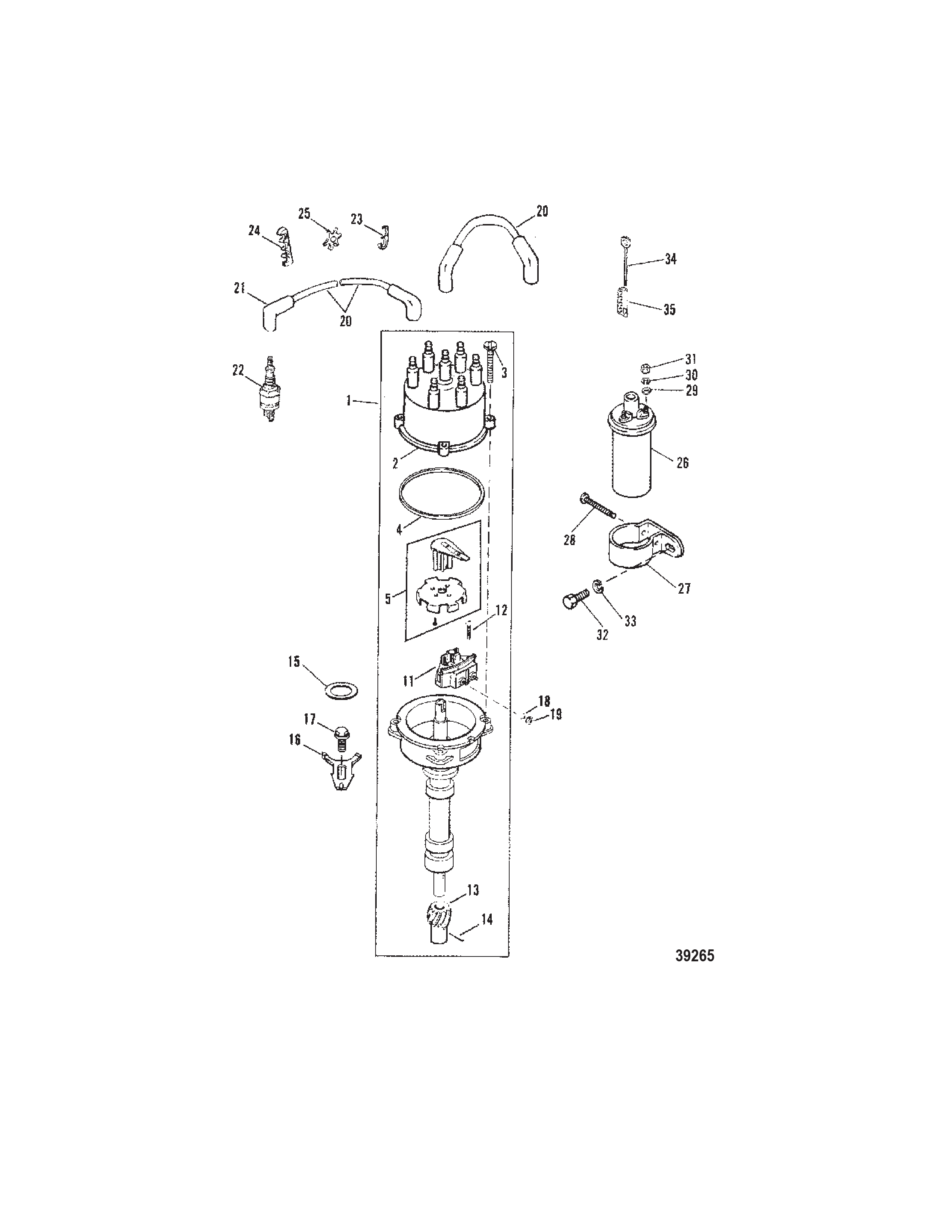

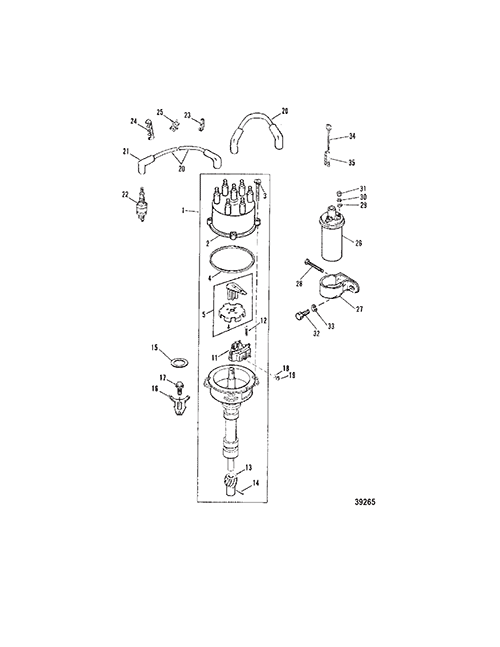

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 90747A15 | DISTRIBUTOR ASSEMBLY | 1 | ||
| 2 | 0000 | 13753A2 | CAP DISTRIBUTOR | 1 | [1] | |
| 3 | 0010 | OEM: 525-10-90926, GLM: 700-22305 | SCREW (#10-32 x .810) DISTRIBUTOR CAP | 4 | ||
| 4 | 0027 | 982421 | GASKET DISTRIBUTOR CAP | 1 | ||
| 5 | 0000 | OEM: 530-13524A6, Sierra: 676-18-5432, GLM: 700-72890 | ROTOR/SENSOR WHEEL | 1 | [2] | |
| 11 | 0087 | 91019A3 | SENSOR ASSEMBLY | 1 | ||
| 12 | 0010 | OEM: 525-10-66686, GLM: 700-22311 | SCREW (#10-32 x 1.00) SENSOR | 1 | ||
| 12 | 0010 | OEM: 525-10-72202, GLM: 700-22312 | SCREW (#10-32 x 1.25) SENSOR | 1 | ||
| 13 | 0043 | 8137761 | GEAR DRIVE | 1 | ||
| 14 | 0017 | OEM: 525-17-47617, GLM: 700-22195 | PIN DRIVE GEAR | 1 | ||
| 15 | 0027 | OEM: 525-27-344863, Sierra: 676-18-0874 | GASKET DISTRIBUTOR | 1 | [3] | |
| 16 | 0000 | OEM: 525-52185 | CLAMP DISTRIBUTOR TO INTAKE MANIFOLD | 1 | ||
| 17 | 0010 | OEM: 525-10-11976 | SCREW (.375-16 x 1.00) DISTRIBUTOR CLAMP | 1 | ||
| 18 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel DISTRIBUTOR TERMINAL | 2 | ||
| 19 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel DISTRIBUTOR TERMINAL | 2 | ||
| 20 | 0084 | 813720A11 | SPARK PLUG WIRE KIT | 1 | ||
| 21 | 0085 | OEM: 525-85-63709A1 | BOOT/TERMINAL KIT SPARK PLUG | 8 | ||
| 22 | 0033 | 59571 | SPARK PLUG | 8 | [4] | |
| 23 | 0000 | OEM: 525-54676 | RETAINER Two Wire HIGH TENSION LEADS | OLD DESIGN | 2 | |
| 24 | 0000 | OEM: 525-32783 | RETAINER Three Wire HIGH TENSION LEADS | OLD DESIGN | 4 | |
| 25 | 0000 | OEM: 525-32784 | RETAINER Four Wire HIGH TENSION LEADS | OLD DESIGN | 2 | |
| 26 | 0392 | 7803A4 | COIL IGNITION | 1 | ||
| 27 | 0000 | 65970 | BRACKET IGNITION COIL | 1 | ||
| 28 | 0010 | 41408 | SCREW (#10-32 x 1.50) BRACKET | 1 | ||
| 29 | 0012 | OEM: 525-12-30164 | WASHER (.192 x .375 x .0312) Stainless Steel IGNITION COIL TERMINAL | 2 | ||
| 30 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel IGNITION COIL TERMINAL | 2 | ||
| 31 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel IGNITION COIL TERMINAL | 2 | ||
| 32 | 0010 | OEM: 525-10-98260 | SCREW (.375-16 x .620) IGNITION COIL | 1 | ||
| 33 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) IGNITION COIL SCREW | 1 | ||
| 34 | 0016 | OEM: 525-16-90096A1 | STUD ASSEMBLY (#10-32 x Special) | NEW DESIGN | 2 | |
| 35 | 0054 | OEM: 525-54-72821 | RETAINER WIRE | NEW DESIGN | 2 | |
| - | 0027 | OEM: 525-27-11977A92, Sierra: 676-18-4388, GLM: 700-39650 | GASKET SET | 1 |
PART NOTES:
[1] - Alternate part numbers:
13753A 2Service Part
815407Q 5QS Kit
815407T 5MPP Kit
[2] - Alternate part numbers:
13524A 6Service Part
13524Q06QS
815407Q 5QS Kit
815407T 5MPP Kit
[3] - COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
[4] - Alternate part numbers:
59571QS
59571BBulk Pack
