4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - STARTER MOTOR AND ALTERNATOR

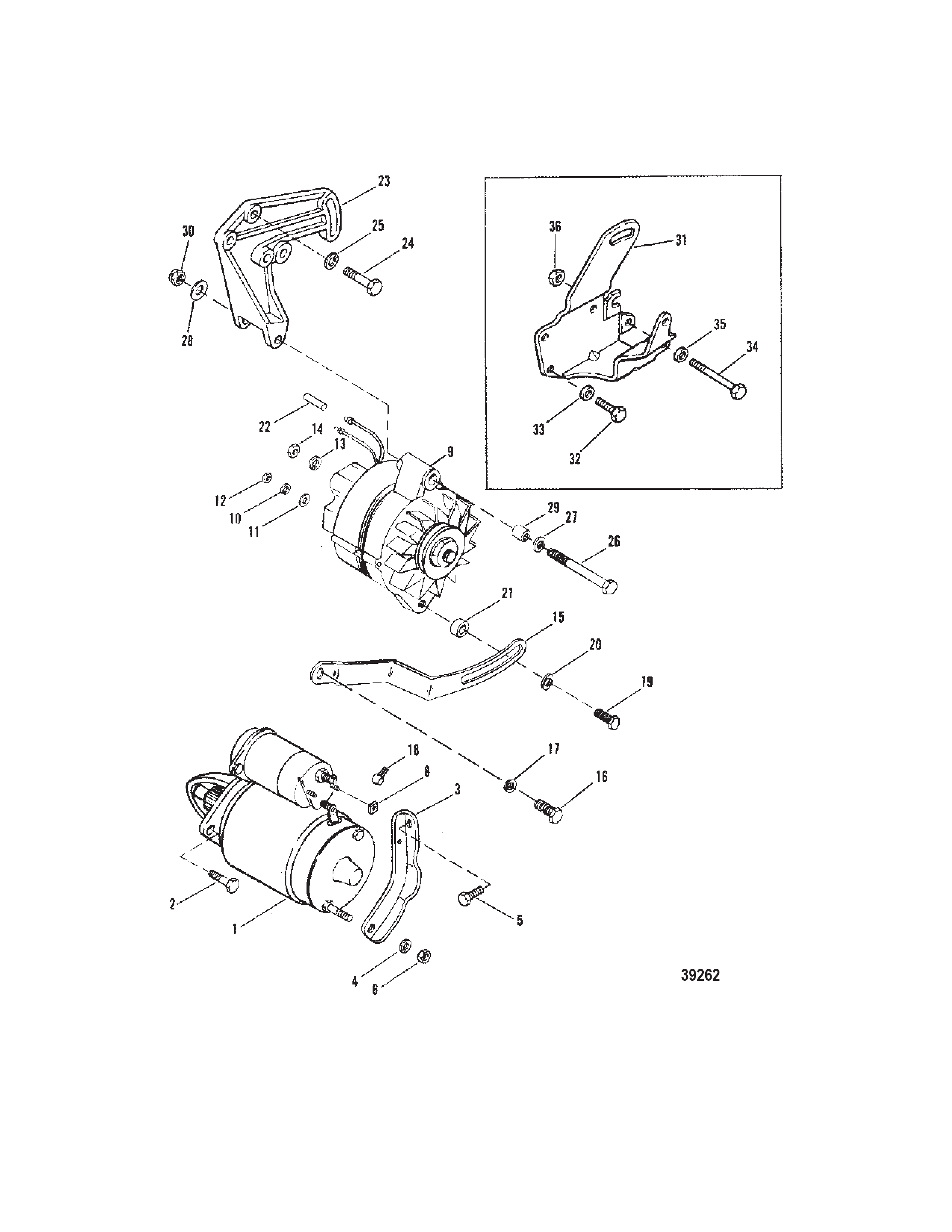

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty |
|---|---|---|---|---|---|
| 1 | 0050 | 12177A2 | STARTER MOTOR ASSEMBLY | USE WITH STARTER BRACE | 1 |
| 1 | 0050 | 812428A3 | STARTER MOTOR ASSEMBLY | USE WITHOUT STARTER BRACE | 1 |
| 2 | 0010 | 94435 | BOLT (.375-16 x 4.600) | USE WITH STARTER BRACE | 2 |
| 2 | 0010 | 813642 | SCREW | USE WITHOUT STARTER BRACE | 2 |
| 3 | 0000 | 12404 | BRACE | USE WITH STARTER BRACE | 1 |
| 4 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel | USE WITH STARTER BRACE | 2 |
| 5 | 0010 | OEM: 525-10-35765A1 | SCREW AND LOCKWASHER (.312- 18 x .625) | USE WITH STARTER BRACE | 1 |
| 6 | 0011 | 15874 | NUT (M10) BATTERY TERMINAL | 1 | |
| 6 | 0011 | 72008 | NUT (.250-20) BATTERY TERMINAL | 1 | |
| 8 | 0011 | OEM: 525-11-26419 | NUT (#8-32) Brass SOLENOID SWITCH TERMINAL | 2 | |
| 8 | 0011 | OEM: 525-11-400211 | NUT (M5) Stainless Steel SOLENOID SWITCH TERMINAL | 2 | |
| 9 | 0000 | 92497A3 | ALTERNATOR ASSEMBLY (55 Ampere) (55 AMP) | 1 | |
| 10 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel ALTERNATOR TERMINAL | 1 | |
| 11 | 0012 | OEM: 525-12-96457 | WASHER Phenolic (.27 x .81 x .062) ALTERNATOR TERMINAL | 1 | |
| 12 | 0011 | OEM: 525-11-79989 | NUT (#10-24) Stainless Steel ALTERNATOR TERMINAL | 1 | |
| 13 | 0013 | OEM: 525-13-21272 | LOCKWASHER (.250) ALTERNATOR TERMINAL | 1 | |
| 14 | 0011 | OEM: 525-11-64015 | NUT (.250-20) ALTERNATOR TERMINAL | 1 | |
| 15 | 0000 | 85013 | BRACE ALTERNATOR ADJUSTING | 1 | |
| 16 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) ALTERNATOR BRACE | 1 | |
| 17 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) ALTERNATOR BRACE SCREW | 1 | |
| 18 | 0085 | 79695 | BOOT Insulator - Black STARTER TERMINAL | 1 | |
| 19 | 0010 | OEM: 525-10-29198 | SCREW AND LOCKWASHER (.312- 18 x .875) ALTERNATOR BRACE | 1 | |
| 20 | 0012 | OEM: 525-12-26168 | WASHER ALTERNATOR BRACE SCREW | 1 | |
| 21 | 0023 | OEM: 525-23-52095 | SPACER ALTERNATOR BRACE SCREW | (EARLY MODELS) | 1 |
| 22 | 0000 | OEM: 525-5790811 | SLEEVE (10.00 Inches Bulk) ALTERNATOR LEADS | 2 | |
| 23 | 0000 | 87115A1 | BRACKET ALTERNATOR/PUMP | CAST MOUNTING BRACKET | 1 |
| 24 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) ALTERNATOR BRACKET | CAST MOUNTING BRACKET | 2 |
| 24 | 0010 | OEM: 525-10-34354, GLM: 700-22447 | SCREW (.375-16 x 1.50) ALTERNATOR BRACKET | CAST MOUNTING BRACKET | 1 |
| 25 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) ALTERNATOR BRACKET SCREW | CAST MOUNTING BRACKET | 3 |
| 26 | 0010 | OEM: 525-10-48308 | SCREW (.375-24 x 3.750) ALTERNATOR | CAST MOUNTING BRACKET | 1 |
| 27 | 0012 | OEM: 525-12-20553, GLM: 700-21675 | WASHER (.406 x .734 x .063) ALTERNATOR SCREW | CAST MOUNTING BRACKET | 1 |
| 28 | 0012 | OEM: 525-12-34714 | WASHER ALTERNATOR SCREW (13/16 O.D.) | CAST MOUNTING BRACKET | 1 |
| 29 | 0023 | 33186 | BUSHING ALTERNATOR SCREW | CAST MOUNTING BRACKET | 1 |
| 30 | 0011 | OEM: 525-11-23161 | NUT (.375-24) ALTERNATOR SCREW | CAST MOUNTING BRACKET | 1 |
| 31 | 0000 | 15083T | BRACKET ALTERNATOR/PUMP | STAMPED MOUNTING BRACKET | 1 |
| 32 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) ALTERNATOR/PUMP BRACKET | STAMPED MOUNTING BRACKET | 2 |
| 33 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) BRACKET SCREW | STAMPED MOUNTING BRACKET | 2 |
| 32 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) ALTERNATOR/PUMP BRACKET | STAMPED MOUNTING BRACKET | 1 |
| 33 | 0012 | OEM: 525-12-46132 | WASHER BRACKET SCREW | STAMPED MOUNTING BRACKET | 1 |
| 34 | 0010 | OEM: 525-10-56743 | SCREW (.375-24 x 3.125) ALTERNATOR | STAMPED MOUNTING BRACKET | 1 |
| 35 | 0012 | OEM: 525-12-34714 | WASHER ALTERNATIVE SCREW | STAMPED MOUNTING BRACKET | 1 |
| 36 | 0011 | OEM: 525-11-23161 | NUT (.375-24) ALTERNATOR SCREW | STAMPED MOUNTING BRACKET | 1 |
PART NOTES:
[1] - Alternate part numbers:
817119R01Reman
92497A 3QS
