4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Closed Cooling System (Easy Drain)

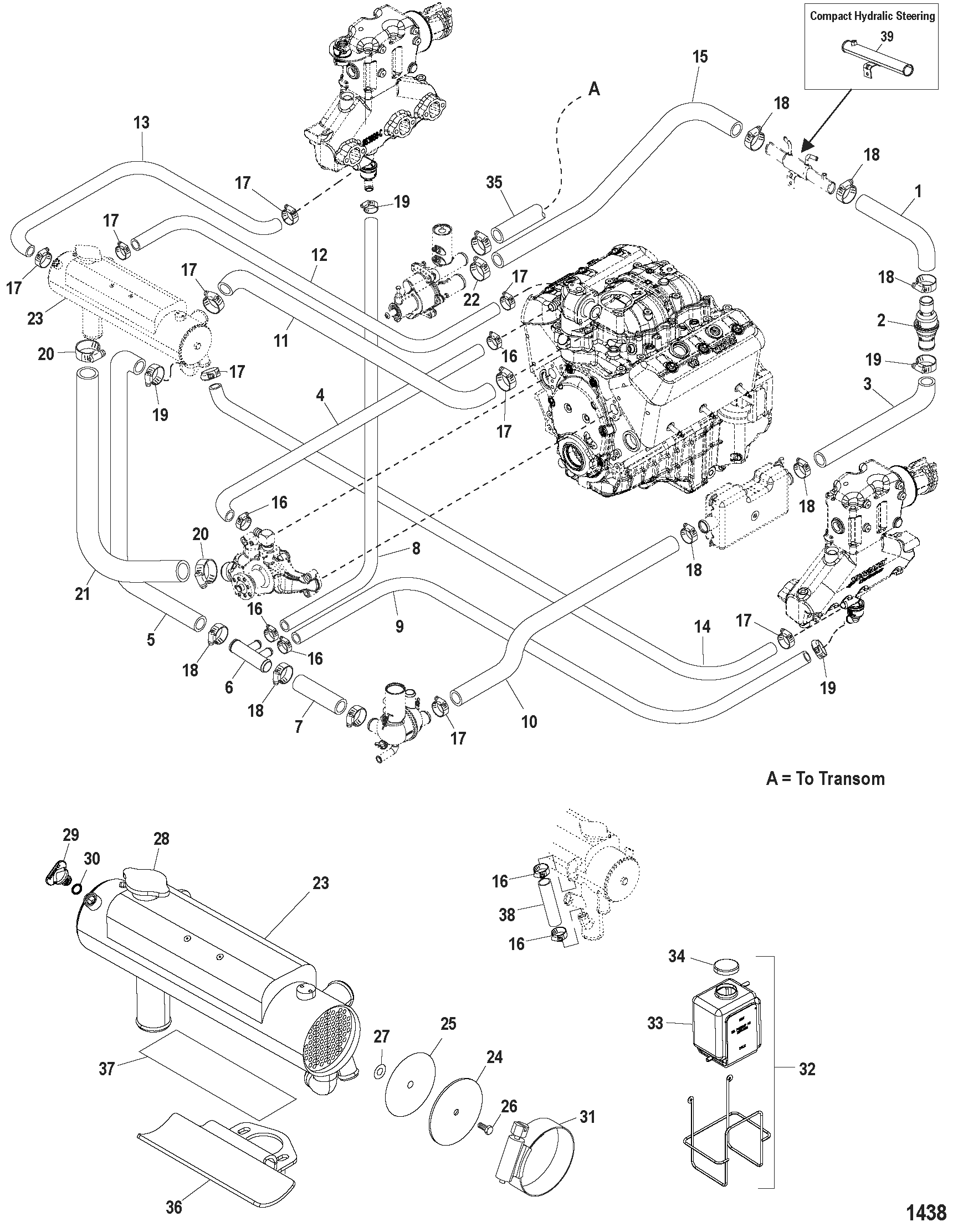

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | OEM: 525-32-863489 | HOSE Power Steering Cooler To Check Valve | 1 | [1] | |
| 2 | 0021 | OEM: 525-21-864206A1 | CHECK VALVE ASSEMBLY | 1 | [1] | |
| 3 | 0032 | OEM: 525-32-863811 | HOSE Check Valve To Fuel Cooler | 1 | [1] | |
| 4 | 0032 | OEM: 525-32-8638871 | HOSE Intake Bypass To Circulating Pump | 1 | [1] | |
| 5 | 0032 | OEM: 525-32-863793 | HOSE Distribution Fitting To Heat Exchanger | 1 | [1] | |
| 6 | 0022 | OEM: 525-22-863799 | FITTING Distribution | 1 | [1] | |
| 7 | 0032 | OEM: 525-32-863490 | HOSE Distribution Fitting To Accumulator Housing | 1 | [1] | |
| 8 | 0032 | 4285069 | HOSE (44.00 Inches Bulk) | (Cut to 42.00 Inch Length) | 1 | |
| 9 | 0032 | 864258 | HOSE Port Manifold Drain | 1 | [1] | |
| 10 | 0032 | OEM: 525-32-863781 | HOSE Fuel Cooler To Accumulator Housing | (With Power Steering) | 1 | [1] |
| 10 | 0032 | OEM: 525-32-863937 | HOSE Fuel Cooler To Accumulator Housing | (With Out Power Steering) | 1 | [1] |
| 11 | 0032 | OEM: 525-32-863885 | HOSE Heat Exchanger To Thermostat Housing | 1 | [1] | |
| 12 | 0032 | OEM: 525-32-863886 | HOSE Heat Exchanger To Thermostat Housing | 1 | [1] | |
| 13 | 0032 | 862150 | HOSE Heat Exchange To Exhaust Manifold. | (Starboard) | 1 | [1] |
| 14 | 0032 | OEM: 525-32-807141 | HOSE Heat Exchanger To Manifold | (Port) | 1 | [1] |
| 15 | 0032 | OEM: 525-32-863611 | HOSE Sea Pump To Power Steering Cooler | (Cut to Length) | 1 | |
| 16 | 0054 | OEM: 525-54-815504212 | CLAMP Worm Gear Hose | 1 | ||
| 17 | 0054 | OEM: 525-54-815504216 | CLAMP Worm Gear (1.56 Diameter) Hose | 1 | ||
| 18 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) Hose | 1 | ||
| 19 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear Hose | 1 | ||
| 20 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) Hose | 1 | ||
| 21 | 0032 | OEM: 525-32-861059 | HOSE Heat Exchanger to Circulating Pump | 1 | ||
| 22 | 0054 | OEM: 525-54-815504220 | CLAMP Worm Gear Hose | 1 | ||
| 23 | 0000 | 863709A1 | HEAT EXCHANGER Closed Cooling | 1 | [1] | |
| 24 | 0000 | 814875 | COVER Heat Exchanger End | 2 | ||
| 25 | 0027 | 803644 | GASKET End Cover | 2 | ||
| 26 | 0010 | OEM: 525-10-814877 | BOLT | 2 | ||
| 27 | 0025 | 814878 | O-RING Special | 2 | ||
| 28 | 0036 | OEM: 525-36-8148791 | CAP Pressure | 1 | ||
| 29 | 0022 | 806608A1 | PLUG KIT (.500-13) Royal Blue | 1 | [2] | |
| 30 | 0025 | 32509 | O-RING (.489 x .070) | 1 | ||
| 31 | 0054 | OEM: 525-54-815504388 | CLAMP Worm Gear Heat Exchanger | 1 | ||
| 32 | 0000 | OEM: 525-71587A10 | RECOVERY KIT Coolant | 1 | ||
| NS | 0032 | OEM: 525-32-774572 | HOSE (48.00 Inches Bulk) | 1 | ||
| 33 | 0000 | OEM: 525-71587A11 | BOTTLE Plastic Coolant Recovery Kit | 1 | ||
| 34 | 0000 | OEM: 525-72058 | CAP Coolant Recovery Bottle | 1 | ||
| 35 | 0032 | 1743579 | HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick Up | 1 | ||
| 36 | 0000 | 863680A1 | BRACKET Cooler | 1 | ||
| 37 | 0000 | OEM: 525-18431 | PAD Heat Exchanger | 1 | ||
| 38 | 0032 | 4285069 | HOSE (44.00 Inches Bulk) | (Cut To 6 Inch Length) | 1 | |
| 39 | 0000 | OEM: 525-863841T | TUBE Water (Brass) | (Compact Hydralic Steering) | 1 |
