4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Exhaust Manifold And Elbow

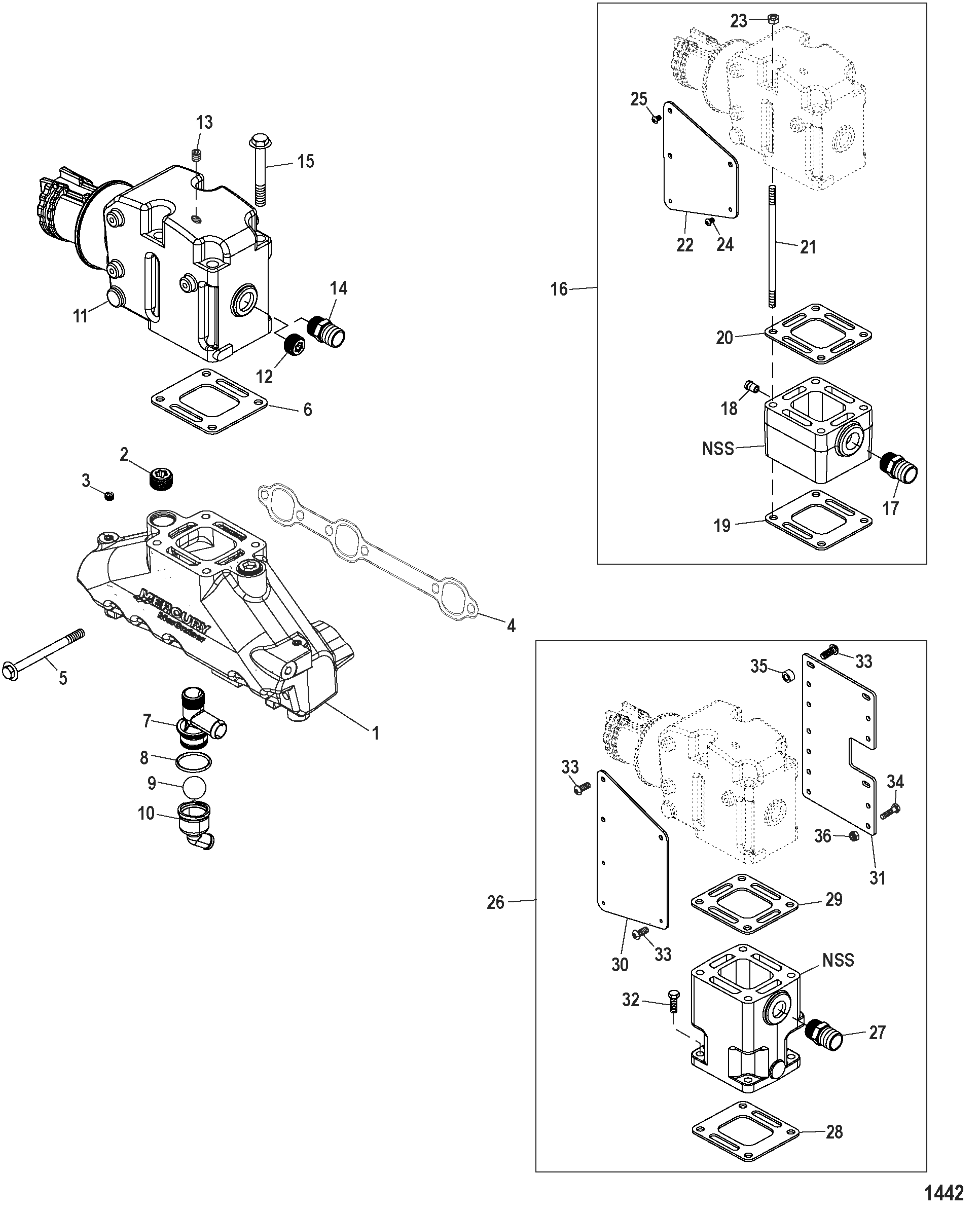

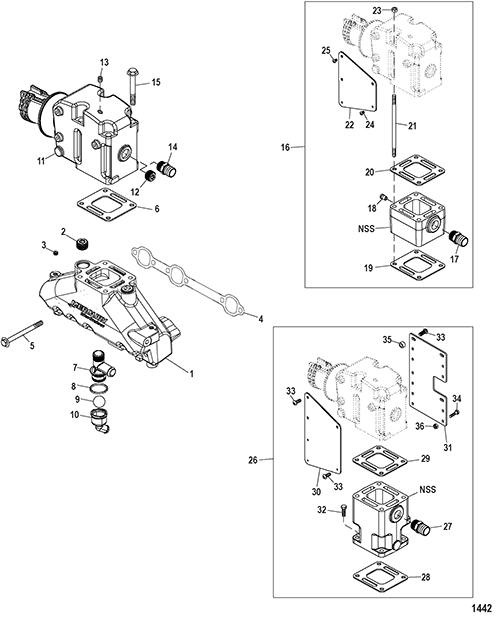

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 530-99746A17, Sierra: 676-18-1952-1, GLM: 700-51220 | MANIFOLD ASSEMBLY Exhaust | 2 | ||
| 2 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | 8 | ||
| 3 | 0022 | OEM: 525-22-390721 | PLUG Pipe (.125-27) Brass | 2 | ||
| 4 | 0027 | OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 | GASKET | 2 | [1] | |
| 5 | 0010 | OEM: 525-10-53728, GLM: 700-21745 | SCREW (.375-16 x 4.75) | 6 | ||
| 6 | 0027 | OEM: 530-863724, Sierra: 676-18-0897, GLM: 700-30240 | GASKET Elbow | (Standard Cooling With Easy Drain) | 2 | [2] |
| 6 | 0027 | OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 | GASKET Elbow | (Standard Cooling Wth Multi Point Drain) (Closed Cooling With Easy Drain) | 2 | |
| 7 | 0022 | OEM: 530-863786A1 | FITTING ASSEMBLY Drain | 2 | ||
| 8 | 0025 | 47632 | O-RING (1.112 x .103) | 1 | ||
| 9 | 0030 | OEM: 525-30-863129 | BALL | 1 | ||
| 10 | 0000 | OEM: 525-862994T | FITTING | 1 | ||
| 11 | 0000 | 807988A2 | ELBOW ASSEMBLY Exhaust | 2 | ||
| 12 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | 2 | ||
| 13 | 0022 | OEM: 525-22-73379, GLM: 700-22379 | PLUG (.250-18) | 1 | ||
| 14 | 0022 | 863804 | FITTING (.750-14) | 1 | ||
| 15 | 0010 | 43749 | SCREW (.375-16 x 5.750) | 8 | ||
| 16 | 0000 | 93320A10 | RISER EXTENSION KIT (3 Inch) | 1 | ||
| 17 | 0022 | 863804 | FITTING (.750-14) | 2 | ||
| 18 | 0022 | OEM: 525-22-328022, Sierra: 676-18-4263 | PLUG Pipe (.125-27) Brass | 2 | ||
| 19 | 0027 | OEM: 530-863724, Sierra: 676-18-0897, GLM: 700-30240 | GASKET Restrictor | (Standard Cooling With Easy Drain) | 2 | [2] |
| 19 | 0027 | OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 | GASKET | (Standard Cooling With Multi Point Drain) (Closed Cooling With Easy Drain) | 2 | |
| 20 | 0027 | OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 | GASKET | 2 | ||
| 21 | 0016 | 11375 | STUD (.375 x 9.56) | 8 | ||
| 21 | 0016 | 11376 | STUD (.375 x 10.56) | 2 | ||
| 22 | 0000 | 863714T | BRACKET | 1 | ||
| 23 | 0011 | OEM: 525-11-805979 | NUT (.375-24) Flange | 8 | ||
| 24 | 0010 | OEM: 525-10-864378 | SCREW (.250-20 x .375) Torx | 1 | ||
| 25 | 0010 | OEM: 525-10-860008, GLM: 700-22375 | SCREW (.250-20 x .625) Torx | 4 | ||
| 26 | 0000 | OEM: 525-93322A10, GLM: 700-50620 | RISER EXTENSION KIT (6 Inch) | 1 | ||
| 27 | 0022 | 863804 | FITTING (.750-14) | 2 | ||
| 28 | 0027 | OEM: 530-863724, Sierra: 676-18-0897, GLM: 700-30240 | GASKET Restrictor | (Standard Cooling With Easy Drain) | 2 | [2] |
| 28 | 0027 | OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 | GASKET | (Standard Cooling With Multi Point Drain) (Closed Cooling With Easy Drain) | 2 | |
| 29 | 0027 | OEM: 530-863726, Sierra: 676-18-2849-1, GLM: 700-32080 | GASKET | 2 | ||
| 30 | 0000 | 863715T | BRACKET ECM Mounting | 1 | ||
| 31 | 0000 | OEM: 525-818598T | BRACKET Shift Plate Mounting | 1 | ||
| 32 | 0010 | 12244 | SCREW (.375-16 x 1.00) | 8 | ||
| 33 | 0010 | OEM: 525-10-860008, GLM: 700-22375 | SCREW (.250-20 x .625) Torx | 6 | ||
| 34 | 0010 | OEM: 525-10-28667, GLM: 700-22360 | SCREW (.250-20 x 1.00) Stainless Steel | 3 | ||
| 35 | 0023 | 92152 | SPACER (.27 x .75 x .38) | 3 | ||
| 36 | 0011 | OEM: 525-11-8267138 | NUT (.25-20) | 3 | ||
| - | 0027 | OEM: 525-27-807756A01 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Engine Overhaul Gasket Set 807756A01
Component Of Long Block Assemlby, Long Block Part Numbers Listed On Service/Support Material Page.
[2] - Alternate part numbers:
863724Service Part
863724QQS
