4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Pistons And Connecting Rods

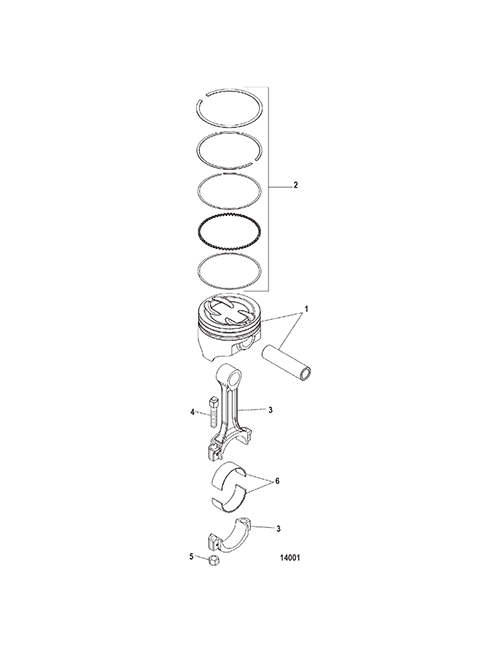

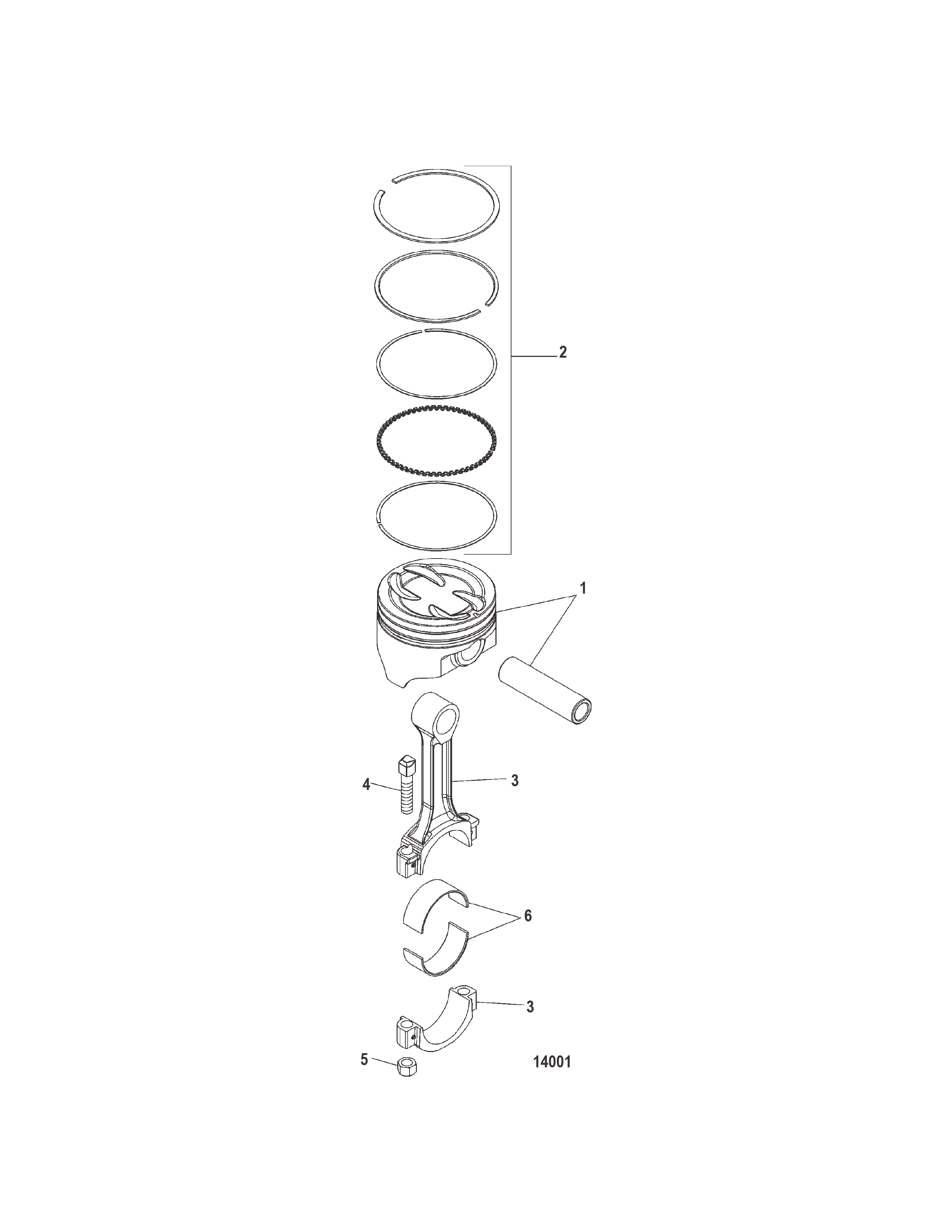

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0735 | OEM: 525-735-835001T | PISTON ASSEMBLY | (Standard) | 6 | [1] |
| 1 | 0735 | OEM: 525-735-835002T | PISTON ASSEMBLY | (.5MM Oversize) | AR | |
| 2 | 0039 | 801861T1 | RING SET Piston | (Standard) | 6 | [1] |
| 2 | 0039 | OEM: 525-39-835000 | RING SET Piston | (.5MM Oversize) | AR | |
| 3 | 0614 | 811839T | CONNECTING ROD | 6 | [1] | |
| 4 | 0010 | OEM: 525-10-11969 | BOLT Connecting Rod | 12 | [1] | |
| 5 | 0011 | 37493 | NUT (.375-24) | 12 | [1] | |
| 6 | 0023 | 11992 | BEARING | (Pair-Standard) | 6 | [1] |
| 6 | 0023 | OEM: 525-23-11993 | BEARING | (Pair- .001 Undersize) | AR | |
| 6 | 0023 | 811858 | BEARING | (Pair- .010 Undersize) | AR | |
| 6 | 0023 | OEM: 525-23-811859 | BEARING | (Pair- .020 Undersize) | AR | |
| - | 0000 | 864256A2 | LONGBLOCK ASSEMBLY (4.3L) | 1 | [2] |
PART NOTES:
[1] - Component Of Long Block Assemlby, Long Block Part Numbers Listed On Service/Support Material Page.
[2] - Alternate part numbers:
864256A 2QS
864256R05Reman
8M0063328Reman Int'l
