4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Standard Cooling System (Easy Drain)

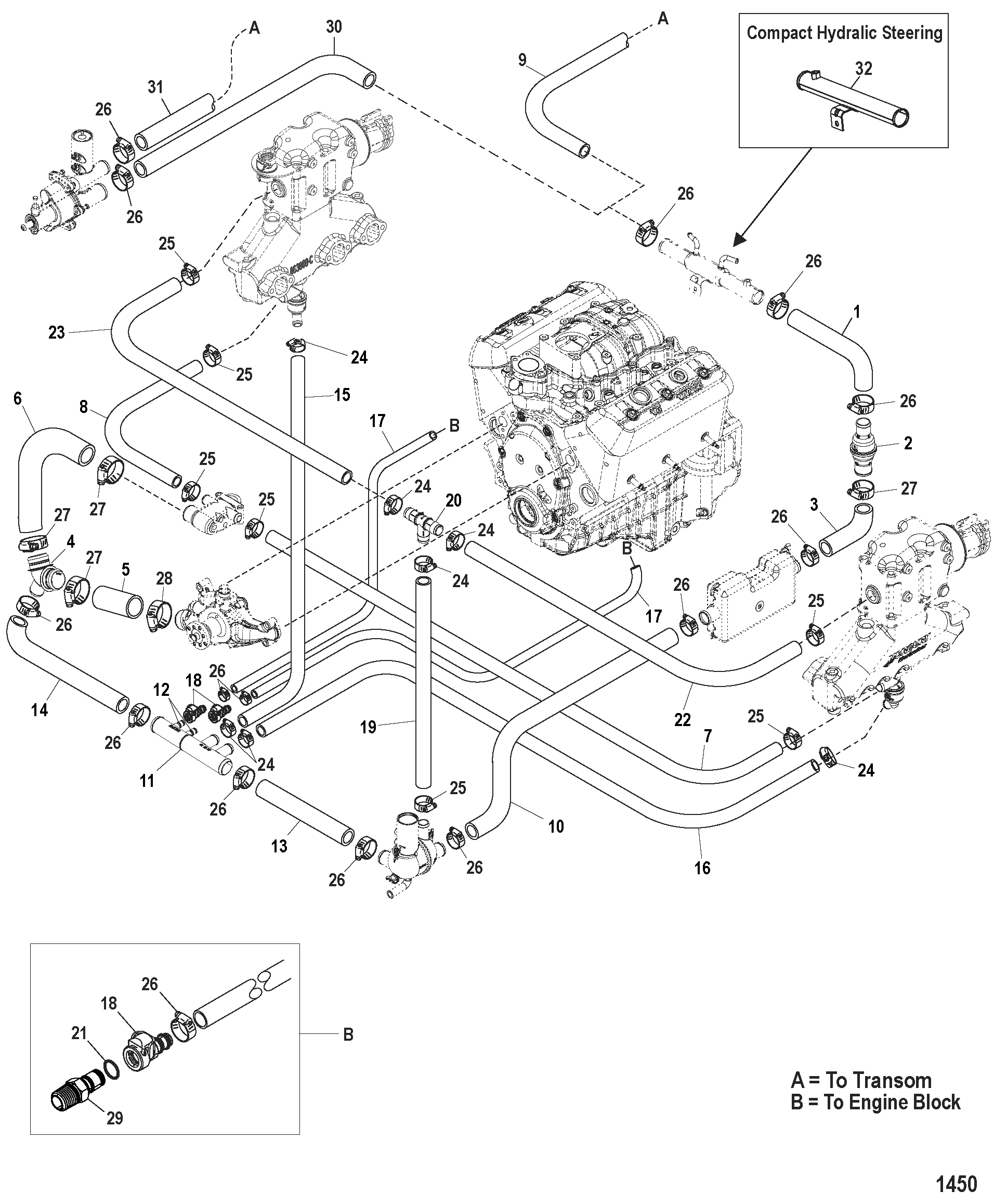

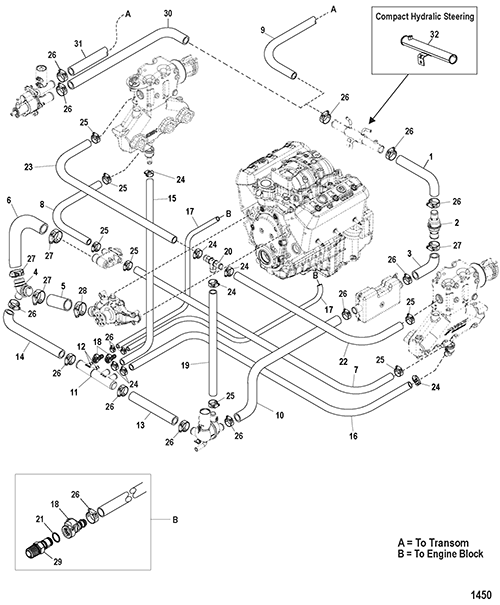

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0032 | OEM: 525-32-863489 | HOSE Power Steering Cooler To Check Valve | 1 | ||
| 2 | 0021 | OEM: 525-21-864206A1 | CHECK VALVE ASSEMBLY | 1 | ||
| 3 | 0032 | OEM: 525-32-863811 | HOSE Check Valve To Fuel Cooler | 1 | [1] | |
| 4 | 0000 | 863455 | FITTING Y | 1 | ||
| 5 | 0032 | 862274 | HOSE Lower Circulation Pump | 1 | ||
| 6 | 0032 | 863453 | HOSE Y Fitting To Circulating Pump | 1 | ||
| 7 | 0032 | OEM: 525-32-863458 | HOSE Thermosat Housing To Port Manifold | 1 | ||
| 8 | 0032 | OEM: 525-32-863858 | HOSE Thermosat Housing To Starboard Manifold | 1 | [1] | |
| 9 | 0032 | OEM: 525-32-807661 | HOSE Transom To Power Steering Cooler | 1 | ||
| 10 | 0032 | OEM: 525-32-863781 | HOSE Fuel Cooler To Water Distribution Housing | (With Power Steering) | 1 | [1] |
| 10 | 0032 | OEM: 525-32-863937 | HOSE Fuel Cooler To Water Distribution Housing | (With Out Power Steering) | 1 | |
| 11 | 0022 | 863760 | FITTING Lower Distribution | 1 | ||
| 12 | 0025 | OEM: 525-25-627021 | O-RING (.301 x .070) | 2 | ||
| 13 | 0032 | OEM: 525-32-863490 | HOSE Water Drain Accumulator To Distribution Fitting | 1 | ||
| 14 | 0032 | OEM: 525-32-863491 | HOSE Distribution Fitting To "Y" Fitting | 1 | ||
| 15 | 0032 | 4285069 | HOSE (44.00 Inches Bulk) Starboard Manifold To Distribution Fitting | (Cut To 22 Inch Length) | 1 | |
| 16 | 0032 | 864258 | HOSE Port Manifold To Distribution Fitting | 1 | ||
| 17 | 0032 | 8623174 | HOSE Cyl. Blk. Drain To Dist. Fitting | (Port-23 Inch) (Starboard- 17 Inch) | 2 | |
| 18 | 0022 | OEM: 525-22-862225 | FITTING Pushlock | 4 | ||
| 19 | 0032 | OEM: 525-32-863465 | HOSE Drain Accumulator to Tee Fitting | 1 | ||
| 20 | 0022 | OEM: 525-22-863464 | FITTING Tee | (Bravo Only) | 1 | |
| 20 | 0022 | 863464A1 | FITTING ASSEMBLY | (Alpha Only) | 1 | |
| NS | 0023 | OEM: 525-23-864327 | BUSHING Oriface | (Alpha Only) | 1 | |
| NS | 0025 | OEM: 525-25-864353 | O-RING | (Alpha Only) | 1 | |
| 21 | 0025 | OEM: 525-25-627021 | O-RING (.301 x .070) | 2 | ||
| 22 | 0032 | OEM: 525-32-863496 | HOSE T Fitting To Port Elbow | 1 | ||
| 23 | 0032 | OEM: 525-32-863497 | HOSE T Fitting To Starboard Elbow | 1 | [1] | |
| 24 | 0054 | OEM: 525-54-815504212 | CLAMP Worm Gear Hose | 2 | ||
| 25 | 0054 | OEM: 525-54-815504216 | CLAMP Worm Gear (1.56 Diameter) Hose | AR | ||
| 26 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) Hose | 2 | ||
| 27 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear Hose | 1 | ||
| 28 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) Hose | AR | ||
| 29 | 0022 | OEM: 525-22-862603 | FITTING Male Quick Connector (Threaded) | 2 | ||
| 30 | 0032 | OEM: 525-32-863611 | HOSE Sea Water Pump To Power Steering Cooler | (Cut To Length) | 1 | |
| 31 | 0032 | 86334364 | HOSE Sea Water Pump To Water Pick Up | 1 | ||
| 32 | 0000 | OEM: 525-863841T | TUBE Water Brass | (Compact Hydralic Steering) | 1 | |
| NS | 0019 | 8079923 | COVER Hose Clamp End | A/R |
PART NOTES:
[1] - Part Is New And Listed For The First Time
