4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Starter Motor

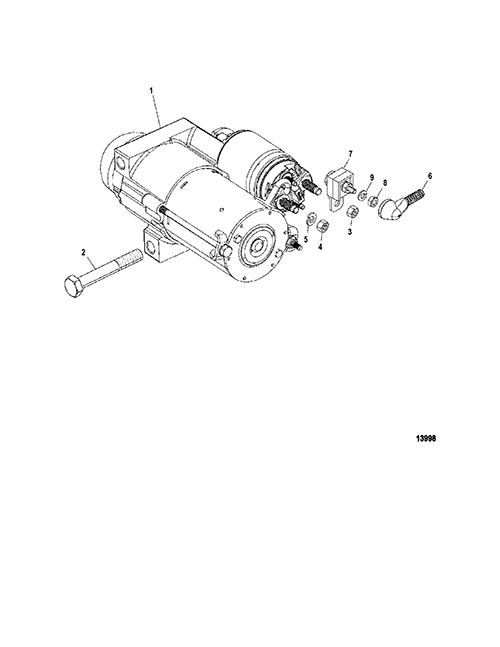

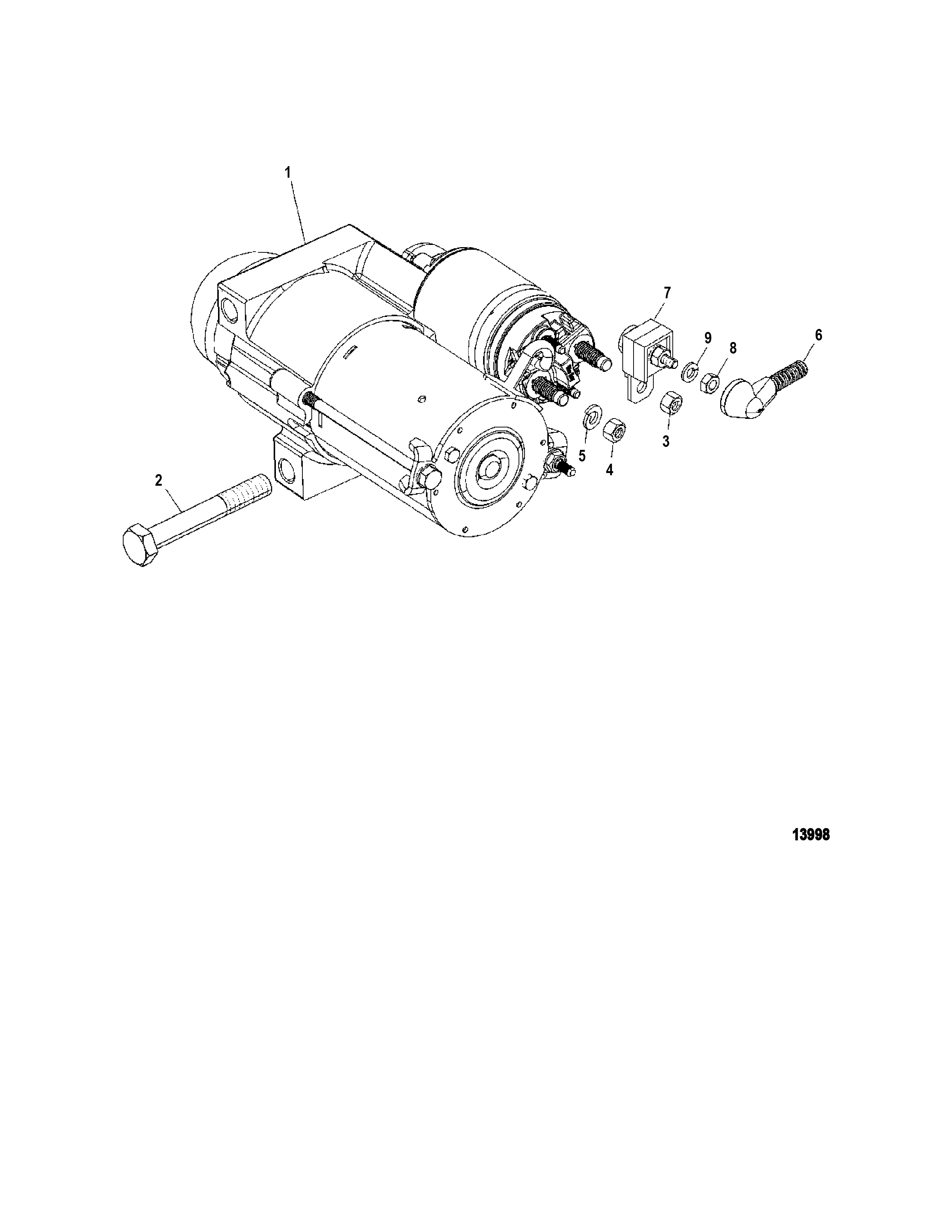

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0050 | OEM: 530-863007A1, Sierra: 676-18-6275 | STARTER MOTOR ASSEMBLY | 1 | [1] | |
| 2 | 0010 | OEM: 525-10-861788 | SCREW (M10 x 1.5) | 2 | ||
| 3 | 0011 | OEM: 525-11-806949 | NUT (M8-1.5) | 1 | ||
| 4 | 0011 | OEM: 525-11-400211 | NUT (M5) Stainless Steel | 1 | ||
| 5 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 6 | 0085 | 79695 | BOOT Insulator - Black | 1 | ||
| 7 | 0088 | OEM: 530-79023A91, Sierra: 676-18-8220 | FUSE ASSEMBLY 90 Ampere | 1 | ||
| 8 | 0011 | OEM: 525-11-8267119 | NUT (.250-28) | 1 | ||
| 9 | 0013 | OEM: 525-13-400247 | LOCKWASHER (M8) | 1 |
PART NOTES:
[1] - Alternate part numbers:
863007A 1QS
863007R01Reman
