4.3L MPI ALPHA-BRAVO - 0M300000 THRU 0M614999 - Flywheel Coupler And Flywheel Housing

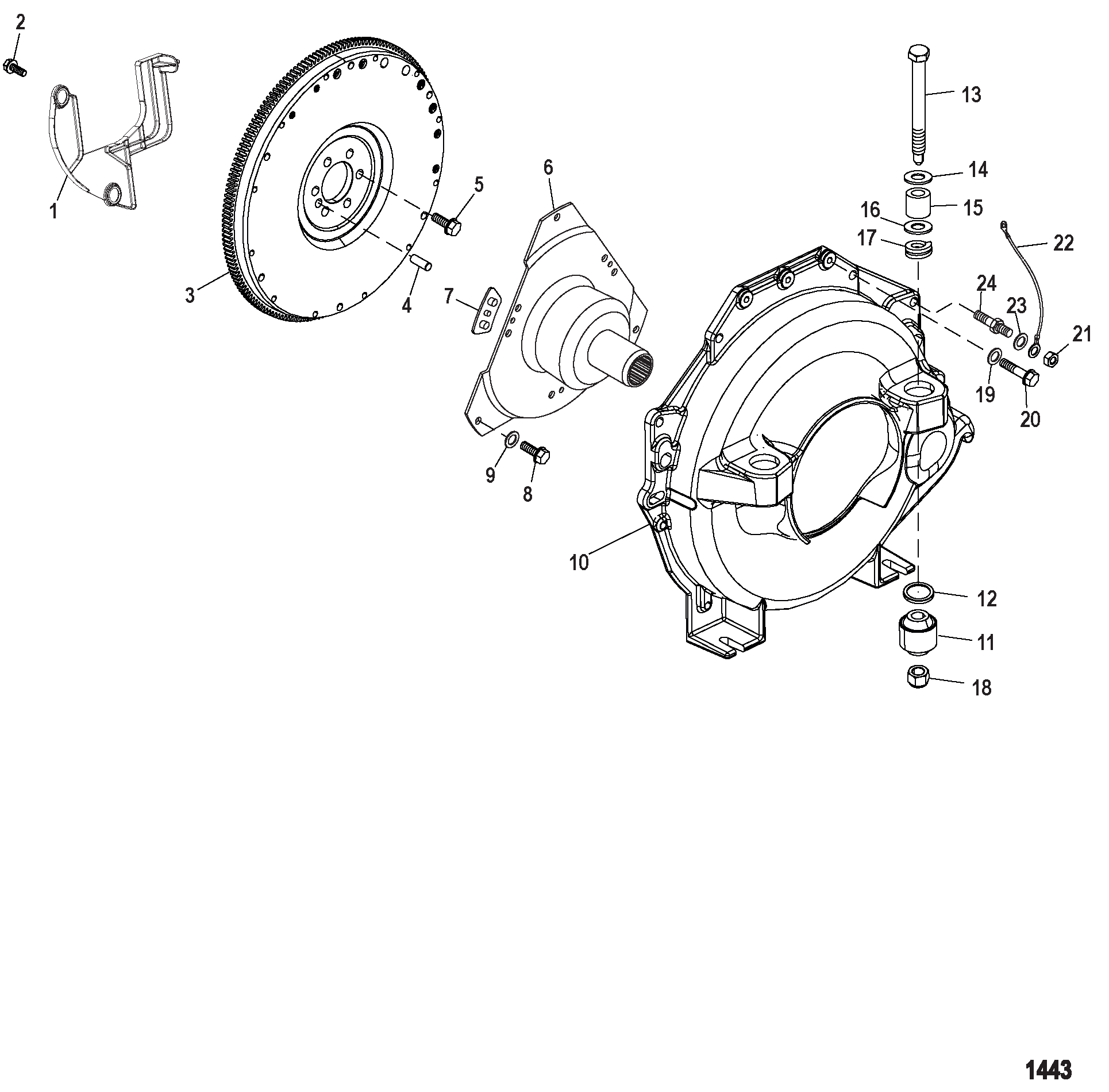

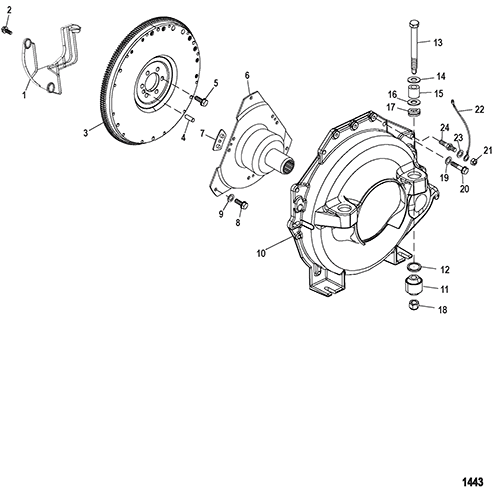

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System (Easy Drain)
- Cylinder Block Camshaft Crankshaft And Balanceshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold And Elbow
- Exhaust System
- Flywheel Coupler And Flywheel Housing
- Front Cover And Cirulating Pump
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Intake Manifold And Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan Oil Pump And Rear Oil Seal
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Easy Drain)
- Standard Cooling System (Multi Point Drain)
- Starter Motor
- Thermostat And Housing (Easy Drain)
- Thermostat And Housing (Multi Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain-Air Manifold And Air Pump
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-807456A2 | COVER | 1 | ||
| 2 | 0010 | OEM: 525-10-76596 | SCREW (.250-20 x 1.250) | 2 | ||
| 3 | 0222 | 804913 | FLYWHEEL | 1 | [1] | |
| 4 | 0017 | OEM: 525-17-43504 | PIN Dowel Flywheel | 2 | [1] | |
| 5 | 0010 | OEM: 525-10-845757 | SCREW (.437-20 x 1.00) | 6 | [1] | |
| 6 | 0000 | OEM: 530-18643A5, Sierra: 676-18-2323, GLM: 700-11532 | COUPLING ASSEMBLY | 1 | ||
| NS | 0022 | OEM: 525-22-74036 | FITTING Grease | 1 | ||
| 7 | 0000 | OEM: 525-18644 | BUMPER Rubber | 3 | ||
| 8 | 0010 | OEM: 525-10-14883 | SCREW (.375-16 x 1.12) | 3 | ||
| 9 | 0012 | OEM: 525-12-13510 | WASHER | 3 | ||
| 10 | 0000 | 12675A5 | HOUSING ASSEMBLY Flywheel Flywheel | 1 | ||
| 11 | 0000 | 99297A1 | MOUNT ASSEMBLY Rubber | 2 | ||
| 12 | 0023 | OEM: 525-23-99322, GLM: 700-21050 | SPACER | 2 | ||
| 13 | 0010 | OEM: 525-10-97934, Sierra: 676-18-3729, GLM: 700-19310 | SCREW (.500-20 x 5.370) Special | 2 | ||
| 14 | 0012 | OEM: 525-12-35777, GLM: 700-19320 | WASHER (.5156 x 1.375 x .125) Aluminum | 2 | ||
| 15 | 0023 | OEM: 525-23-99299, GLM: 700-19340 | SPACER (.520 x .870 x .630) | 2 | ||
| 16 | 0012 | OEM: 525-12-32834, Sierra: 676-18-0681, GLM: 700-30020 | WASHER (.9375 x 1.750 x .172) | 2 | ||
| 17 | 0013 | OEM: 525-13-33734, GLM: 700-19330 | LOCKWASHER (.500) | 2 | ||
| 18 | 0011 | OEM: 525-11-863332, Sierra: 676-18-3728, GLM: 700-19350 | NUT (.500-20) Aluminum | 2 | ||
| 19 | 0012 | OEM: 525-12-34567 | WASHER | 4 | ||
| 20 | 0010 | OEM: 525-10-40001197 | SCREW (M10 x 35) | 3 | ||
| 20 | 0010 | OEM: 525-10-40001203 | SCREW (M10 x 45) | 1 | ||
| 21 | 0011 | OEM: 525-11-40125100 | NUT (M10) | 2 | ||
| 22 | 0084 | 62826A3 | CABLE ASSEMBLY Grounding | 2 | ||
| 23 | 0013 | OEM: 525-13-400248 | LOCKWASHER (M10) | 2 | ||
| 24 | 0016 | OEM: 525-16-861577 | STUD Double Ended Metric (M10) | 2 | ||
| - | 0027 | OEM: 525-27-807756A01 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component Of Long Block Assemlby, Long Block Part Numbers Listed On Service/Support Material Page.
