496 Mag HO Model - Serial 0M025000 Thru 0M687143 - Exhaust Manifold (W- Water Rail), Elbow, And Riser

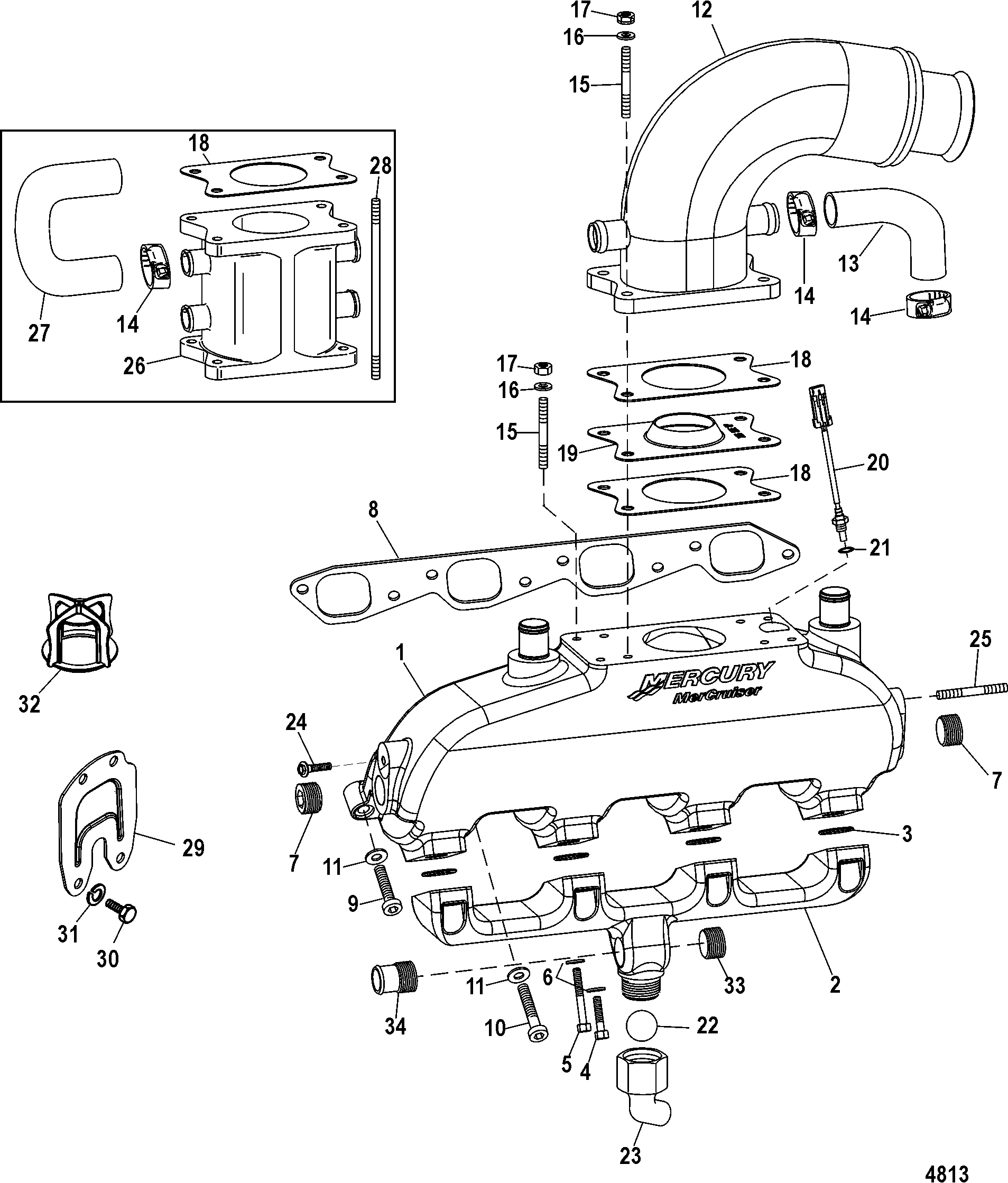

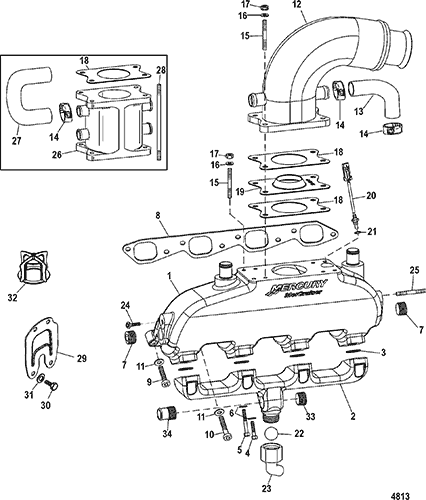

Section Drawing: (Hover or click to view larger)

Untitled Document

Ref.	OEM Part #	SEI #	Mallory #	GLM #	Other #	Description	Num Req.	Superceded From	Special Notes
1	866178A02					MANIFOLD ASSEMBLY, Exhaust	2	863120T2	New, style, no water rail
2	862992T1					RAIL, Water	1
3	25-863090					O-RING	4
4	10-4008825					SCREW, (M6 x 25)	4
5	10-4008845					SCREW, (M6 x 45)	2
6	12-22937					WASHER	6
7	22-428611	602-98-102-57				FITTING, Pipe - Brass (.750-14)	2
8	27-46820		676-9-61400	700-33760		GASKET, Exhaust Manifold to Cylinder Head	2		2,3
9	10-4008935					SCREW, (M8 x 35) Stainless Steel	8
10	10-4008970					SCREW, (M8 x 70) Stainless Steel	8
11	12-12038					WASHER	16
12	865331A02					ELBOW, Exhaust	2	865331A01	(Standard Rise)
12	865332A02					ELBOW, Exhaust	2	865332A01	(2 Inch Rise)
13	32-863095					HOSE, Elbow to Manifold	4
14	54-815504216					CLAMP, Worm Gear (1.56 Diameter), Hose	8
15	16-8204511					STUD, (M8 x 55)	3
15	16-424632					STUD, (M8 x 37.1)	9
16	12-12038					WASHER	8
17	11-4002030					NUT, (M8)	8
18	27-862356					GASKET, Elbow to Manifold	4
19	8M2000433					TURBULATOR, Exhaust	2	863122
20	889575					SENSOR ASSEMBLY, Temperature	2	858535
21	25-627021					O-RING, (.301 x .070)	1
22	30-863129					BALL, Check	2
23	863116A1					CONNECTOR, Water Rail	2
24	10-4010716					SCREW, (M8 x 16)	1
25	16-424632					STUD, (M8 x 37.1)	1
26	866768T					RISER, (6 Inch)	2	863124T
27	32-863102					HOSE	4
28	16-863121					STUD, (M8 x 194)	8
NS	19-8079923					COVER, Hose Clamp End	8
29	861776A2					PLATE KIT, Exhaust Block Off	1
30	10-98794	602-98-102-35	676-9-78129	700-28300	525-10-98794	SCREW, (.375-16 x 1.00)	4
31	13-41471					LOCKWASHER, (.375)	4
32	860222A1					RESONATOR, Exhaust	1
33	22-865096					PLUG, Composite	2
34	22-864930					FITTING, Straight	2
