496 Mag HO Model - Serial 0M025000 Thru 0M687143 - Raw Water Cooling System 1(0M095324 And Below)

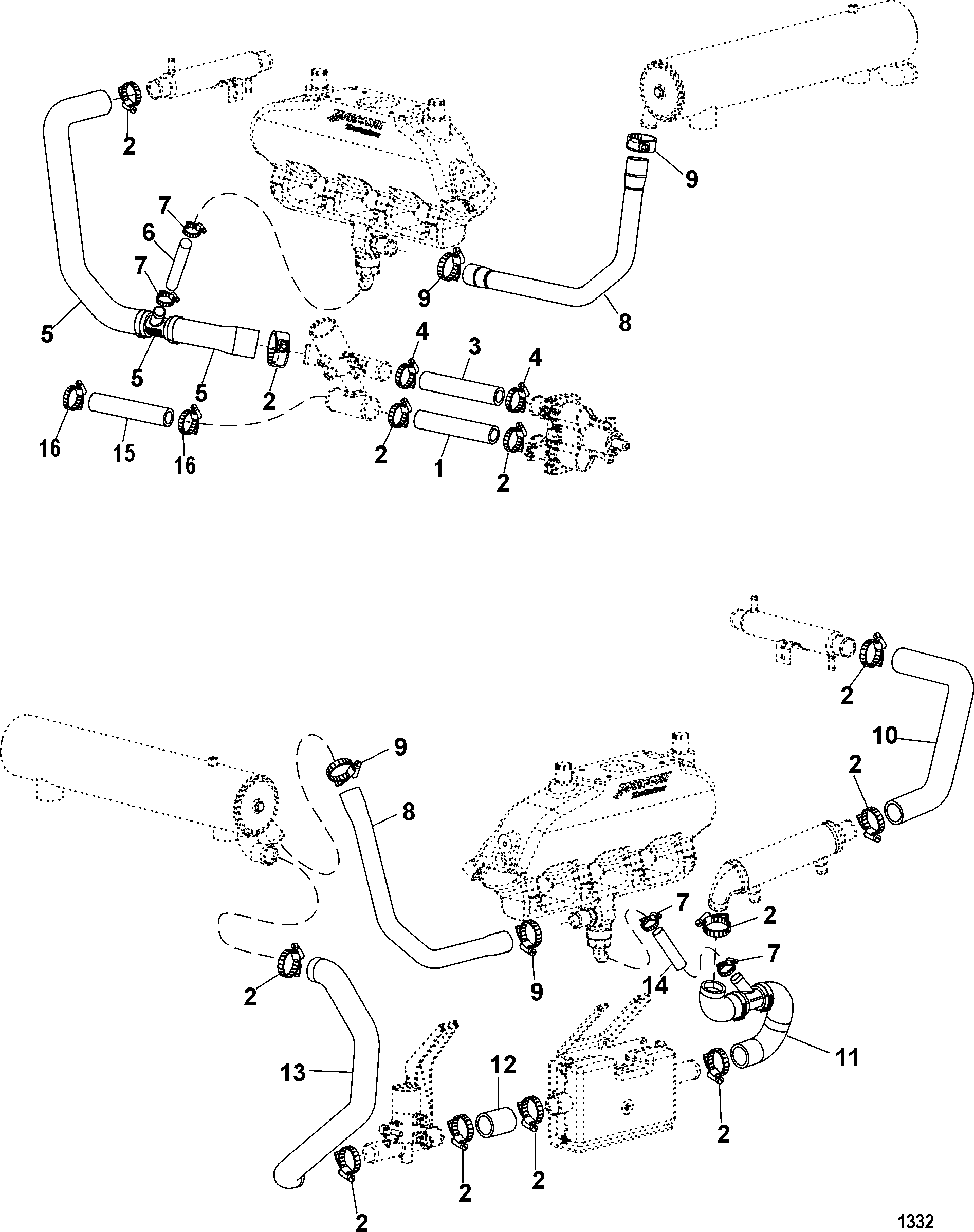

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block-Camshaft And Pistons
- Block-Crankshaft, Oil Pump, And Front Cover
- Closed Cooling System
- Cylinder Head
- Drive Reservoir And Bracket
- Engine Cover
- Engine Mounts
- Exhaust Manifold (W- Water Rail), Elbow, And Riser
- Exhaust Manifold (WO Water Rail), Elbow, And Riser
- Flywheel Housing
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A01), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Raw Water Cooling System 1(0M095324 And Below)
- Raw Water Cooling System 2(0M095325 And Up)
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle-Shift)
- Shift Bracket (Mechanical Shift)(0M659999 And Below)
- Shift Bracket (Mechanical Shift)(0M660000 And Up)
- Smartcraft Sensors And Harnesses
- Starter And Alternator
- Throttle Body (Digital Throttle-Shift)
- Throttle Body (Mechanical Throttle-Shift)
- Trim Pump Assembly
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-863036 | HOSE, Sea Water Pump to Water Drain | 1 | ||||||
| 2 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 12 | ||||||
| 3 | 32-865672079 | HOSE, Sea Water Pump to Water Drain | 1 | 32-86334352 | |||||
| 4 | 54-815504228 | CLAMP, Worm Gear, Hose | 3 | ||||||
| 5 | 32-8M0063512 | HOSE ASSEMBLY, Water Drain to Power Steering Cooler | 1 | 32-863037A1 | |||||
| 6 | 32-4285069 | HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting | 1 | (Starboard)(Cut to 9 In.) | |||||
| 7 | 54-815504212 | CLAMP, Worm Gear, Hose | 4 | ||||||
| 8 | 32-860327 | HOSE, Heat Exchanger to Water Rail | 2 | ||||||
| 9 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | 4 | ||||||
| 10 | 32-863043 | HOSE, Power Steering Cooler to Oil Cooler | 1 | ||||||
| 11 | 32-863044A1 | HOSE ASSEMBLY, Oil Cooler to Cool Fuel System | 1 | ||||||
| 12 | 32-863047 | HOSE, Cool Fuel System to Water Drain | 1 | ||||||
| 13 | 32-863051 | HOSE, Water Drain to Heat Exchanger | 1 | ||||||
| 14 | 32-4285069 | HOSE, (44.00 Inches Bulk), Water Rail to "Y" Fitting | 1 | (PORT)(Cut to 7 In.) | |||||
| 15 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | 32-1743579 | (Cut to 23-1/2 In.) | ||||
| 16 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 2 | ||||||
| - | 19-8079923 | COVER, Hose Clamp End | AR |
