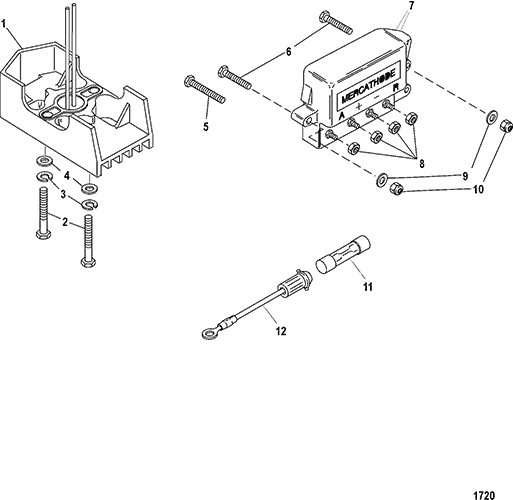

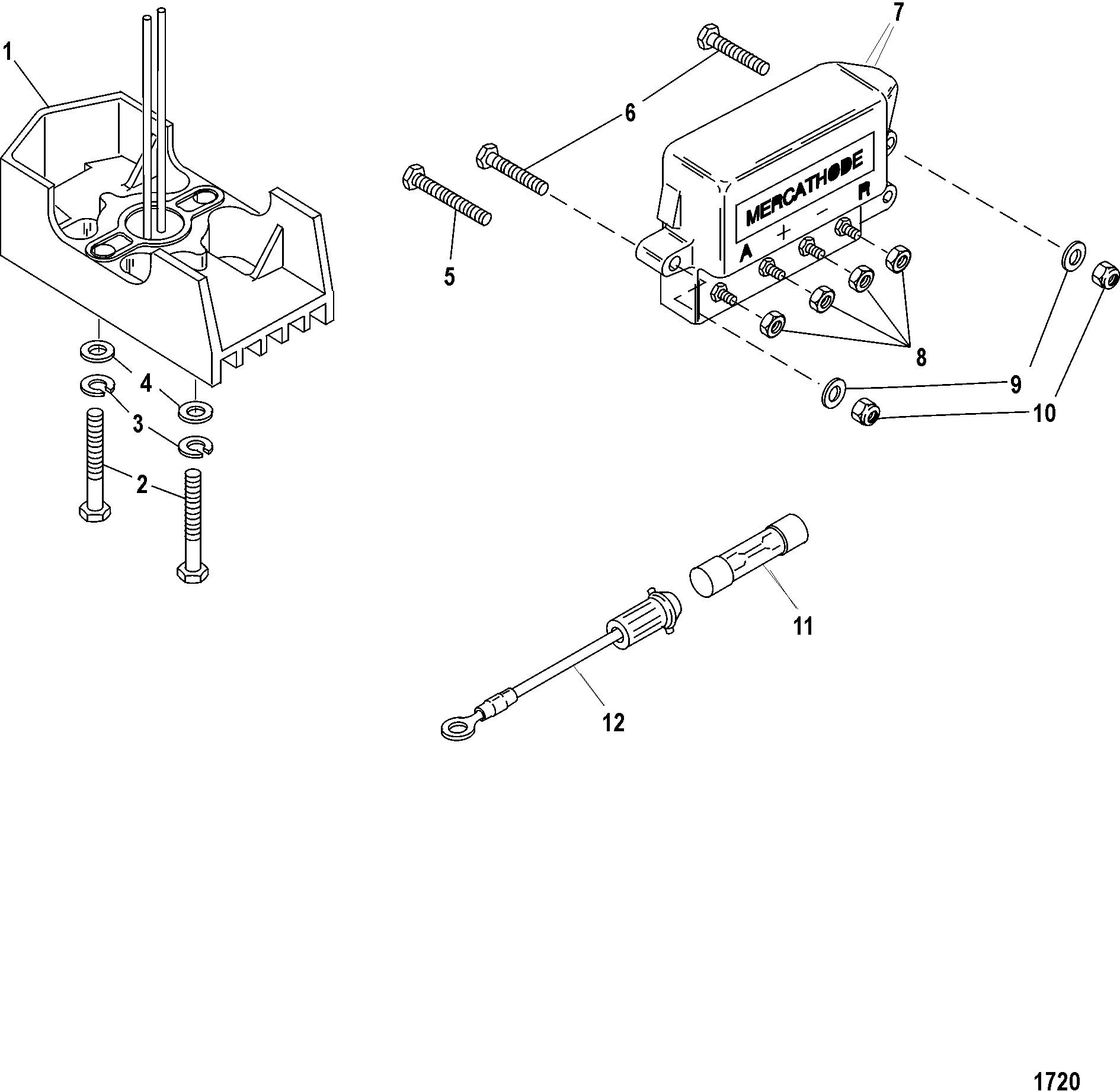

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes | |
- | 98869A14 | MERCATHODE SYSTEM | 1 | |||||||
1 | 98869A17 | ELECTRODE ASSEMBLY | 1 | 98869A11 | ||||||
2 | 10-69067 | SCREW, (.250-20 x 1.375) | 2 | |||||||
3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | |||||||
4 | 12-29245 | 700-21490 | 602-98-102-49 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | |||||
5 | 10-72202 | 700-22312 | SCREW, (#10-32 x 1.25) | 1 | ||||||
6 | 10-24637 | SCREW, (#10-32 x .875) | 2 | This Part is No Longer Available | ||||||
7 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | ||||||
8 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | |||||||
9 | 12-21273 | WASHER | 2 | |||||||
10 | 11-46438 | NUT, (#10-32) | 2 | |||||||
11 | 88-79091 | FUSE, 20 Ampere | 1 | |||||||
12 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | |||||||
12 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | |||||||
NS | 10-62568 | SCREW, (#10-16 x .375) | 1 |
