| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

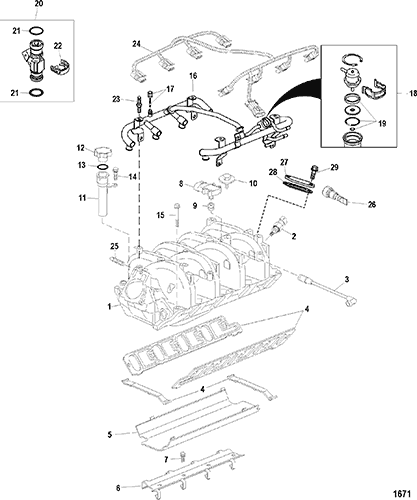

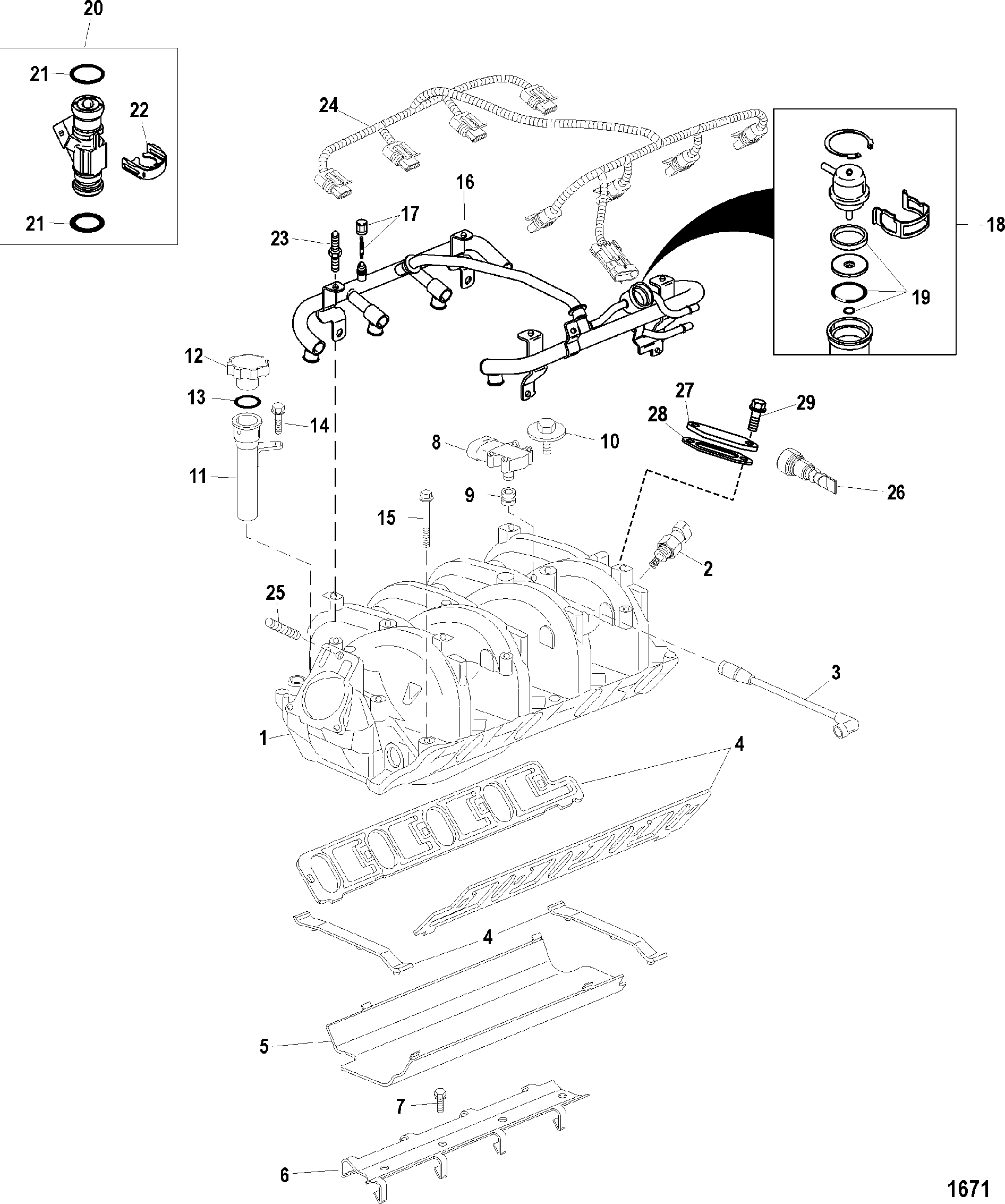

| 1 |
8M0064079 |
|
|
|
|
MANIFOLD, Intake |
1 |
881690 |
4,5,22,23 |
| 2 |
805223T |
|
676-9-42406 |
|
|
SENSOR, Manifold Air Temperature |
1 |
|
|
| 3 |
32-881734 |
|
|
|
|
HOSE, Fuel Pressure Regulator |
1 |
|
4,5,22,23 |
| 4 |
27-881633T01 |
|
|
|
|
GASKET SET, Intake Manifold and Valley |
1 |
27-881633 |
3,4,5,22 |
| 5 |
881689 |
|
|
|
|
SHIELD, Intake manifold Oil Splash |
1 |
|
4,5,22,23 |
| 6 |
8M0050807 |
|
|
|
|
RETAINER, Valve Lifter Guide |
1 |
845755 |
4,5,22,23 |
| 7 |
10-881570 |
|
|
|
|
SCREW, (M8 x 25) |
7 |
|
4,5,22,23 |
| 8 |
8M0054726 |
|
|
|
|
SENSOR, Manifold Air Pressure |
1 |
881731 |
4,5,22,23 |
| 9 |
25-881733 |
|
|
|
|
SEAL, M.A.P. Sensor |
1 |
|
4,5,22,23 |
| 10 |
10-881646 |
|
|
|
|
SCREW, (M6 x 20) |
1 |
|
4,5,22,23 |
| 11 |
881727 |
|
|
|
|
TUBE, Oil fill |
1 |
|
4,5,22,23 |
| 12 |
845753T1 |
|
|
|
|
CAP, Oil Fill |
1 |
|
4,5,22,23 |
| 13 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SEAL-Oil Fill Cap |
1 |
|
This Part is not sold separately 4,5,22,23 |
| 14 |
10-881645 |
|
|
|
|
BOLT, (M6 x 20), Oil Fill Tube |
1 |
|
4,5,22,23 |
| 15 |
10-881634 |
|
|
|
|
SCREW, (M6 x 65) |
10 |
|
4,5,22,23 |
| 16 |
881691001 |
|
|
|
|
FUEL RAIL, Fuel Injection |
1 |
881691 |
4,5,22,23 |
| 17 |
22-802631 |
|
|
|
|
VALVE AND CAP KIT, Fuel Pressure Service |
1 |
|
4,5,22,23 |
| 18 |
802630T01 |
|
676-9-33208 |
|
|
REGULATOR KIT, Fuel Pressure |
1 |
881692 |
SN# 0M667237 & Below 4,5 |
| 18 |
802630T01 |
|
676-9-33208 |
|
|
REGULATOR KIT, Fuel Pressure |
1 |
881692001 |
(Base)(Engine Block Code 4XW) SN# 0M672041 & Up 22,23 |
| 18 |
802630T01 |
|
676-9-33208 |
|
|
REGULATOR KIT, Fuel Pressure |
1 |
881692001 |
(H.O.)(GM Code 4XA) SN# 0M667238 & Up 22,23 |
| 19 |
25-881696 |
|
|
|
|
SEAL KIT, Fuel Pressure Regulator |
1 |
|
4,5,22,23 |
| 20 |
881693002 |
|
676-9-33103 |
|
|
INJECTOR |
8 |
881693 |
4,5,22,23 |
| 21 |
25-881694 |
|
|
|
|
SEAL KIT |
1 |
|
4,5,22,23 |
| 22 |
881695001 |
|
|
|
|
RETAINER KIT, Fuel Injector |
1 |
881695 |
4,5,22,23 |
| 23 |
16-881968001 |
|
|
|
|
STUD, Fuel Injection Rail |
2 |
16-881968 |
4,5,22,23 |
| 24 |
84-889503 |
|
|
|
|
HARNESS ASSEMBLY, Fuel Injection Wiring |
1 |
84-881697 |
4,5,22,23 |
| 25 |
16-802561 |
|
|
|
|
STUD, Throttle Body |
3 |
|
4,5,22,23 |
| 26 |
22-8623601 |
|
|
|
|
PLUG, Fuel Rail Outlet |
1 |
|
|
| 27 |
881725 |
|
|
|
|
PLATE, Block Off |
1 |
|
This Part is No Longer Available (Digital Throttle Shift) |
| 28 |
27-863285 |
|
|
|
|
GASKET |
1 |
27-881644 |
(Digital Throttle Shift) |
| 29 |
10-898101392 |
|
|
|
|
SCREW, (M8 x 30) |
2 |
10-881586 |
(Digital Throttle Shift) |
