496 Mag HO Model - Serial 0M025000 Thru 0M687143 - Starter And Alternator
Other Sub-Sections:
- Block-Camshaft And Pistons
- Block-Crankshaft, Oil Pump, And Front Cover
- Closed Cooling System
- Cylinder Head
- Drive Reservoir And Bracket
- Engine Cover
- Engine Mounts
- Exhaust Manifold (W- Water Rail), Elbow, And Riser
- Exhaust Manifold (WO Water Rail), Elbow, And Riser
- Flywheel Housing
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A01), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Raw Water Cooling System 1(0M095324 And Below)
- Raw Water Cooling System 2(0M095325 And Up)
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle-Shift)
- Shift Bracket (Mechanical Shift)(0M659999 And Below)
- Shift Bracket (Mechanical Shift)(0M660000 And Up)
- Smartcraft Sensors And Harnesses
- Starter And Alternator
- Throttle Body (Digital Throttle-Shift)
- Throttle Body (Mechanical Throttle-Shift)
- Trim Pump Assembly
- Water Drain System

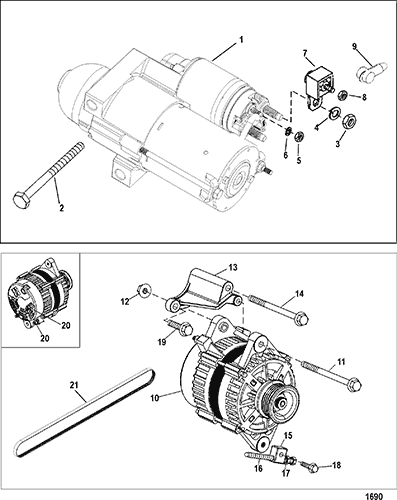

Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
1 | 50-863007A1 | 525-50-863007A1 | 620-5399M or | 602-10099MD | STARTER MOTOR ASSEMBLY | 1 | 50-806964A3 | |||
2 | 10-861788 | SCREW, (M10 x 1.5), Special | 2 | |||||||
3 | 11-806949 | NUT, (M8-1.5) | 1 | |||||||
4 | 13-400247 | LOCKWASHER, (M8) | 1 | |||||||
5 | 11-400211 | NUT, (M5) Stainless Steel | 1 | |||||||
6 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | |||||||
7 | 88-79023A91 | 676-9-15510 | FUSE ASSEMBLY, 90 Ampere | 1 | ||||||
8 | 11-8267119 | NUT, (.250-28) | 1 | |||||||
9 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | ||||||
10 | 863077T | 602-20131 | 676-9-19111 | 602-20119 | ALTERNATOR ASSEMBLY, Black | 1 | ||||
11 | 10-824459110 | SCREW, (M8 x 110) Stainless Steel | 1 | |||||||
12 | 11-401368 | NUT, (M8) Stainless Steel | 1 | |||||||
13 | 863855T | BRACKET, Alternator | 1 | 863337T | ||||||
14 | 10-40108120 | SCREW, (M10 x 120) Hex Flange - Stainless Steel | 1 | |||||||
15 | 862353A1 | ADJUSTMENT ASSEMBLY, Belt | 1 | |||||||
16 | NSS | NOT SOLD SEPARATE, SCREW-Belt Adjustment | 1 | This Part is not sold separately | ||||||
17 | 11-863409 | NUT, (M10), Jam | 1 | This Part is No Longer Available | ||||||
18 | 10-40011151 | SCREW, (M8 x 35) Stainless Steel, Flange | 1 | |||||||
19 | 10-4010835 | SCREW, (M10 x 35) Hex Flange - Stainless Steel | 1 | |||||||
20 | 11-400212 | NUT, (M6) Stainless Steel | 2 | |||||||
21 | 57-865615Q01 | BELT, Serpentine | 1 | 57-8638761 |
