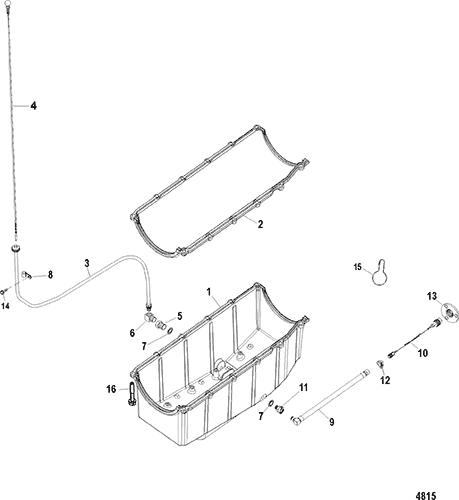

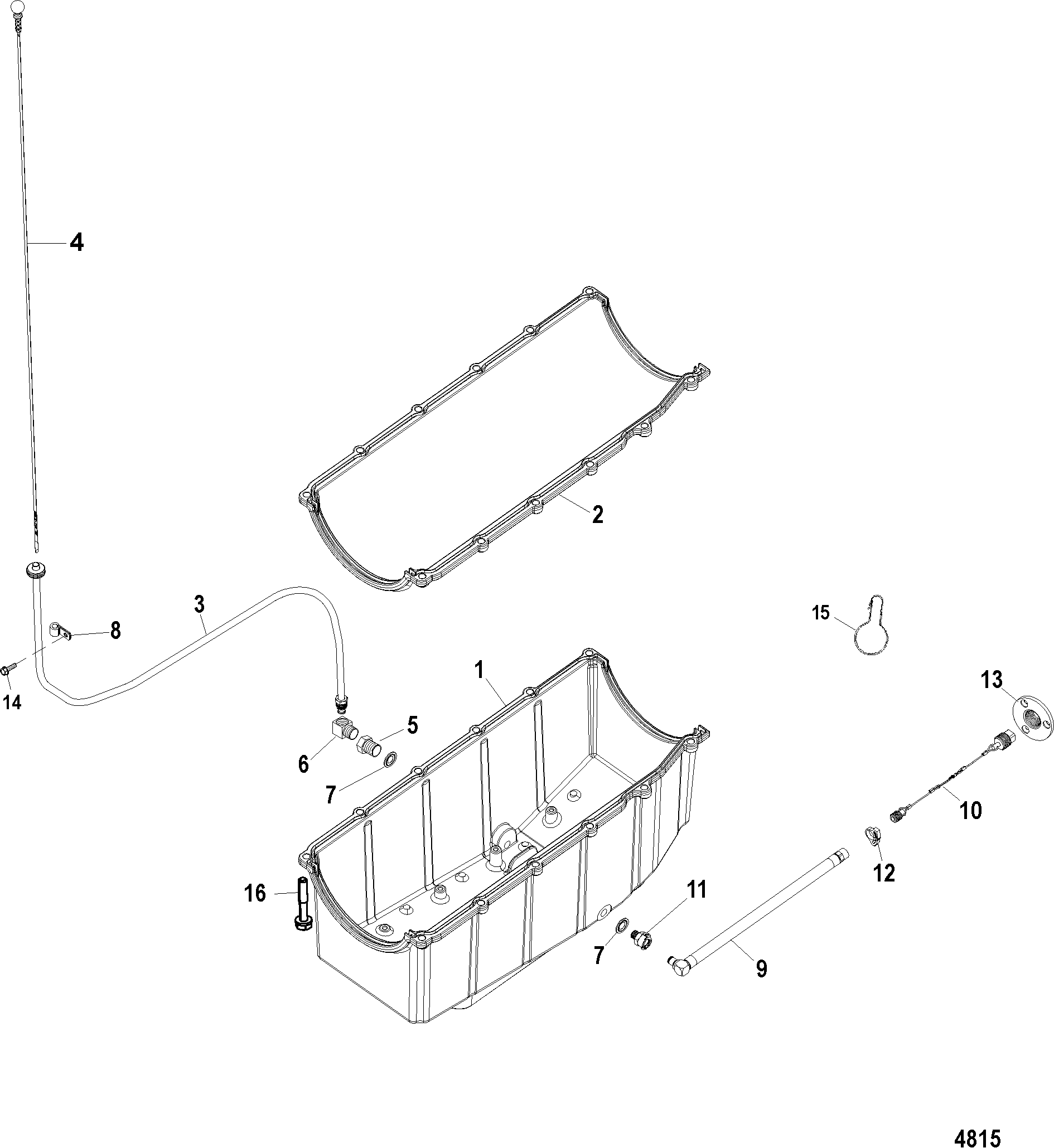

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 881653001 | PAN, Oil | 1 | 881653 | 4,5,22,23 | ||||
NS | 883922 | BAFFLE, Oil Pan | 1 | 22,4,5,23 | |||||
NS | 10-883923 | SCREW, (M6 x 20 | AR | 4,5,22,23 | |||||
2 | 27-881612 | 676-9-61510 | GASKET, Oil Pan | 1 | 3,4,5,22 | ||||
3 | 863408 | TUBE, Engine Oil Gauge | 1 | (MCM) | |||||
4 | 86194210 | GAUGE, Oil Level | 1 | ||||||
5 | 863389A01 | FITTING, Oil Guage Tube | 1 | 22-863389 | |||||
6 | 22-19697 | ELBOW | 1 | ||||||
7 | 27-49955 | 676-9-60104 | 700-30370 | GASKET, Drain | 2 | 2,3 | |||
8 | 54-65653 | CLIP | 1 | ||||||
9 | 32-805505A4 | HOSE, Oil Drain | 1 | This Part is NLA from Mercruiser. (DESIGN I- With Quick Connect Hose Assembly) SN# 0M628485 & Below | |||||
9 | 32-865281 | HOSE, Oil Drain | 1 | (DESIGN II-Without Quick Connect Hose Assembly) SN# 0M628486 & Up | |||||
9 | 32-865280 | HOSE, Oil Drain (Jackshaft Models) | 1 | (DESIGN II-Without Quick Connect Hose Assembly) SN# 0M628486 & Up | |||||
NS | 25-805063 | O-RING, (.301 x .070) | 2 | ||||||
10 | 862827 | TETHER ASSEMBLY | 1 | ||||||
11 | 22-862811 | FITTING, Female Quick Disconnect | 1 | (DESIGN I - With Quick Connect Hose Assembly) SN# 0M628485 & Below no longer made, limited availability | |||||
12 | 54-863481 | CLAMP | 1 | ||||||
13 | 862777 | FLANGE, Drain | 1 | ||||||
14 | 10-4000328 | SCREW, (M6 x 16) | 1 | ||||||
15 | 54-805524 | CLIP | 1 | ||||||
16 | 10-898101392 | BOLT, (M8 x 30) | 13 |
