| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
SEI # |
Description |
Num Req. |
Superceded From |
Special Notes |

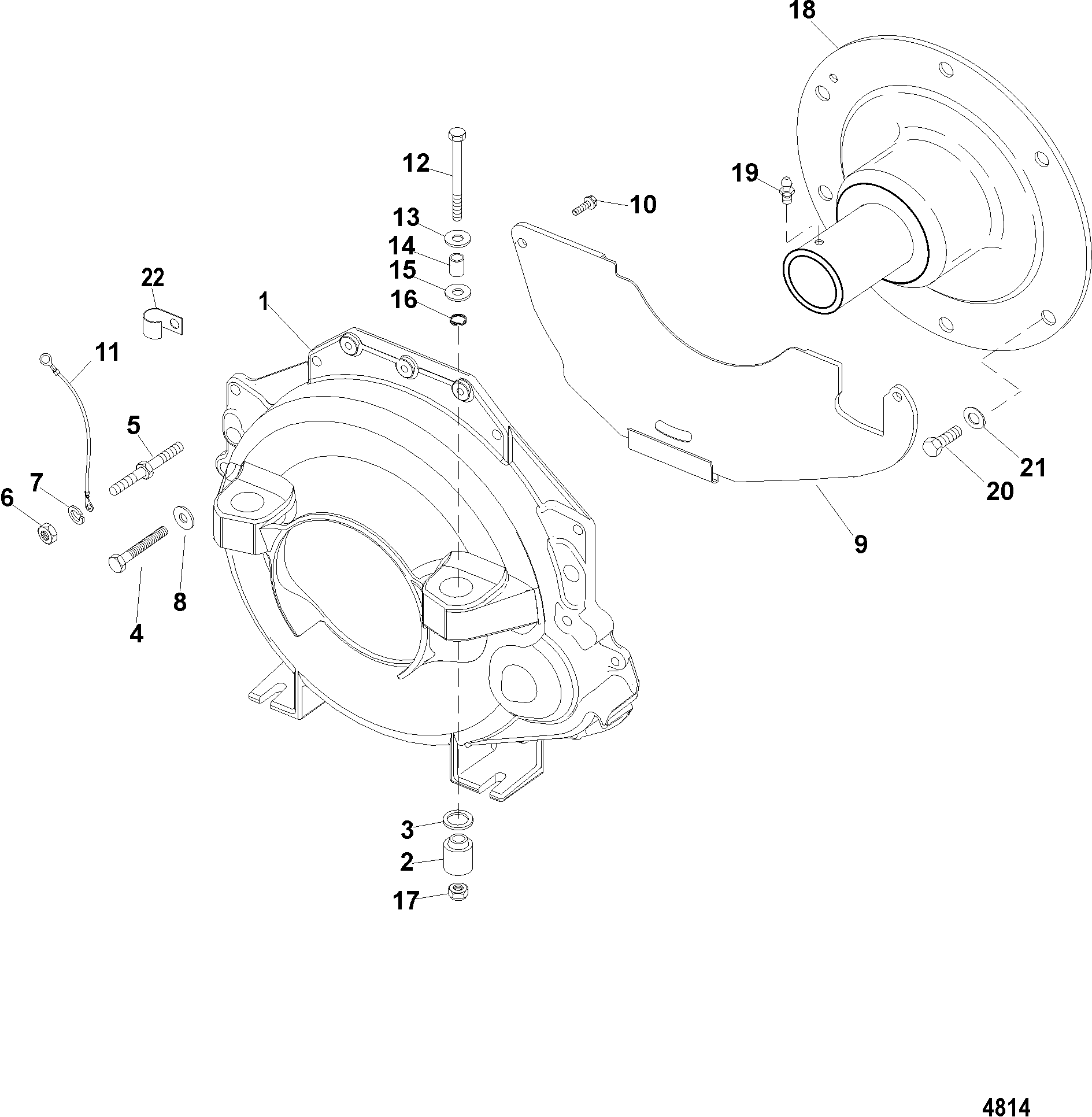

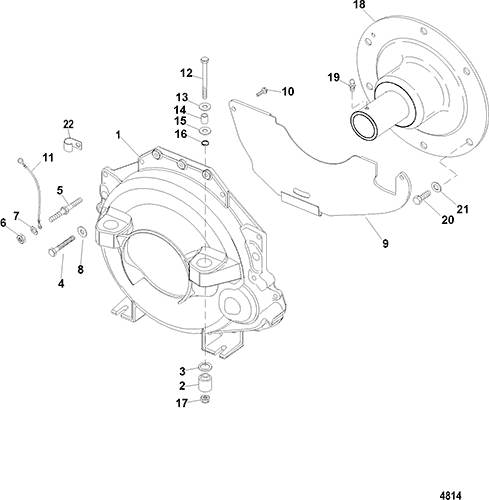

| 1 |
865657A04 |
620-91200 |
|
|
|
HOUSING ASSEMBLY, Flywheel, Flywheel |
1 |
12675A7 |
|
| 2 |
865330A02 |
|
|
|
|
MOUNT, Rubber |
2 |
88791T |
SN# 0M659999 & Below |
| 2 |
865330A02 |
|
|
|
|
MOUNT, Rubber |
1 |
865330A01 |
SN# 0M660000 & Up |
| 3 |
23-99322 |
|
|
700-21050 |
|
SPACER |
2 |
|
|
| 4 |
10-40001197 |
|
|
|
|
SCREW, (M10 x 35) |
3 |
|
|
| 4 |
10-40001203 |
|
|
|
|
SCREW, (M10 x 45) |
1 |
|
|
| 5 |
16-861577 |
|
|
|
|
STUD, Double Ended Metric (M10), Grounding |
2 |
|
|
| 6 |
11-40125100 |
|
|
|
|
NUT, (M10) |
2 |
|
|
| 7 |
13-400248 |
|
|
|
|
LOCKWASHER, (M10) |
2 |
|
|
| 8 |
12-34567 |
|
|
|
|
WASHER |
1 |
|
|
| 9 |
807260A2 |
|
|
|
|
COVER KIT, Flywheel |
1 |
|
|
| NS |
11-807296 |
|
|
|
|
NUT, (.250-20) |
2 |
|
|
| 10 |
10-76596 |
|
|
|
|
SCREW, (.250-20 x 1.250) |
2 |
|
|
| 11 |
84-62826A6 |
|
|
|
|
CABLE ASSEMBLY, Ground (13.00 Inches) Black |
1 |
|
|
| 12 |
10-97934 |
|
|
700-19310 |
602-9G-116-04 |
SCREW, (.500-20 x 5.370) Special |
2 |
|
|
| 13 |
12-35777 |
|
|
700-19320 |
602-9G-116-05 |
WASHER, (.5156 x 1.375 x .125) Aluminium |
2 |
|
|
| 14 |
23-99299 |
|
|
700-19340 |
602-9G-116-06 |
SPACER, (.520 x .870 x .630) |
2 |
|
|
| 15 |
12-32834 |
|
|
602-9G-116-10 |
12-32834 |
WASHER, (.9375 x 1.750 x .172) |
2 |
|
SN# 0M659999 & Below |
| 16 |
13-33734 |
|
|
700-19330 |
602-9G-116-07 |
LOCKWASHER, (.500) |
2 |
|
SN# 0M659999 & Below |
| 17 |
11-863332 |
|
|
700-19350 |
|
NUT, (.500-20) Aluminium |
2 |
|
|
| 18 |
861523A7 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Long Steel Hub |
1 |
|
|
| 19 |
22-74036 |
|
|
|
|
FITTING, Grease |
1 |
|
|
| 20 |
10-4010830 |
|
|
|
|
SCREW, (M10 x 15) Hex Flange - Stainless Steel |
6 |
|
|
| 21 |
12-25909 |
|
|
|
|
WASHER, (.406 x .812 x .065) |
6 |
|
|
| 22 |
54-78945 |
|
|
|
|
J CLAMP, Harness Support |
1 |
|
|
