350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Crankshaft And Flywheel

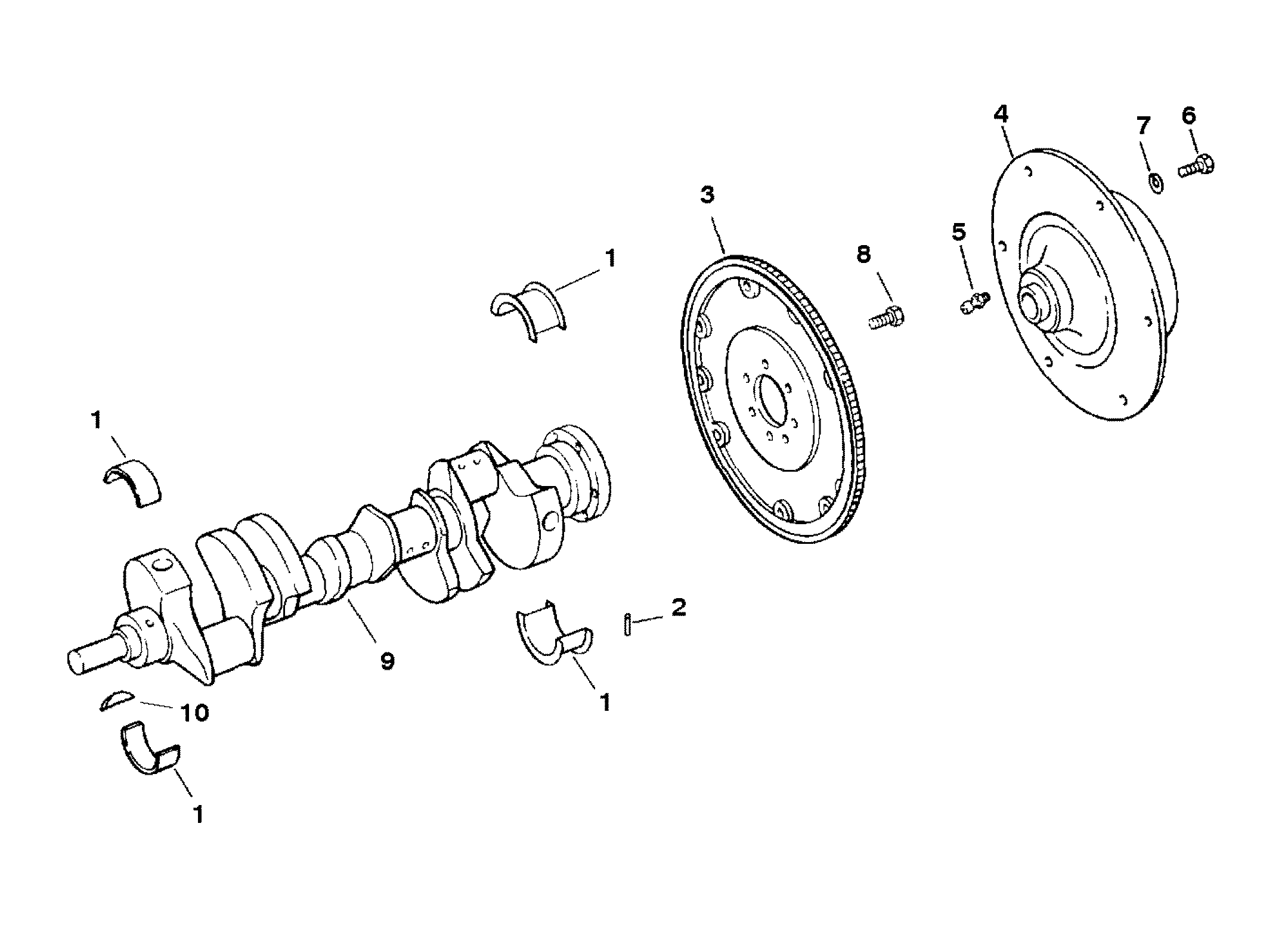

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 23-818465 | BEARING SET (STANDARD) | 1 | ||||||
| 1 | 23-818466 | BEARING SET (.001 U.S.) | AR | 2 | |||||
| 1 | 23-818467 | BEARING SET (.010 U.S.) | AR | 2 | |||||
| 1 | 23-818468 | BEARING SET (.020 U.S.) | AR | 2 | |||||
| 2 | 17-43504 | PIN-DOWEL (1/4 IN.) | 2 | FI1100096 | |||||
| 3 | 8M0047213 | FLYWHEEL | 1 | 222-9520 | |||||
| 4 | 861523A9 | COUPLING ASSEMBLY | 1 | 18311A17 | |||||
| 5 | 22-49099 | FITTING-GREASE | 2 | ||||||
| 6 | 10-14883 | SCREW (3/8-16 X 1-7/8 IN.) | 6 | ||||||
| 7 | 12-20572 | WASHER | 6 | ||||||
| 8 | 10-845757 | SCREW (7/16-20 X 1 IN.) | 6 | 10-49845 | |||||
| 9 | 429-8M0054508 | CRANKSHAFT | 1 | 429-95211 | |||||
| 10 | 28-34466 | KEY | 2 |
