350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Remote Oil Filter

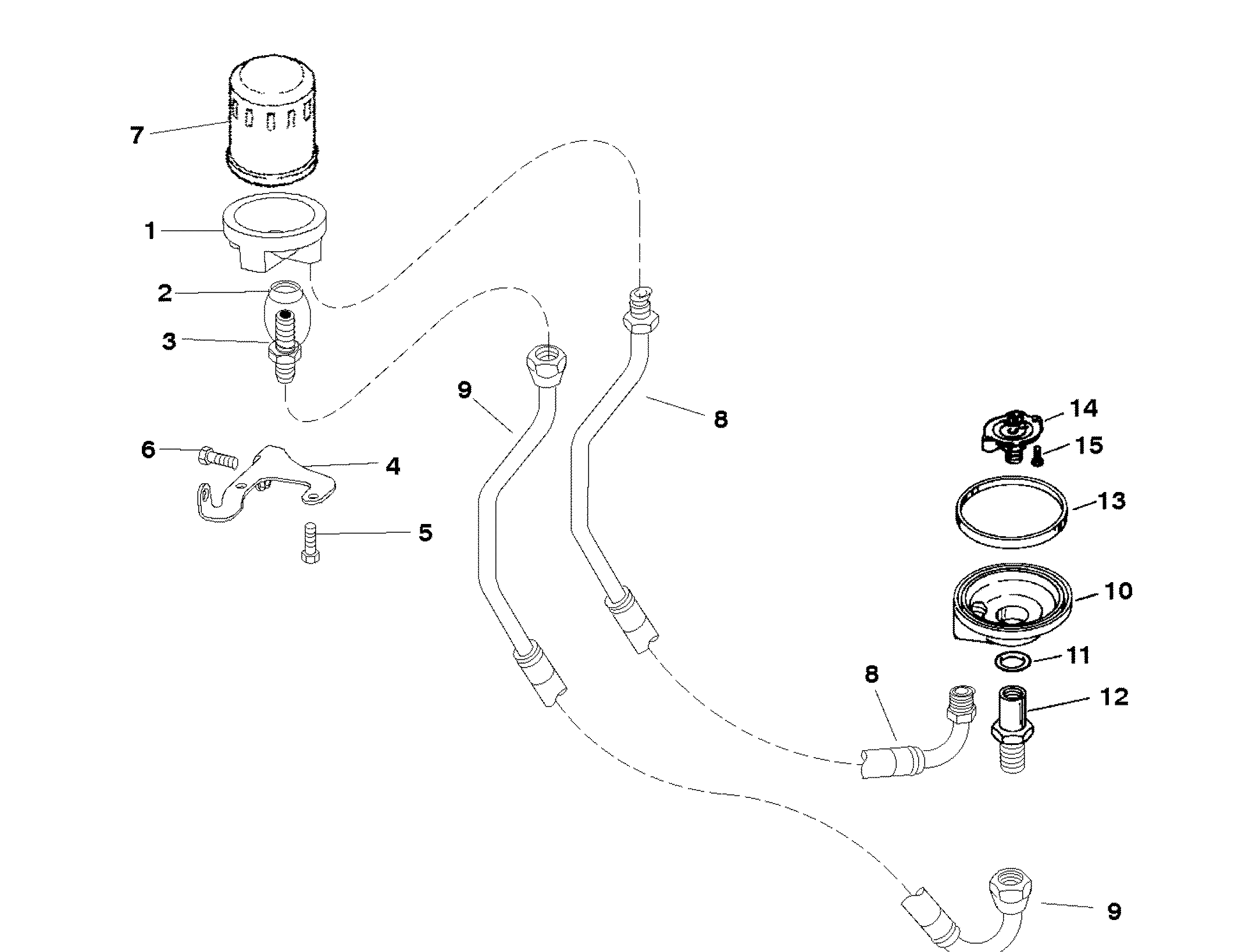

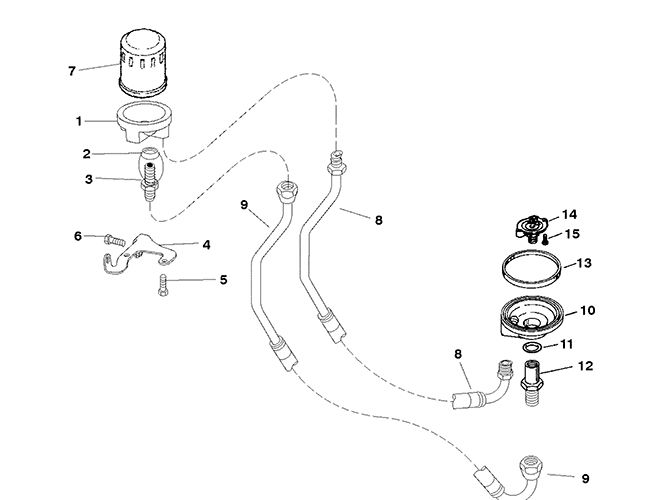

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-806329T | HOUSING-FILTER | 1 | ||||||
| 2 | 26-42077 | SEAL | 1 | 3 | |||||
| 3 | 22-806328 | FITTING | 1 | ||||||
| 4 | 807459T | BRACKET | 1 | ||||||
| 5 | 10-98257 | SCREW (5/16-18 X 1/2 IN.) | 2 | ||||||
| 6 | 10-98261 | SCREW (3/8-16 X 3/4 IN.) | 1 | ||||||
| 7 | 35-866340Q03 | OIL FILTER | 1 | 14957 | |||||
| 8 | 32-860207A1 | OIL HOSE | 1 | 32-860207 | |||||
| 9 | 32-860208 | OIL HOSE | 1 | ||||||
| 10 | 35-818400A1 | ADAPTOR | 1 | AOIL HOSE (REF. #8) ENTERS IN THE BOTTOM | |||||
| 10 | 35-818400A1 | ADAPTOR | 1 | 35-860451T | AOIL HOSE (REF. #8) ENTERS IN THE SIDE | ||||
| 11 | 26-42077 | SEAL | 1 | 3 | |||||
| 12 | 22-806121 | FITTING | 1 | ||||||
| 13 | 27-91892 | GASKET | 1 | ||||||
| 14 | 71920 | ADAPTOR | 1 | 53338 | |||||
| 15 | 10-54786 | SCREW (5/16-18 X 1-1/4 IN.) | 2 | ||||||
| - | 27-806988A96 | GASKET SET | 1 | This Part is No Longer Available |
