350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Engine Mounting

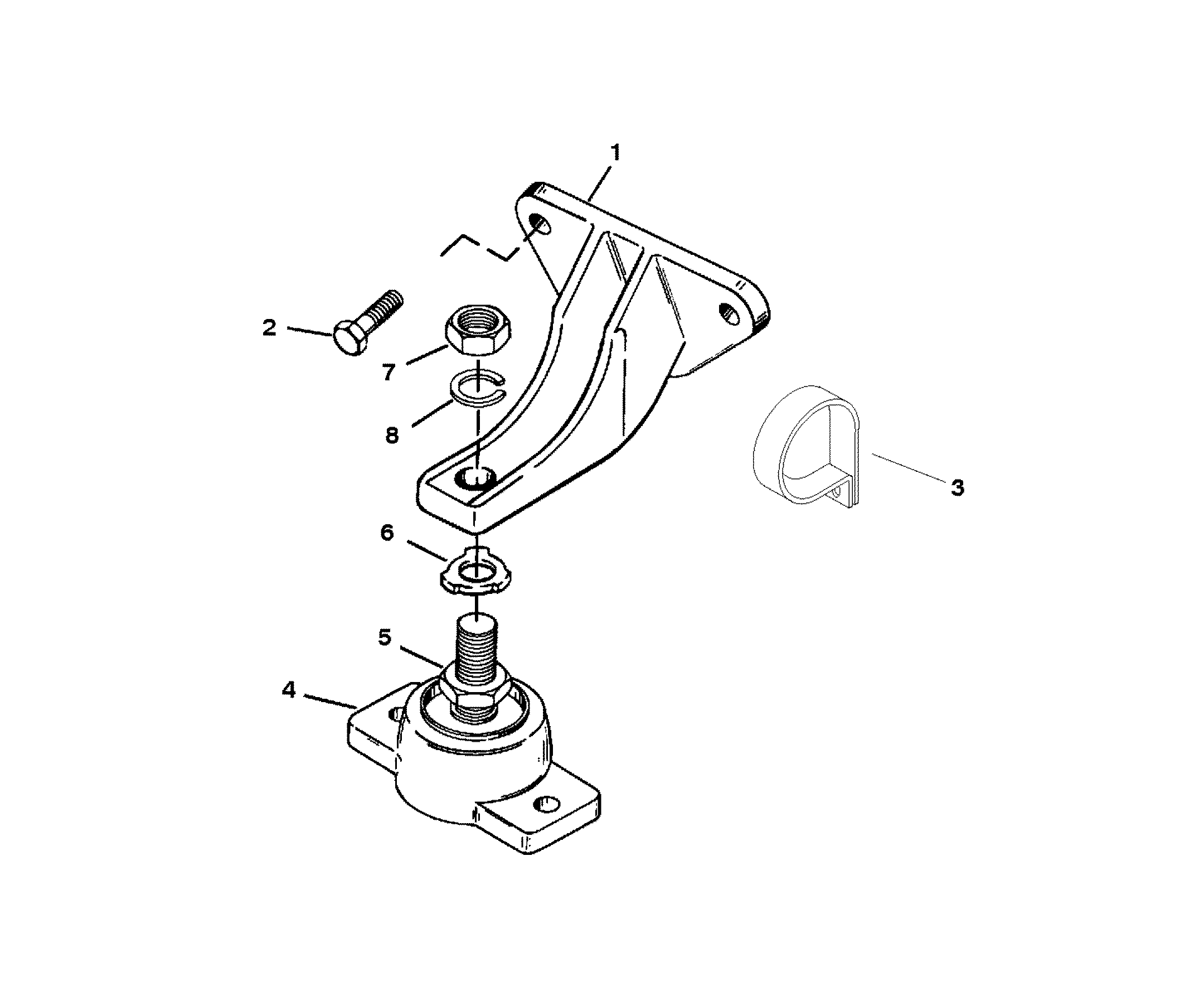

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 79550A1 | BRACKET-MOUNTING | 2 | ||||||
| 2 | 10-68101 | SCREW (3/8-16 X 1-3/8 IN.) | 2 | ||||||
| 2 | 16-805357 | STUD | 4 | ||||||
| 3 | 54-816398 | CLIP | 1 | ||||||
| 4 | 66284A2 | BASE ASSEMBLY | 2 | ||||||
| 5 | 11-20739 | NUT-JAM (3/4-16) | 2 | ||||||
| 6 | 14-12657 | WASHER-TAB | 2 | ||||||
| 7 | 11-20739 | NUT-JAM (3/4-16) | 2 | ||||||
| 8 | 13-68102 | LOCKWASHER (3/4 IN.) | 2 |
