350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Oil Pan And Oil Pump

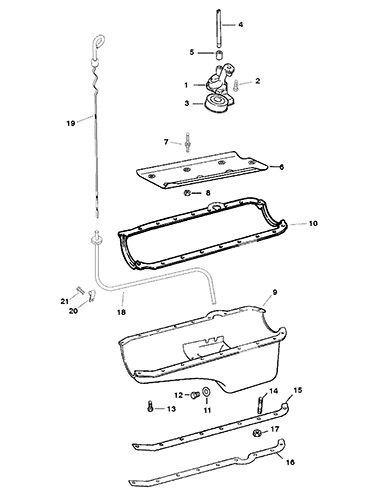

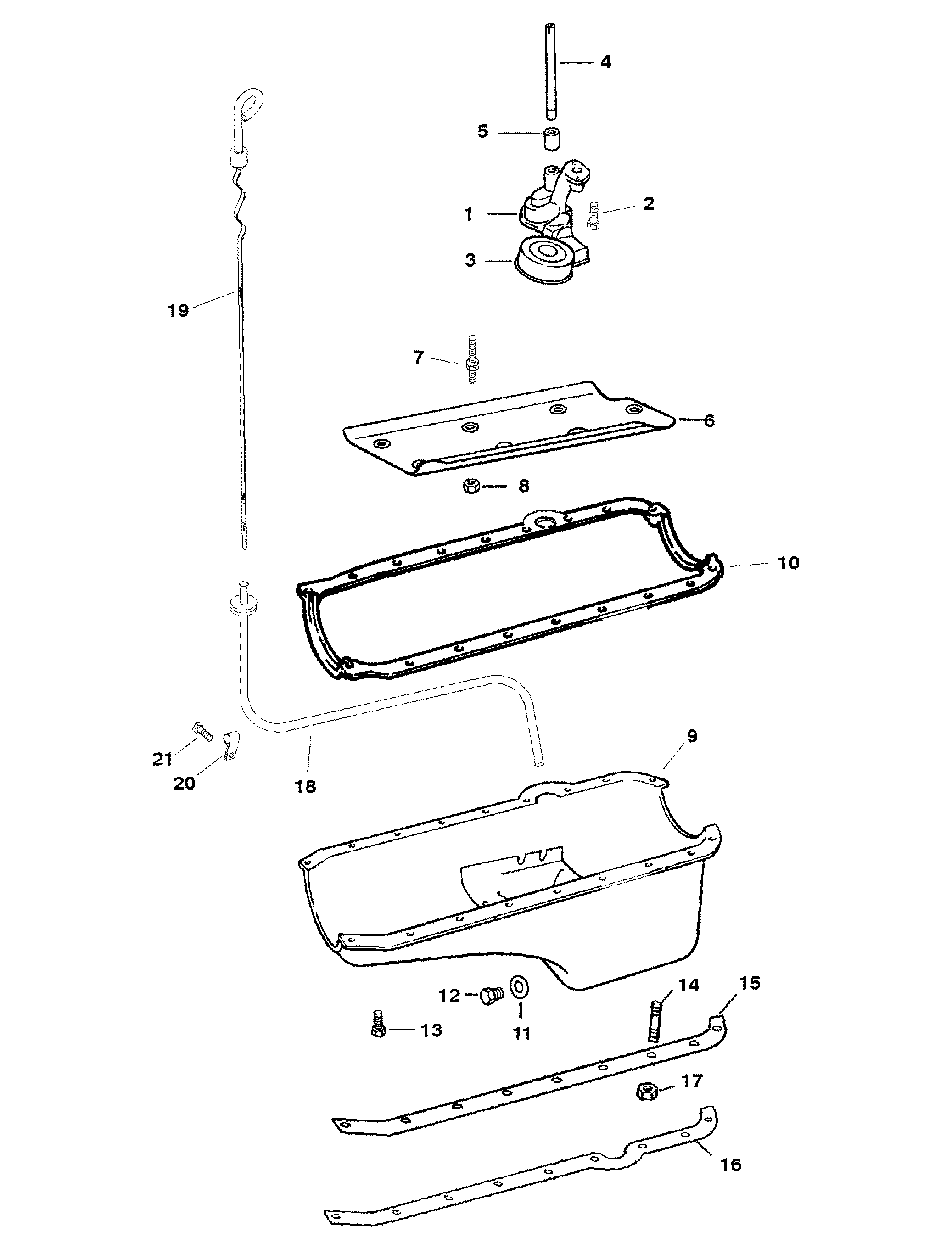

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 809907002 | PUMP-OIL | 1 | 809907 | |||||
| 2 | 10-17346 | BOLT-OIL PUMP | 1 | ||||||
| 3 | 809909 | SCREEN-OIL PUMP PICK-UP | 1 | ||||||
| 4 | 36184 | SHAFT | 1 | ||||||
| 5 | 23-36183 | RETAINER | 1 | ||||||
| 6 | 986021 | DEFLECTOR-OIL | 1 | ||||||
| 7 | 16-850090 | STUD | 5 | ||||||
| 8 | 11-845602 | NUT (3/8-16) | 5 | 11-850091 | |||||
| 9 | 809910 | OIL PAN | 1 | ||||||
| 10 | 27-138651 | GASKET-OIL PAN | 1 | 3 | |||||
| 11 | 27-8M0077608 | GASKET-DRAIN SCREW | 1 | 27-49955 | 3 | ||||
| 12 | 10-809911001 | SCREW-DRAIN (M12 X 25) | 1 | 10-809911 | |||||
| 13 | 10-14070 | SCREW (1/4-20 X 5/8 IN.) | 14 | ||||||
| 14 | 16-11989 | STUD | 4 | ||||||
| 15 | 14257 | REINFORCEMENT | 1 | (PORT) | |||||
| 16 | 14256 | REINFORCEMENT | 1 | (STARBOARD) | |||||
| 17 | 11-11971 | NUT | 4 | ||||||
| 18 | 860274A2 | TUBE-DIPSTICK | 1 | 860143A2 | |||||
| 19 | 861942T7 | DIPSTICK | 1 | 15297T | |||||
| 20 | 54-805625 | CLIP-DIPSTICK TUBE | 1 | ||||||
| 21 | 10-35366 | SCREW (1/4-20 X 9/16 IN.) | 1 | ||||||
| - | 27-806988A96 | GASKET SET-ENGINE OVERHAUL | 1 | This Part is No Longer Available |
