350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Intake Manifold And Fuel Rails

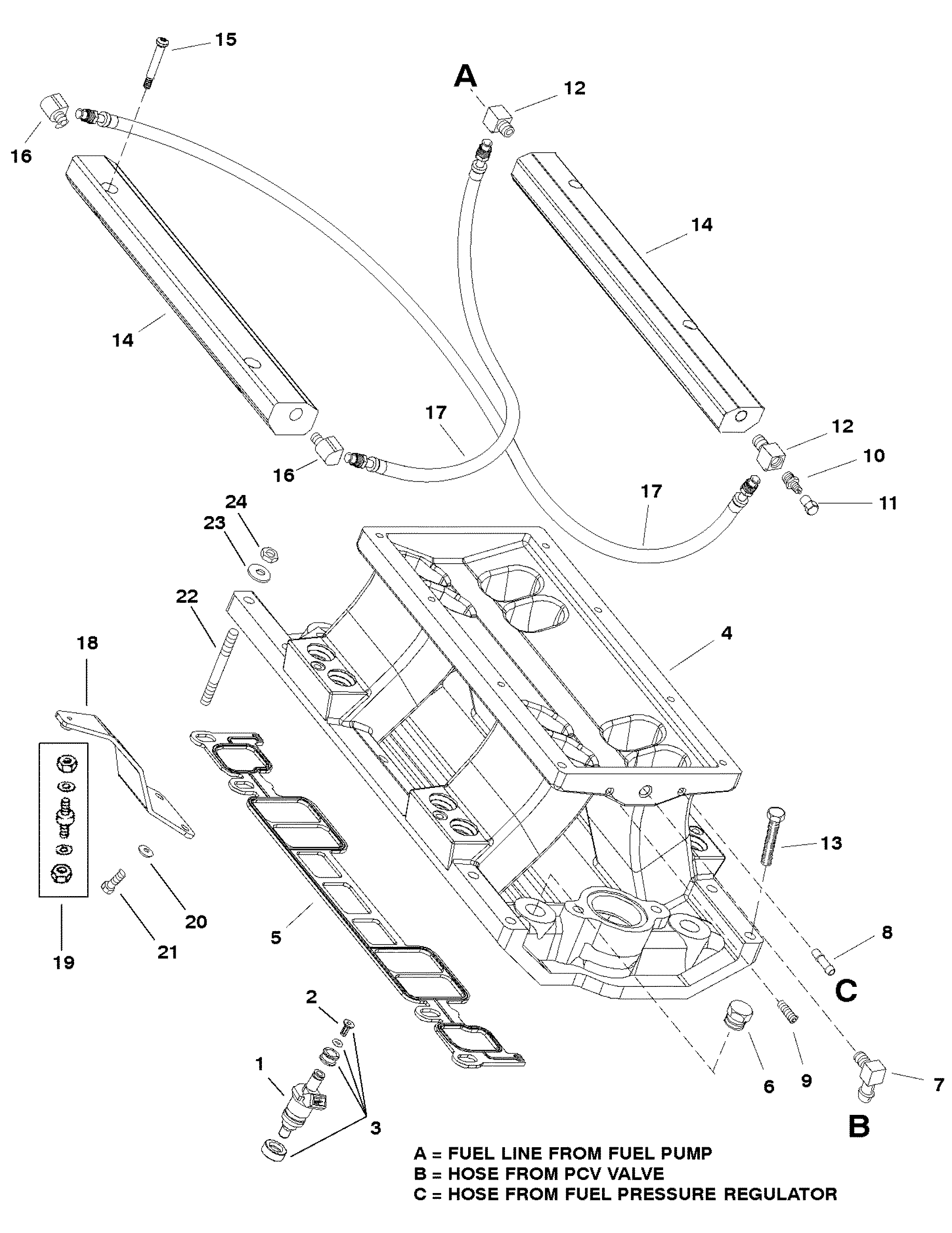

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805225A1         INJECTOR-FUEL 8

2 35-17422         FILTER 8

3 25-805511A1         O-RING KIT 8
3
4 807352A1         INTAKE MANIFOLD 1   This Part is No Longer Available
5 27-807473A1   676-9-61213     GASKET SET 1
3
6 22-860075         PLUG-PIPE 2

7 22-920071         FITTING (90 DEG.) 1 22-92007
8 22-805598         FITTING (3/16 IN. BARB) 1

9 10-35057         SCREW (1/4-20 X 5/16) 1

10 22-860266         VALVE-SCHRADER 1

11 22-805515         CAP 1

12 22-860265         FITTING-T 2

13 10-881892         SCREW (5/16-18 X 1-3/4 IN.) 6 10-75206
14 861085T         FUEL RAIL 2 806805T
15 10-806943         SCREW (1/4-20) 4

16 22-93385         ELBOW 2

17 32-861568001         FUEL LINE-FUEL RAIL TO FUEL RAIL 2 32-860264T
18 806809T         BRACKET 1   This Part is No Longer Available
19 16-97477A3         STUD KIT 1

20 12-20553         WASHER 2

21 10-805189         SCREW (3/8-16 X 3/4 IN.) 2

22 16-73563         STUD (5/16 X 2-5/16 IN.) 2   This Part is No Longer Available
23 12-20084         WASHER 2

24 11-82670911         NUT 2 11-35814
- 27-806988A96         GASKET SET-ENGINE OVERHAUL 1   This Part is No Longer Available
