350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Oil Reservoir Bottle And Bracket

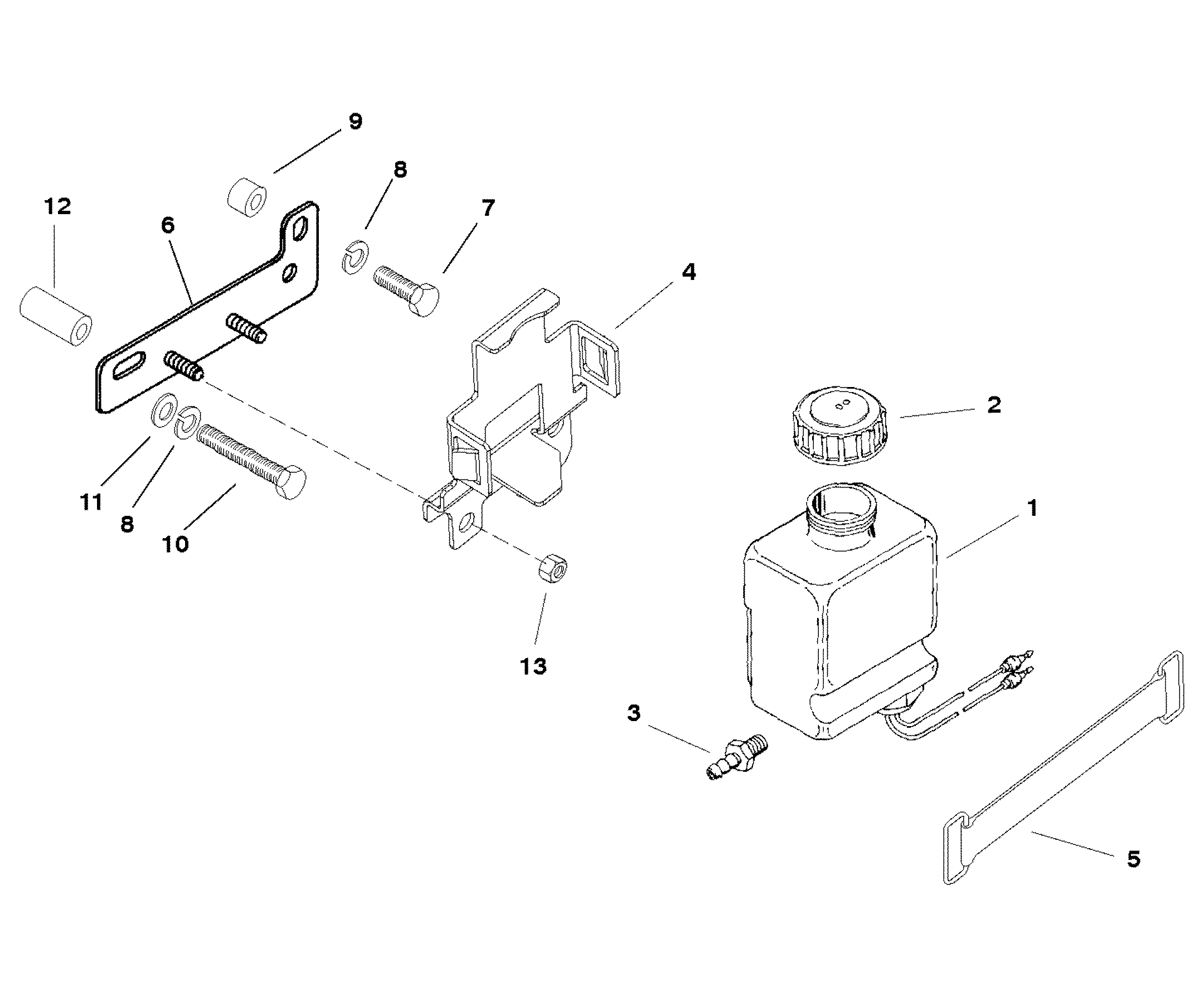

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806193A46 | BOTTLE-OIL RESERVOIR | 1 | 806193A13 | |||||
| 2 | 36-8067271 | CAP-OIL BOTTLE | 1 | 36-808625 | |||||
| 3 | 22-808624 | FITTING | 1 | ||||||
| 4 | 860065A1 | BRACKET KIT-OIL BOTTLE | 1 | ||||||
| 5 | 808023T | STRAP-BRACKET | 1 | ||||||
| 6 | 805367T | BRACKET | 1 | ||||||
| 7 | 10-37612 | SCREW (3/8-16 X 1-1/4 IN.) | 1 | ||||||
| 8 | 13-35048 | LOCKWASHER (3/8 IN.) | 2 | ||||||
| 9 | 23-91034 | SPACER (1/2 IN. LONG) | 1 | No longer made, limited availability | |||||
| 10 | 10-26486 | SCREW (3/8-16 X 2-3/8 IN.) | 1 | ||||||
| 11 | 12-20553 | WASHER | 1 | ||||||
| 12 | 23-15895 | SPACER (1-7/16 IN. LONG) | 1 | No longer made, limited availability | |||||
| 13 | 11-29250 | NUT (5/16-24) | 2 |
