| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

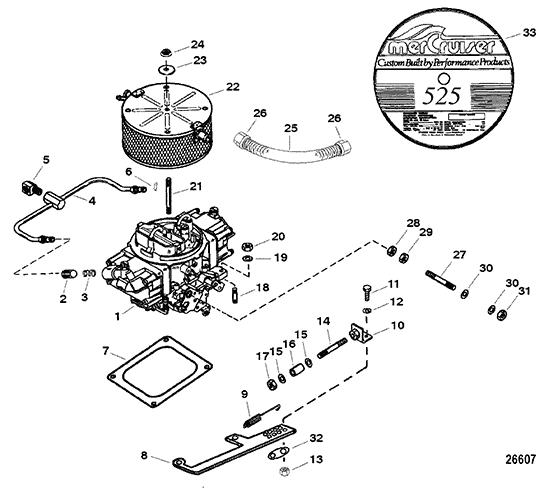

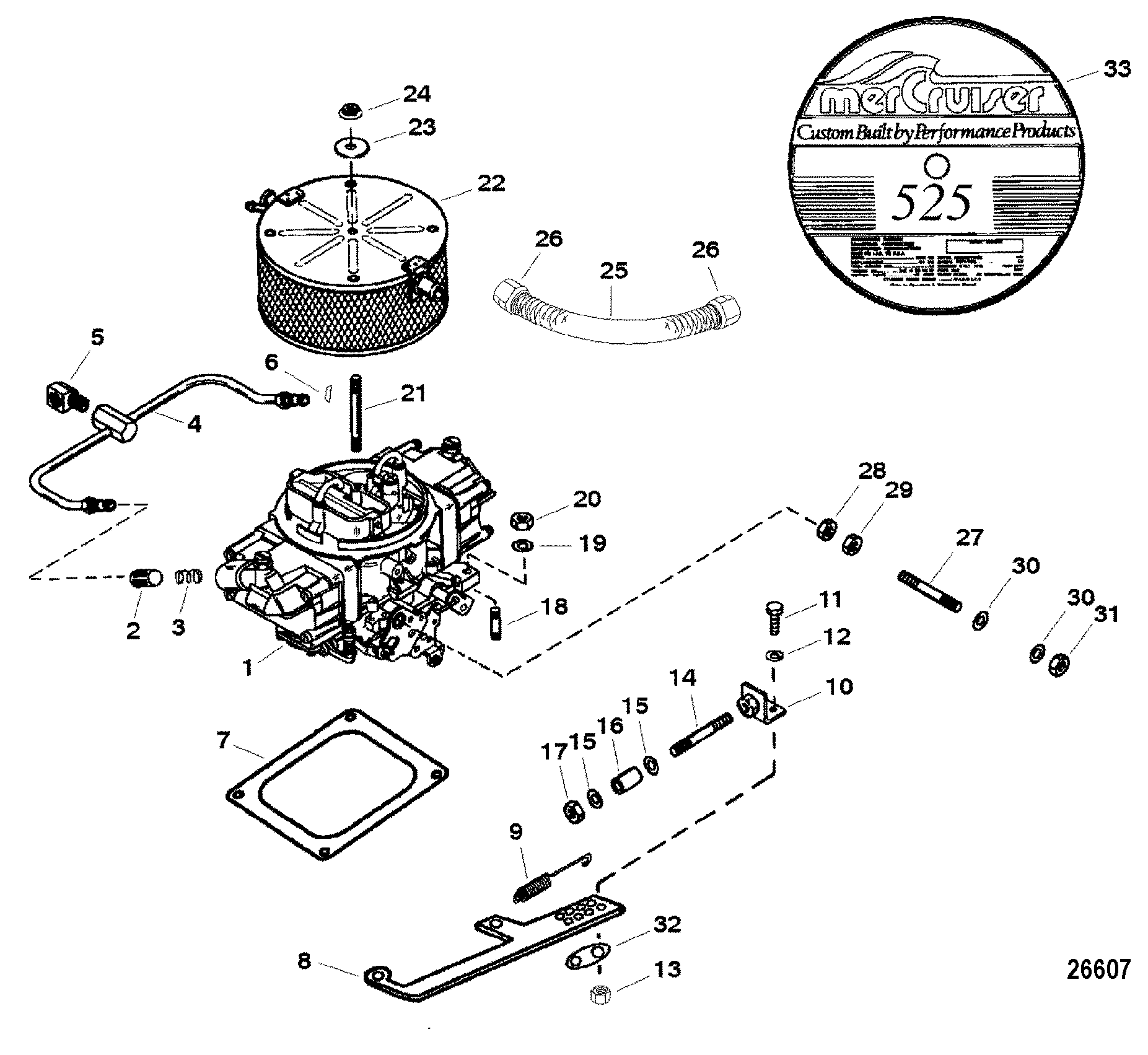

| 1 |
846000T3 |
|
|
|
|
CARBURETOR, Blue |
1 |
12377A6 |
This Part is No Longer Available |
| 2 |
24-48143 |
|
|
|
|
SPRING, Filter |
2 |
|
|
| 3 |
35-93568 |
|
|
|
|
FILTER |
2 |
|
|
| 4 |
32-12837A1 |
|
|
|
|
LINE ASSEMBLY, Fuel Inlet |
1 |
|
This Part is No Longer Available |
| 5 |
22-93385 |
|
|
|
|
FITTING, (90 Degree), Fuel Inlet Tube |
1 |
|
|
| 6 |
27-848438 |
|
|
|
|
GASKET, Flair - Copper |
2 |
|
|
| - |
8M0050786 |
|
|
|
|
REBUILD KIT, Carburetor Overhaul |
1 |
822386 |
|
| - |
27-42270A1 |
|
|
|
|
GASKET SET, Carburetor |
1 |
|
|
| - |
1396-9860 |
|
|
|
|
POWER VALVE |
1 |
|
|
| - |
32-42265 |
|
|
|
|
TUBE, Bowl Vent |
1 |
|
|
| - |
1399-650898 |
|
|
|
|
JET, Main (.125) Primary - Port |
1 |
|
|
| - |
1399-650898 |
|
|
|
|
JET, Main (.125) Primary - Starboard |
1 |
|
|
| - |
1399-650898 |
|
|
|
|
JET, Main (.125) Secondary - Port |
1 |
|
|
| - |
1399-650898 |
|
|
|
|
JET, Main (.125) Secondary - Starboard |
1 |
|
|
| 7 |
27-42270A1 |
|
|
|
|
GASKET |
1 |
27-12732 |
2 |
| 8 |
128493 |
|
|
|
|
BRACKET, Throttle |
1 |
|
This Part is No Longer Available |
| 9 |
24-897454 |
|
|
|
|
SPRING, Throttle Return |
1 |
24-32817 |
|
| 10 |
15017 |
|
|
|
|
BRACKET, Throttle |
1 |
|
|
| 11 |
10-78291 |
|
|
|
|
SCREW, (.190-24 x .500) |
2 |
|
|
| 12 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
2 |
|
|
| 13 |
11-79989 |
|
|
|
|
NUT, (#10-24) |
2 |
|
|
| 14 |
16-98851 |
|
|
|
|
STUD, Cable |
1 |
|
No longer made, limited availability |
| 15 |
12-69056 |
|
|
|
|
WASHER, (.255 x .625 x .0312), Cable Stud |
2 |
12-21631 |
|
| 16 |
23-31866 |
|
|
|
|
SPACER, (.26 x .31 x .64), Cable Stud |
1 |
|
|
| 17 |
11-826709109 |
|
|
|
|
NUT, (.250-28) |
1 |
11-35045 |
|
| 18 |
16-96108 |
|
|
|
|
STUD (.312 x 2.160) |
4 |
|
This Part is No Longer Available |
| 19 |
12-848136 |
|
|
|
|
WASHER, (.328 x .680 x .190) |
2 |
|
|
| 19 |
12-20084 |
|
|
|
|
WASHER, (.328 x .562 x .062) |
2 |
|
|
| 20 |
11-82670911 |
|
|
|
|
NUT, (.312-24) |
4 |
11-35814 |
|
| 21 |
16-30668 |
|
|
|
|
STUD, (.312-18/.312-24 x 2.812) |
1 |
|
|
| 22 |
8486201 |
|
|
|
|
ARRESTOR, Flame |
1 |
848620 |
This Part is No Longer Available |
| 23 |
12-22753 |
|
|
|
|
WASHER |
1 |
|
|
| 24 |
11-82670911 |
|
|
|
|
NUT, (.312-24) |
1 |
11-35814 |
|
| 25 |
32-821284A8 |
|
|
|
|
HOSE ASSEMBLY (16.00 Inches) Vent |
2 |
|
|
| 26 |
54-84763012 |
|
|
|
|
COVER, Clamp End, Vent Hose |
4 |
|
This Part is No Longer Available |
| 27 |
16-728091 |
|
|
|
|
STUD, (.250-20/.250-28 x 1.620), Throttle Cable To Carburetor |
1 |
16-72809 |
|
| 28 |
11-826709109 |
|
|
|
|
NUT, (.250-28) |
1 |
11-35045 |
|
| 29 |
11-21825 |
|
|
|
|
NUT, (.250-28) |
1 |
|
|
| 30 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) |
2 |
|
|
| 31 |
11-8267098 |
|
|
|
|
NUT, (.250-20) |
1 |
11-56374 |
|
| 32 |
53-782012 |
|
|
|
|
CLIP |
1 |
|
This Part is No Longer Available |
| 33 |
37-848599 |
|
|
|
|
DECAL, Flame Arrestor |
1 |
|
|
| - |
27-827014A98 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
27-827014A97 |
|
