| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

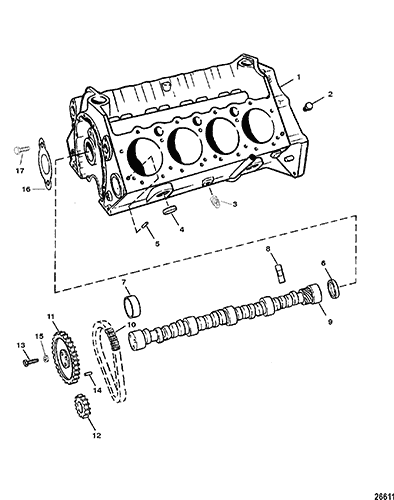

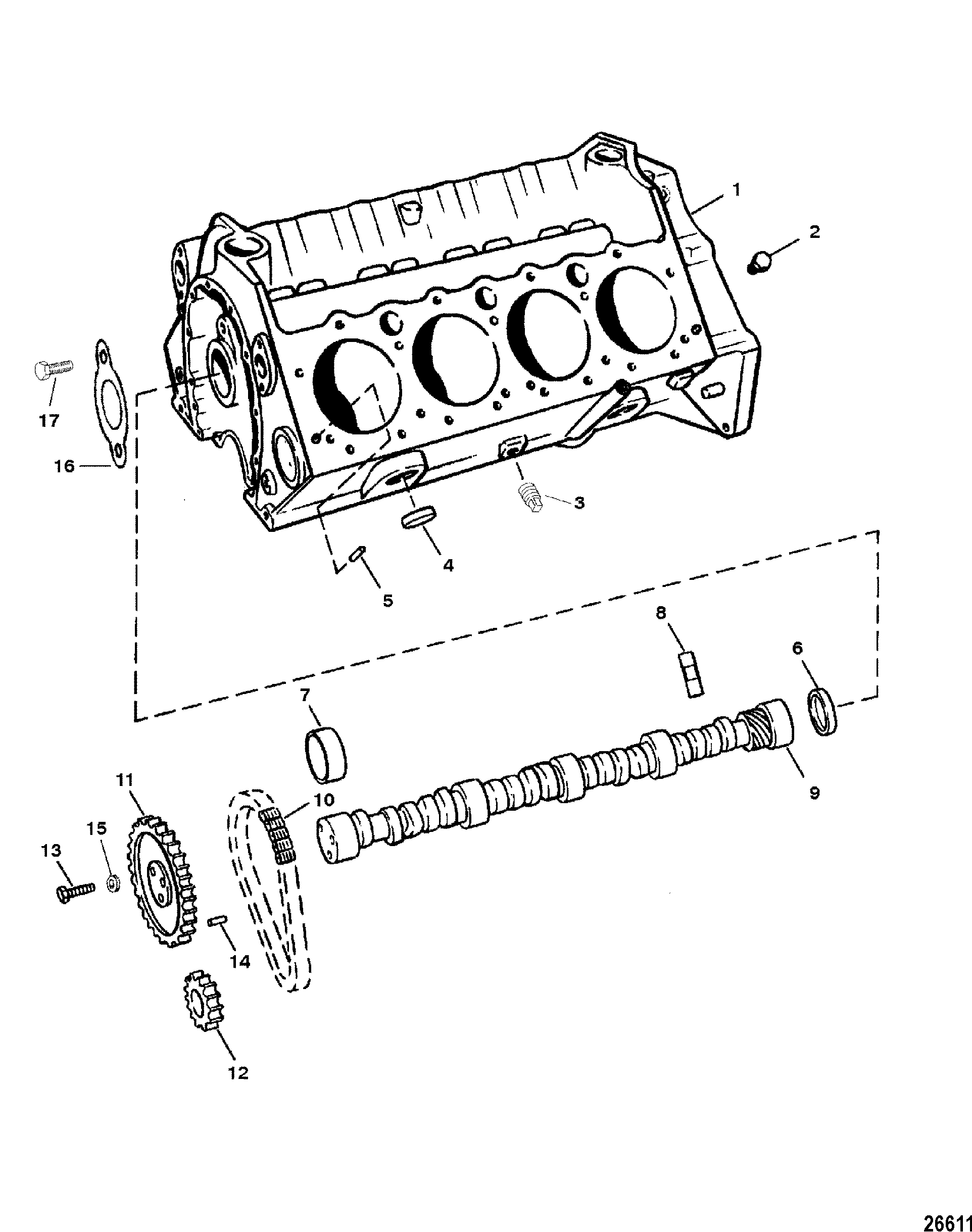

| 1 |
805541A1 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
This Part is No Longer Available - NOTE: Bravo Models With Driveline Also Require Flywheel 230-811563 And Pilot Bushing 23-49126 |
| 2 |
22-48340 |
|
|
|
|
PLUG, (.250-18 x .41) |
4 |
|
|
| 2 |
22-48358T |
|
|
|
|
PLUG, (.375) |
2 |
22-48358 |
|
| 3 |
22-36382 |
|
|
700-21887 |
|
FITTING, (.250-18) Brass |
2 |
|
|
| 4 |
22-69300 |
|
|
|
|
EXPANSION PLUG, (1.750 Diameter) |
8 |
|
|
| 5 |
17-52190 |
|
|
|
|
PIN, Dowel |
4 |
|
|
| 6 |
19-94140 |
|
|
|
|
EXPANSION PLUG |
1 |
|
|
| 7 |
23-85684 |
|
|
|
|
BEARING SET |
1 |
|
|
| 8 |
93722T |
|
|
|
|
LIFTER |
16 |
93722 |
|
| 9 |
451-7892 |
|
|
|
|
CAMSHAFT |
1 |
|
|
| 10 |
845796T |
|
|
|
|
CHAIN, Timing |
1 |
811580 |
|
| 11 |
8115781 |
|
|
|
|
SPROCKET, Camshaft |
1 |
|
|
| 12 |
43-845794T |
|
|
|
|
SPROCKET, Crankshaft |
1 |
43-811579 |
|
| 13 |
10-845942 |
|
|
|
|
SCREW, (.312-18 x .750) |
3 |
10-35339 |
|
| 14 |
17-843378 |
|
|
|
|
PIN, Dowel (.250 Diameter) |
1 |
17-35312 |
|
| 15 |
12-848136 |
|
|
|
|
WASHER, (.328 x .680 x .190) |
3 |
|
|
| 16 |
23-491241 |
|
|
|
|
PLATE, Gear Thrust |
1 |
|
This Part is No Longer Available |
| 17 |
10-848155 |
|
|
|
|
SCREW (.250-20 x .500) |
2 |
|
This Part is No Longer Available |
| - |
92-809825 |
|
|
|
|
RTV SILICONE, Metallic Blue, Where Applicable |
AR |
|
|
| - |
34227Q02 |
|
|
|
|
SEALING COMPOUND, (16 Ounce), Where Applicable |
AR |
92-342271 |
|
| - |
27-827014A98 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
27-827014A97 |
|
