525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Intake Manifold And Supercharger

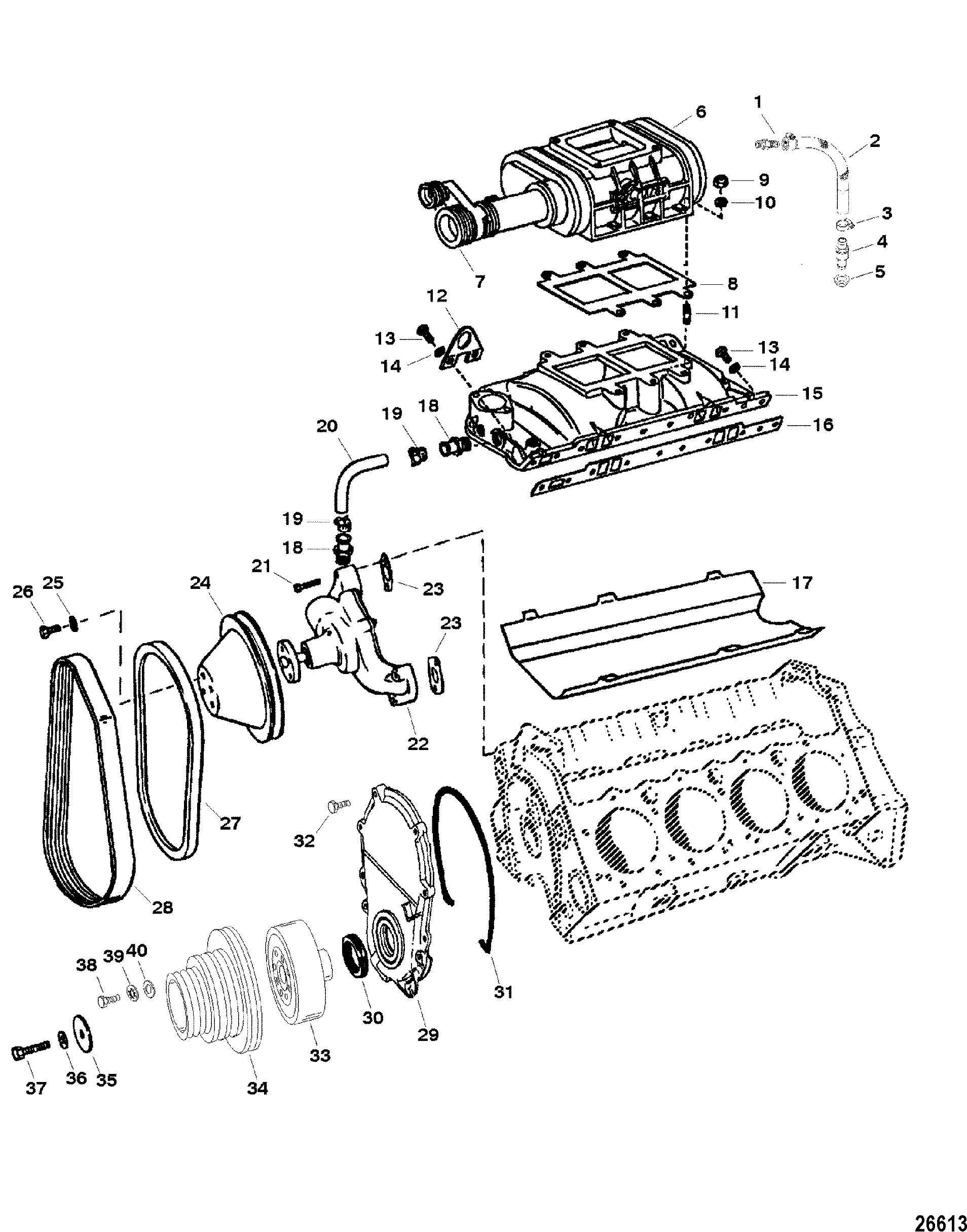

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-34982         CONNECTOR 1 22-32820
2 32-823229A3         HOSE ASSEMBLY (13.50 Inches) 1

3 54-815504104         CLAMP, Worm Gear 1

4 848578         VALVE ASSEMBLY, Crankcase Vent 1

5 25-811553         GROMMET 1
2
6 817116A3         SUPERCHARGER ASSEMBLY 1

7 8477111         PULLEY, Upper Driven 1   This Part is No Longer Available
8 27-8171181         GASKET, Intake To Supercharger 1
2
NS 22-328022         PLUG, Pipe (.125-27), Brass 1 22-328021
NS 22-36382     700-21887   FITTING, (.250-18) Brass 1

9 11-82670911         NUT, (.312-24) 6 11-35814
10 12-70132         WASHER, (.323 x .563 x .063) Stainless Steel 6

11 16-848562         STUD (.375 x 1.650) 6

12 54-64628         LIFTING EYE 2 54-646281
13 10-812567         SCREW, (.375-16 x 1.625) 8

13 10-815687         SCREW, (.375-16 x 1.250) 7

13 10-842787         SCREW, (.375-16 x 2.00) 1 10-47432
14 12-37828         WASHER, (.390 x .625 x .062) 16

15 848582T02         MANIFOLD, Intake 1 8485821
16 27-8181881         GASKET, Intake Manifold 2
2
17845756T         SHIELD, Intake 1 816073
18 22-806242         CONNECTOR, By Pass 2

19 54-815504412         CLAMP, Worm Gear 2

20 32-805987         HOSE, By Pass 1

21 10-805611         SCREW, (.375-16 x 1.750) 4 10-811574
22 811573A04         PUMP ASSEMBLY, Circulating Water 1 811573A03
23 27-49110         GASKET, Circulating Water Pump Mount 2
2
24 523491         PULLEY, Circulating Pump 1   This Part is No Longer Available
25 13-39107     700-21496   LOCKWASHER, (.312) 4

26 10-47277         SCREW, (.312-24 x .750) 4

27 57-816034Q         V BELT, Alternator Drive 1 57-816034
28 57-817113         BELT, Serpentine 1

29 845610T         COVER ASSEMBLY, Timing Chain 1 850459
30 26-8219471         SEAL, Oil 1
2
31 27-850456         GASKET, Front Cover Mount 1
2
32 10-850455         SCREW 10

33 845625T2         BALANCER 1 850460
34 8219811         PULLEY, Crankshaft 1   This Part is No Longer Available
35 12-49103         WASHER 1

36 13-14759         LOCKWASHER 1   This Part is No Longer Available
37         SCREW, (.500-20 x 2.500) 1 10-811559
38 10-357851         SCREW, (.375-16 x 3.250) 3

39 13-35048         LOCKWASHER, (.375) 3

40 12-20553         WASHER, (.406 x .734 x .063) 3

- 27-827014A98         GASKET SET, Engine Overhaul 1 27-827014A97
