| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

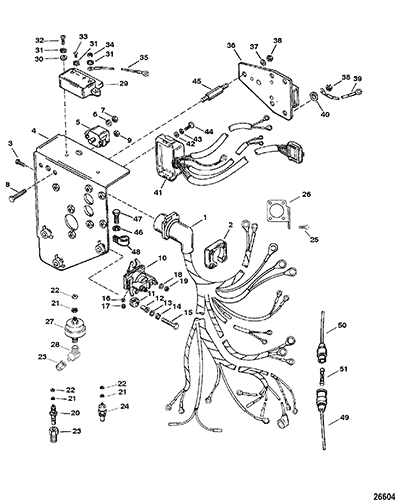

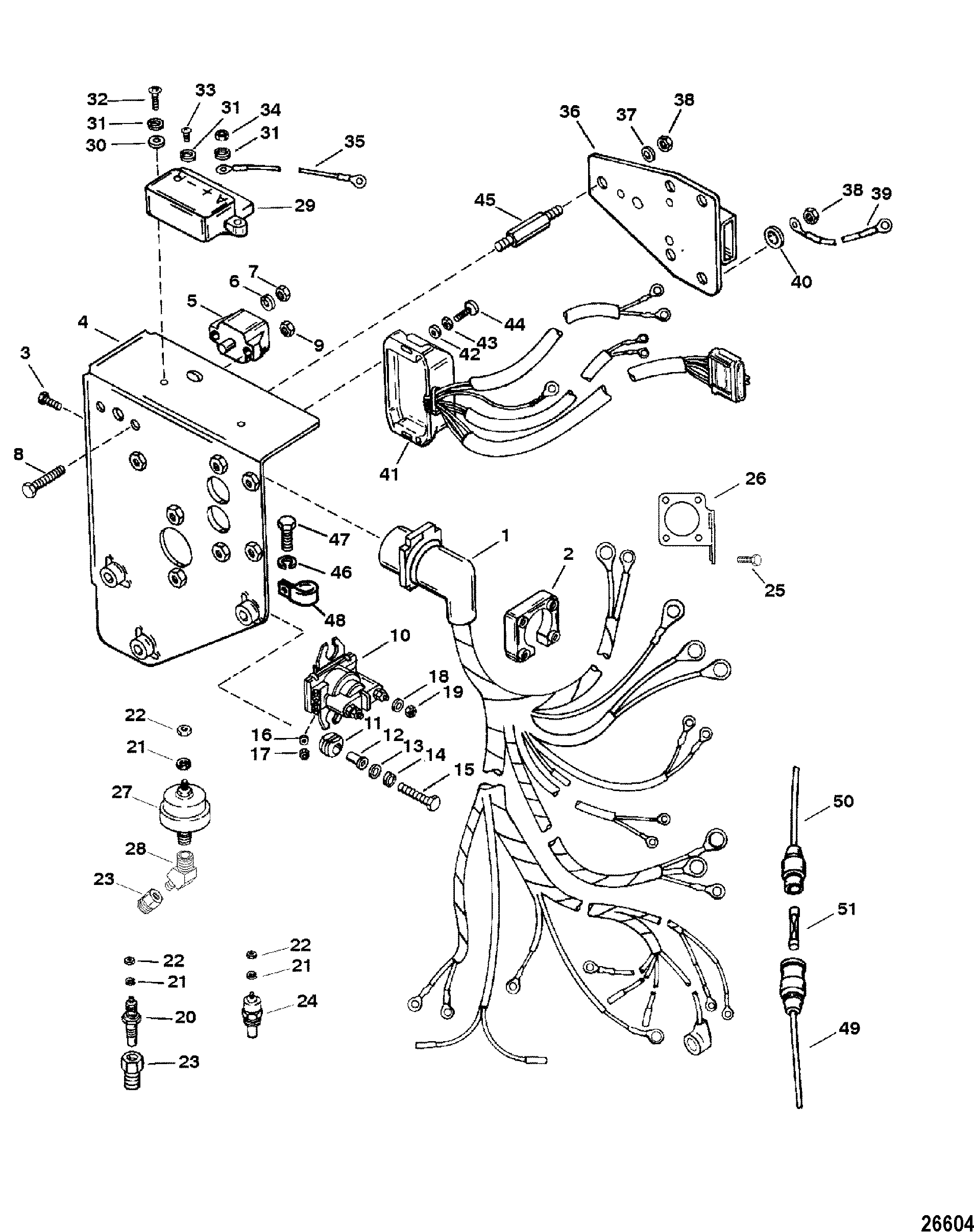

| 1 |
84-847722A2 |
|
|
|
|
HARNESS ASSEMBLY, Wiring |
1 |
|
|
| 2 |
26079A2 |
|
|
|
|
PLATE KIT, Wire Harness Mount |
1 |
|
|
| 3 |
10-15001 |
|
|
|
|
SCREW, (#8-16 x .875) |
4 |
|
|
| 4 |
8481311 |
|
|
|
|
BRACKET, Electrical Components |
1 |
|
This Part is No Longer Available |
| 5 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 6 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
2 |
|
|
| 7 |
11-68219 |
|
|
|
|
NUT, (#10-32) |
2 |
|
|
| 8 |
10-45862 |
|
|
|
|
SCREW, (#10-32 x .875) |
2 |
|
|
| 9 |
11-61356 |
|
|
|
|
NUT, (#10-32) |
2 |
|
|
| 10 |
89-818999A2 |
|
|
|
|
SOLENOID ASSEMBLY, Starter |
1 |
|
|
| 11 |
25-818967 |
|
|
|
|
GROMMET |
2 |
|
|
| 12 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 13 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) |
2 |
|
|
| 14 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
2 |
|
|
| 15 |
10-76630 |
|
|
|
|
SCREW, (.250-20 x 1.00) |
2 |
|
|
| 16 |
13-26995 |
|
|
|
|
LOCKWASHER, (#8) |
2 |
|
|
| 17 |
11-26419 |
|
|
|
|
NUT, (#8-32) |
2 |
|
|
| 18 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) |
2 |
|
|
| 19 |
11-94330 |
|
|
|
|
NUT, (.250-20) |
2 |
|
|
| 20 |
13611 |
|
|
|
|
SENDER ASSEMBLY, Oil Temperature |
1 |
|
|
| 21 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
3 |
|
|
| 22 |
11-45076 |
|
|
|
|
NUT, (#10-32) |
3 |
|
|
| 23 |
22-64013 |
|
|
|
|
FITTING, (.375 Male To .125 Female), Engine Block |
2 |
|
|
| 24 |
806490T |
|
|
|
|
SENDER ASSEMBLY, Water Temperature - Thermostat Housing |
1 |
97257A1 |
|
| 24 |
49734 |
|
|
|
|
SENDER ASSEMBLY, Water Temperature - Thermostat Housing |
OPT |
49734A1 |
Dual Engine Models |
| 25 |
10-88829 |
|
|
|
|
SCREW, (#10-24 x .500) |
4 |
|
|
| 26 |
8481911 |
|
|
|
|
BRACKET, Wire Harness |
1 |
|
|
| 27 |
8M0068784 |
|
|
|
|
SENDER ASSEMBLY, Oil Pressure |
1 |
815425 |
|
| 27 |
37293T |
|
|
|
|
SENDER ASSEMBLY, Oil Pressure |
OPT |
37293 |
Dual Engine Models |
| 28 |
22-29085 |
|
|
|
|
FITTING, Elbow (45 Degree) |
1 |
|
|
| 29 |
42600A09 |
|
|
|
|
CONTROLLER ASSEMBLY |
1 |
56-42600A3 |
|
| 30 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) |
2 |
|
|
| 31 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
7 |
|
|
| 32 |
10-41771 |
|
|
|
|
SCREW, (#10-24 x .875) |
2 |
|
Non Driveline Models |
| 32 |
10-35401 |
|
|
|
|
SCREW, (#10 x 1.00) |
2 |
|
Driveline Models |
| 33 |
10-62568 |
|
|
|
|
SCREW, (#10-16 x .375) |
1 |
|
|
| 34 |
11-68219 |
|
|
|
|
NUT, (#10-32) |
4 |
|
|
| 35 |
84-86322A17 |
|
|
|
|
CABLE ASSEMBLY, Black |
1 |
|
This Part is No Longer Available - Non Driveline Models |
| 36 |
15899A1 |
|
|
|
|
IGNITION MODULE ASSEMBLY |
1 |
814295A1 |
This Part is No Longer Available order 15899T01 |
| 37 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) |
2 |
|
|
| 38 |
11-8267098 |
|
|
|
|
NUT, (.250-20) |
3 |
11-56374 |
|
| 39 |
84-62826A6 |
|
|
|
|
CABLE ASSEMBLY, Ground - Black (13.00 Inches) |
1 |
|
|
| 40 |
13-21272 |
|
|
|
|
LOCKWASHER, (.250), Internal |
1 |
|
|
| 41 |
823755T1 |
|
|
|
|
OVERSPEED ASSEMBLY |
1 |
823755A1 |
|
| 42 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) |
2 |
|
|
| 43 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) |
2 |
|
|
| 44 |
10-41771 |
|
|
|
|
SCREW, (#10-24 x .875) |
2 |
|
|
| 45 |
16-847738 |
|
|
|
|
STUD, Electrical Bracket Mount |
3 |
|
|
| 46 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) |
3 |
|
|
| 47 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250), Bracket Mount |
3 |
|
|
| 48 |
54-848183 |
|
|
|
|
J CLIP, Electrical Harness |
1 |
|
|
| 49 |
84-95084A9 |
|
|
|
|
CABLE ASSEMBLY, (91.00 Inches), Fuse |
1 |
|
Driveline Models |
| 50 |
84-95084A10 |
|
|
|
|
CABLE ASSEMBLY, (5.00 Inches), Fuse |
1 |
|
Driveline Models |
| 51 |
88-79091 |
|
|
|
|
FUSE, 20 Ampere |
1 |
|
Driveline Models |
