525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Exhaust Header-Tailpipe (0K000012 Thru 0L415623)

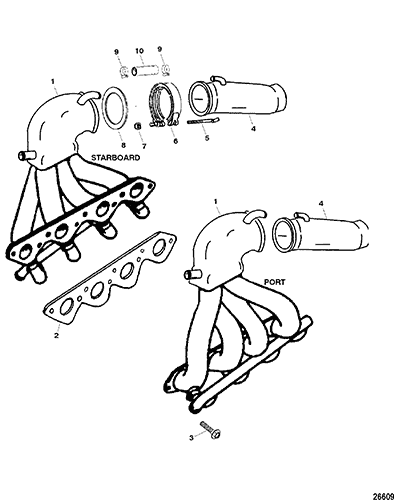

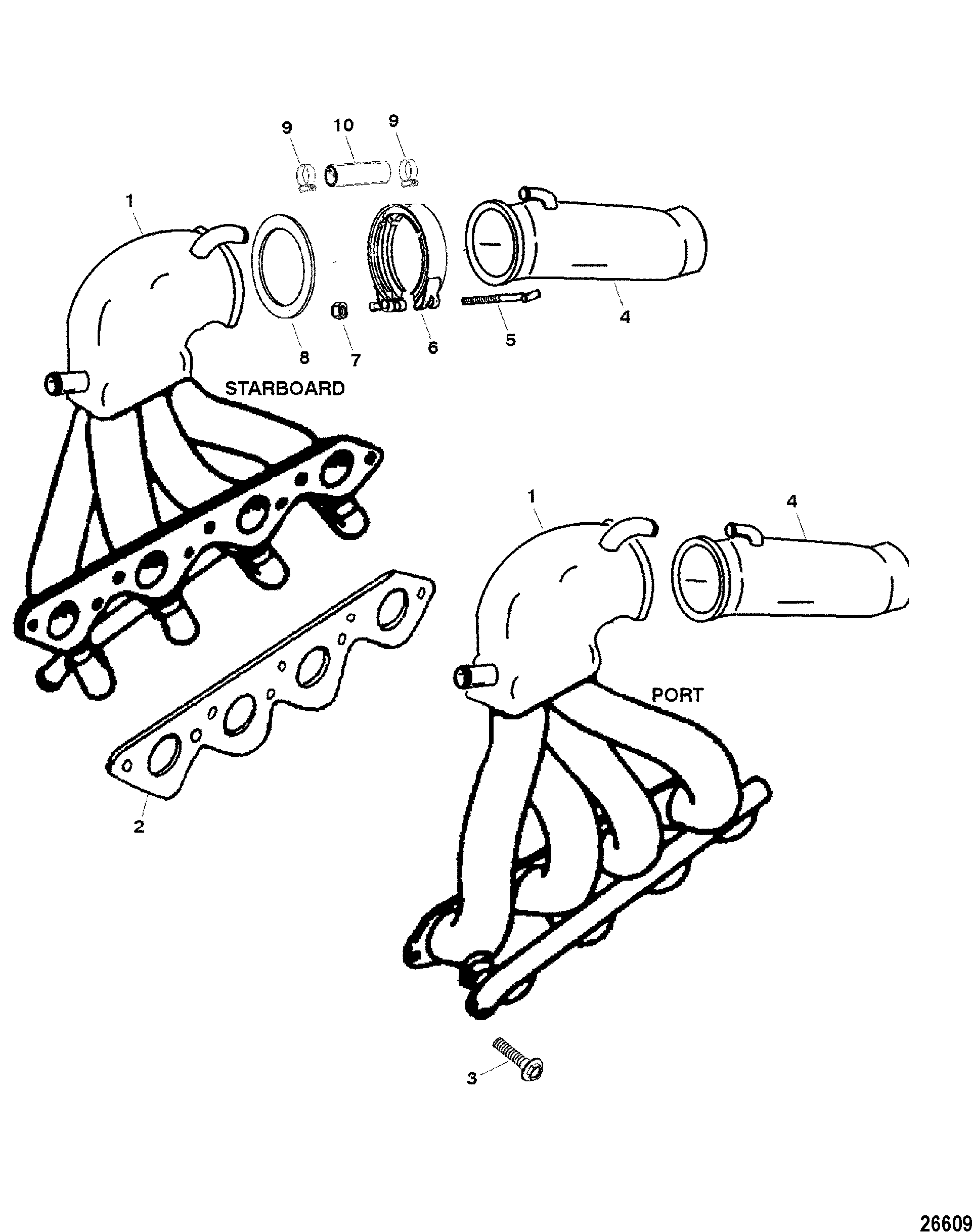

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 848736A1 | HEADER ASSEMBLY, Exhaust | 1 | This Part is No Longer Available - Starboard | |||||
| 1 | 848731A1 | HEADER ASSEMBLY, Exhaust | 1 | This Part is No Longer Available - Port | |||||
| 2 | 27-841234 | GASKET, Exhaust Header | 2 | 27-821129 | |||||
| 3 | 10-821131 | SCREW, (.375-16 x 1.00) | 16 | ||||||
| 4 | 848735A1 | TAILPIPE ASSEMBLY | 1 | This Part is No Longer Available - Starboard | |||||
| 4 | 848739A1 | TAILPIPE ASSEMBLY | 1 | This Part is No Longer Available - Port | |||||
| 5 | 10-848886 | T BOLT, (.250-20) | 2 | ||||||
| 6 | 54-848885 | CLAMP, Band Style | 2 | ||||||
| 7 | 11-8267098 | NUT, (.250-20) | 2 | 11-56374 | |||||
| 8 | 27-848254 | GASKET, Tailpipe | 2 | ||||||
| 9 | 54-180763 | CLAMP, Worm Gear | 4 | ||||||
| 10 | 32-848884 | HOSE, Jumper | 2 |
