525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Crankshaft - Pistons - Connecting Rods

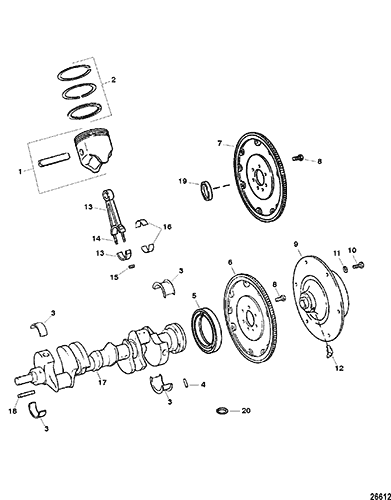

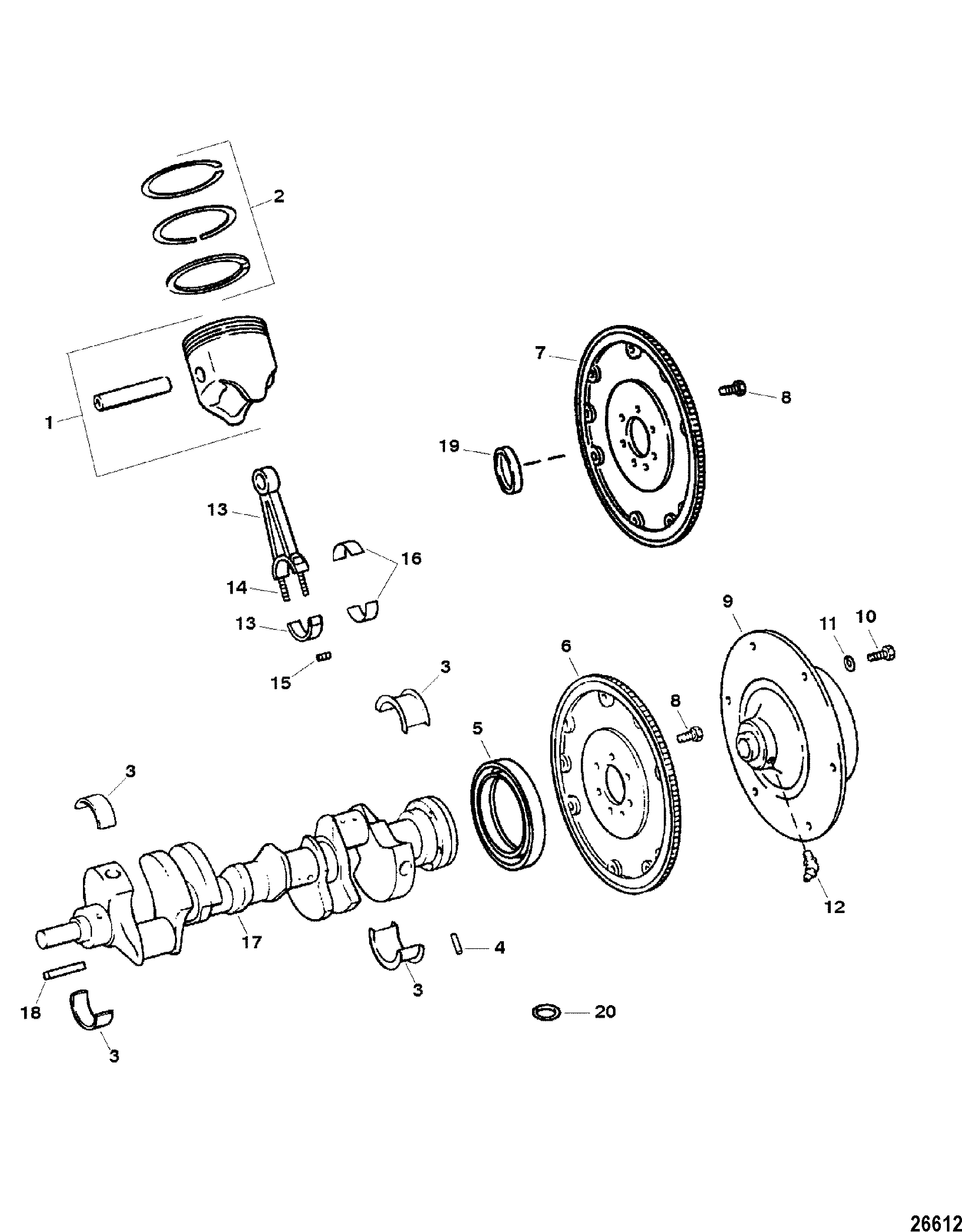

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 798-817114         PISTON ASSEMBLY, Standard 8   This Part is No Longer Available
2 39-67127         RING SET, Piston - Standard 8

1 798-817114T1         PISTON ASSEMBLY, .030 Oversize 8 798-817114A1 This Part is No Longer Available
2 39-848350030         RING SET, Piston - .030 Oversize 8

3 23-818473001         BEARING SET, Main (Standard) 1 23-818473
3 23-818474         BEARING SET, Main (.001 Undersize) AR

3 23-818475         BEARING SET, Main (.002 Undersize) AR

3 818476001         BEARING SET, Main (.010 Undersize) AR 23-818476
3 23-818477         BEARING SET, Main (.020 Undersize) AR

4 17-843378         PIN, Dowel (.250 Diameter) 1 17-35312
5 26-811554         SEAL, Oil 1
2
6 230-843374T1         FLYWHEEL 1 230-811561
7 230-8115631         FLYWHEEL 1 230-811563 Driveline Models - Gen VI
8 10-845757         SCREW, (.437-20 x 1.00) 6 10-49845
9 861523A9         COUPLER ASSEMBLY, Engine 1 18311A17 Design I
9 861523A9         COUPLER ASSEMBLY, Engine - Aluminium Hub 1
Design II
9 861523A18         COUPLER ASSEMBLY, Engine - Steel Hub 1
Design III
10 10-35091         SCREW, (.375-16 x 1.00) 6

11 12-20572         WASHER, (.390 x .750 x .093) 6

12 22-49099         FITTING, Grease 2

13 614-9641T         CONNECTING ROD ASSEMBLY 8 614-9641
14 10-19234         SCREW, (.437-20), Connecting Rod Cap 16

15 11-37493         NUT, (.375-24), Connecting Rod Cap Bolt 16

16 23-85726001         BEARING SET, Conn Rod (Standard) 8 23-85726
16 23-85727         BEARING SET, Conn Rod (.001 Undersize) AR

16 23-85728         BEARING SET, Conn Rod (.002 Undersize) AR   This Part is No Longer Available
16 23-85691         BEARING SET, Conn Rod (.010 Undersize) AR

16 23-85729         BEARING SET, Conn Rod (.020 Undersize) AR

17 429-811552         CRANKSHAFT 1

18 28-845607         KEY, Crankshaft 1 28-811558
19 23-49126         BUSHING, Pilot - Crankshaft 1
Driveline Models Only
20 25-69756         O-RING, (.500 Inch), #5 Bearing Cap Hole 1 25-811528 2
- 27-827014A98         GASKET SET, Engine Overhaul 1 27-827014A97
