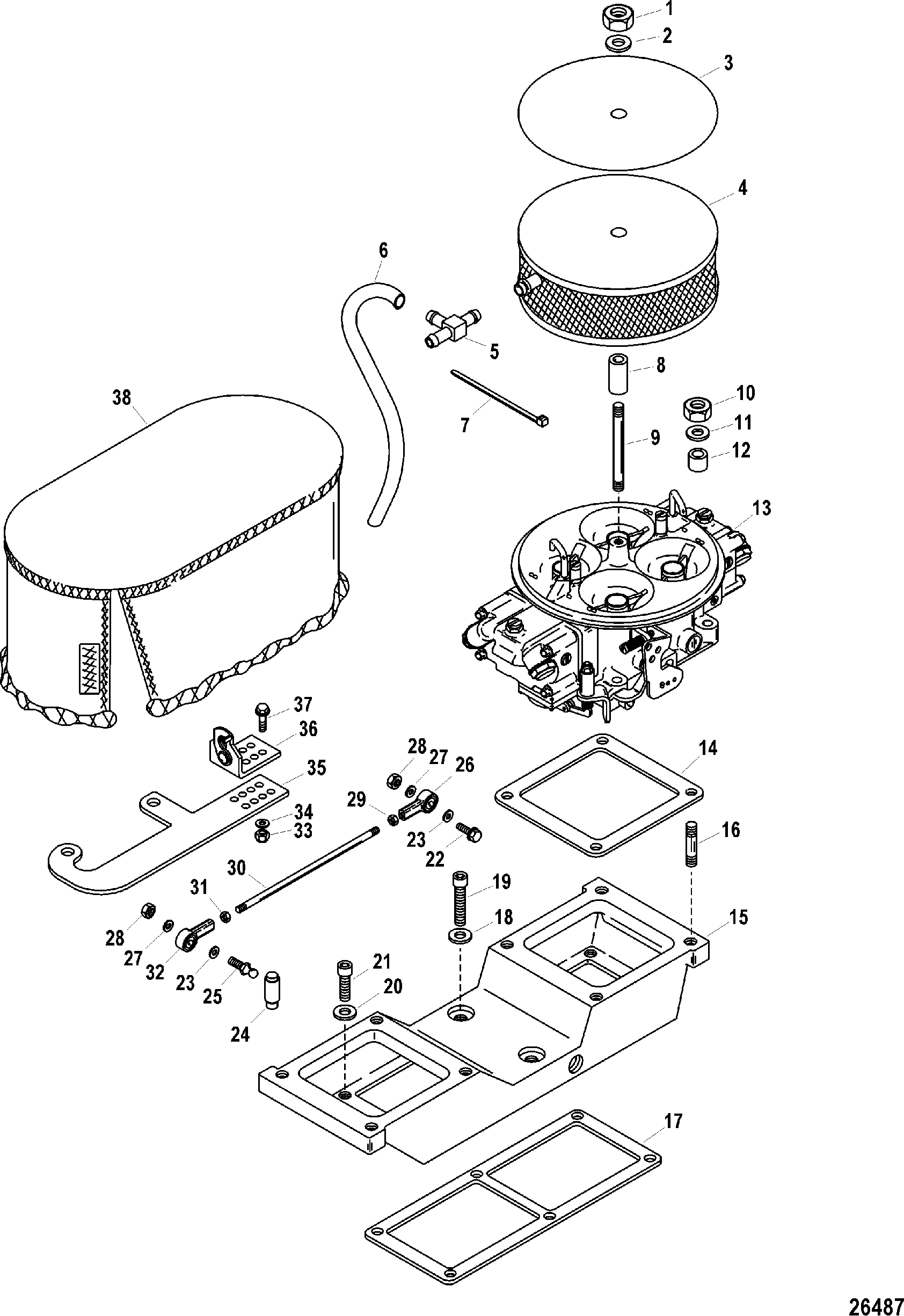

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
11-82670911 |
|
|
|
|
NUT, (.312-24) Stainless Steel |
2 |
11-35814 |
|
| 2 |
12-56720 |
|
|
|
|
WASHER, (.330 x .750 x .060) Stainless Steel |
2 |
|
|
| 3 |
37-849344 |
|
|
|
|
DECAL |
1 |
|
NOTE: Front Carburetor |
| 3 |
37-849345 |
|
|
|
|
DECAL |
1 |
|
NOTE: Rear Carburetor |
| 4 |
849343 |
|
|
|
|
ARRESTOR, Flame |
2 |
|
|
| 5 |
22-73318 |
|
|
|
|
TEE, Plastic |
1 |
|
|
| 6 |
32-8M8023638 |
|
|
|
|
TUBING, (54.00 Inches Bulk), Fuel Pump Vent - Cut 48.00 Inches |
1 |
32-84862872 |
|
| 7 |
54-816311T |
|
|
700-21465 |
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 8 |
23-840194 |
|
|
|
|
SPACER, Arrestor Stud |
2 |
|
|
| 9 |
16-840195 |
|
|
|
|
STUD, (.312-24 x 3.440), Flame Arrestor |
2 |
|
This Part is No Longer Available |
| 10 |
11-82670911 |
|
|
|
|
NUT, (.312-24) Stainless Steel |
8 |
|
|
| 11 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
8 |
|
|
| 12 |
23-849083 |
|
|
|
|
SPACER, Carburetor Mounting |
4 |
|
|
| 13 |
846000A5 |
|
|
|
|
CARBURETOR ASSEMBLY |
2 |
|
This Part is No Longer Available |
| - |
1399-650896 |
|
|
|
|
JET (.118) Primary |
4 |
|
|
| - |
1399-650898 |
|
|
|
|
JET (.125) Secondary |
4 |
|
|
| - |
1396-9860 |
|
|
|
|
POWER VALVE |
1 |
|
|
| - |
27-42270A1 |
|
|
|
|
GASKET SET, Bowl |
1 |
|
|
| - |
8M0050786 |
|
|
|
|
REBUILD KIT, Carburetor |
1 |
822386 |
|
| - |
35-93568 |
|
|
|
|
FILTER, Inlet |
2 |
|
|
| - |
24-48143 |
|
|
|
|
SPRING, Filter |
2 |
|
|
| 14 |
27-42270A1 |
|
|
|
|
GASKET, Carburetor Base |
2 |
27-12732 |
2 |
| 15 |
818731A2 |
|
|
|
|
ADAPTOR ASSEMBLY, Carburetor |
1 |
|
This Part is No Longer Available |
| 16 |
16-8M0034434 |
|
|
|
|
STUD, (.312-18/.312-24 x 1.750) |
4 |
16-78986 |
|
| 16 |
16-68167 |
|
|
|
|
STUD, (.312-18/.312-24 x 2.560) |
4 |
|
|
| 17 |
27-848080 |
|
|
|
|
GASKET, Adaptor To Supercharger |
1 |
|
2 |
| 18 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
|
| 19 |
10-822168 |
|
|
|
|
SCREW, (.375-16 x 1.750) Stainless Steel |
2 |
|
|
| 20 |
12-37828 |
|
|
|
|
WASHER, (.390 x .625 x .062) Stainless Steel |
4 |
|
|
| 21 |
10-30206 |
|
|
700-22430 |
|
SCREW, (.375-16 x 1.00) Stainless Steel |
4 |
|
|
| 22 |
10-36137 |
|
|
|
|
SCREW, (.250-28 x 1.00) |
1 |
|
|
| 23 |
12-39143 |
|
|
|
|
WASHER, (.253 x .625 x .0937) |
2 |
|
|
| 24 |
807484 |
|
|
|
|
BALL JOINT ASSEMBLY, Quick Release, Cable End |
1 |
|
|
| 25 |
16-818708 |
|
|
|
|
STUD (.250-28 x Special) Throttle Cable |
1 |
|
|
| 26 |
847881 |
|
|
|
|
ROD END, Right Hand |
1 |
|
|
| 27 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 28 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT, (.250-28) Stainless Steel |
2 |
|
|
| 29 |
11-20013 |
|
|
|
|
NUT, (.250-28), Right Hand |
1 |
|
|
| 30 |
818710 |
|
|
|
|
ROD, Throttle Linkage |
1 |
|
|
| 31 |
11-20754 |
|
|
|
|
NUT, (.250-28), Left Hand |
1 |
|
This Part is No Longer Available |
| 32 |
818709 |
|
|
|
|
ROD END, Left Hand |
1 |
|
|
| 33 |
11-8267096 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 34 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
2 |
|
|
| 35 |
818705001 |
|
|
|
|
BRACKET, Cable Attaching |
1 |
818705 |
|
| 36 |
807485T |
|
|
|
|
BRACKET ASSEMBLY, Cable Lock |
1 |
|
|
| 37 |
10-89766 |
|
|
|
|
SCREW, (#10-32 x .620) Stainless Steel |
2 |
|
|
| 38 |
849106 |
|
|
|
|
COVER, Carburetor |
1 |
|
|
| - |
27-840277A1 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
This Part is No Longer Available |
