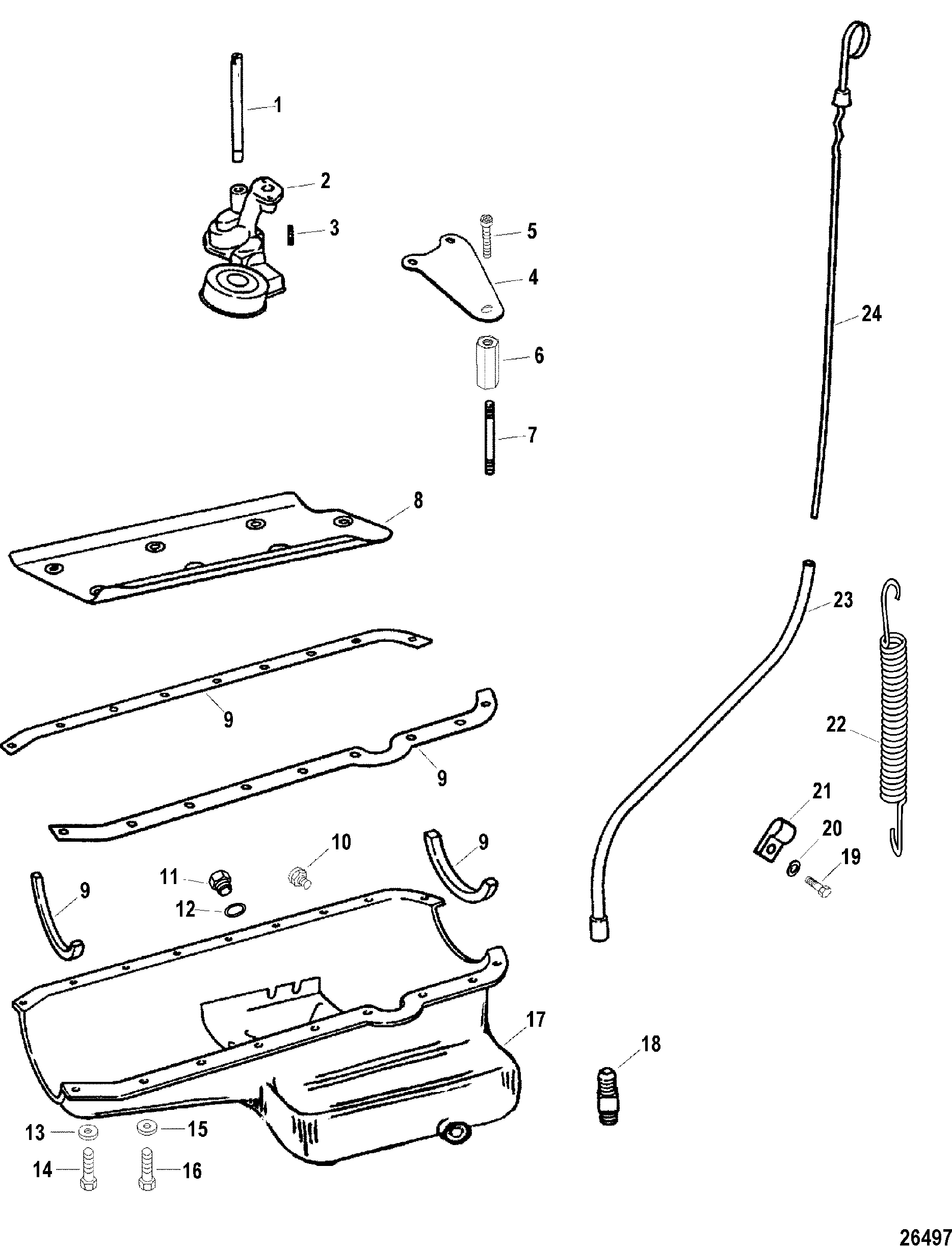

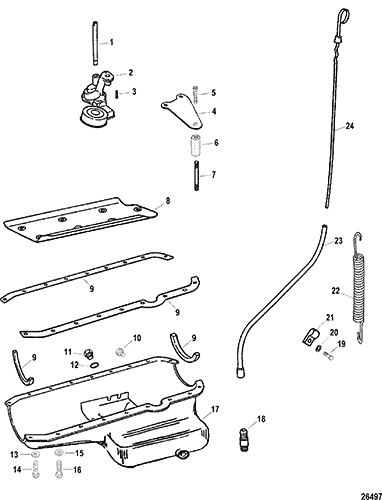

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
848511 |
|
|
|
|
SHAFT, Oil Pump |
1 |
|
5 |
| 2 |
98337A7 |
|
|
|
|
PUMP ASSEMBLY, Oil |
1 |
|
This Part is No Longer Available 5 |
| 3 |
814444 |
|
|
|
|
STUD KIT |
1 |
|
5 |
| 4 |
849529A1 |
|
|
|
|
BRACE KIT, Oil Pump |
1 |
|
5 |
| 5 |
10-849660 |
|
|
|
|
SCREW, (.375-24 x 1.00) |
1 |
|
|
| 6 |
11-849530 |
|
|
|
|
NUT, Special |
1 |
|
|
| 7 |
16-816254 |
|
|
|
|
STUD, Special |
1 |
|
|
| 8 |
848543 |
|
|
|
|
WINDAGE TRAY |
1 |
|
5 |
| 9 |
27-848305 |
|
|
|
|
GASKET SET, Oil Pan |
1 |
|
2,5 |
| 10 |
19-8154731 |
|
|
|
|
PLUG, Drain (.875-14) |
1 |
|
5 |
| 11 |
22-36373 |
|
|
|
|
PLUG, (.375-18) Hex - Steel |
2 |
|
5 |
| 12 |
25-849088 |
|
|
|
|
O-RING, (.755 x .097) |
2 |
|
5 |
| 13 |
12-20546 |
|
|
|
|
WASHER, (.330 x .500 x .060) |
14 |
|
5 |
| 14 |
10-861846 |
|
|
|
|
SCREW, (.312-18 x .750) |
12 |
10-47576 |
5 |
| 14 |
10-54523 |
|
|
|
|
SCREW, (.312-18 x 1.00) |
2 |
|
5 |
| 15 |
12-20028 |
|
|
|
|
WASHER, (.265 x .437 x .060) |
2 |
|
5 |
| 16 |
10-92160 |
|
|
|
|
SCREW, (.250-20 x .750) Stainless Steel |
2 |
|
5 |
| 17 |
817025T1 |
|
|
|
|
PAN, Oil |
1 |
|
5 |
| 18 |
22-42277 |
|
|
|
|
FITTING |
1 |
|
This Part is No Longer Available 5 |
| 19 |
10-817505 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
1 |
|
5 |
| 20 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
1 |
|
5 |
| 21 |
54-822279 |
|
|
|
|
CLIP, Oil Tube Support |
1 |
|
5 |
| 22 |
24-849398 |
|
|
|
|
SPRING |
1 |
|
5 |
| 23 |
847599 |
|
|
|
|
TUBE, Oil Dipstick |
1 |
|
5 |
| 24 |
94010 |
|
|
|
|
DIPSTICK |
1 |
|
This Part is No Longer Available 5 |
| - |
27-840277A1 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
This Part is No Longer Available |
