| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

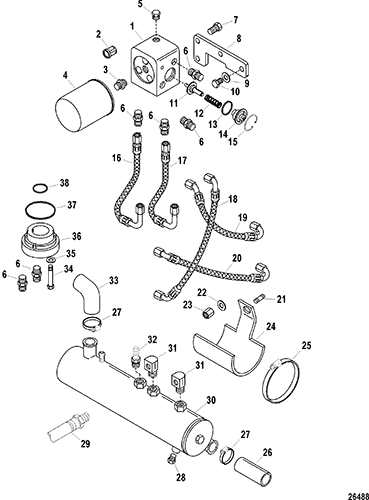

| 1 |
848555T |
|
|
|
|
ADAPTOR, Oil Thermostat Housing |
1 |
|
|
| 2 |
99889 |
|
|
|
|
VALVE, Bypass |
1 |
|
|
| 3 |
22-805632 |
|
|
|
|
CONNECTOR, Oil Filter |
1 |
|
|
| 4 |
35-881126K01 |
|
|
|
|
FILTER, Oil |
1 |
35-16595T1 |
|
| 5 |
22-32804 |
|
|
|
|
PLUG, (.500-14) |
1 |
|
|
| 6 |
22-84772013 |
|
|
|
|
FITTING, Straight |
6 |
|
|
| 7 |
10-99204 |
|
|
|
|
SCREW, (.437-14 x 1.00) Stainless Steel |
2 |
|
|
| 8 |
8485562 |
|
|
|
|
BRACKET |
1 |
|
|
| 9 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
|
| 10 |
10-65210 |
|
|
|
|
SCREW, (.375-16 x 1.00), Bracket To Cylinder Head |
2 |
|
|
| 11 |
816163 |
|
|
|
|
THERMOSTAT, Oil |
1 |
|
|
| 12 |
24-816162 |
|
|
|
|
SPRING |
1 |
|
|
| 13 |
25-864701 |
|
|
|
|
O-RING, (1.112 x .103) |
1 |
25-47632 |
2 |
| 14 |
8161651 |
|
|
|
|
COVER, Oil Thermostat |
1 |
|
|
| 15 |
53-848571 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 16 |
32-821284A15 |
|
|
|
|
HOSE ASSEMBLY (18.88 Inches) Adaptor To Filter Out |
1 |
|
This Part is No Longer Available |
| 17 |
32-821284A16 |
|
|
|
|
HOSE ASSEMBLY (13.38 Inches) Filter To Adaptor Return |
1 |
|
This Part is No Longer Available |
| 18 |
32-821284A20 |
|
|
|
|
HOSE ASSEMBLY (23.18 Inches) Filter To Cooler Out |
1 |
|
|
| 19 |
32-8M0010793 |
|
|
|
|
HOSE ASSEMBLY (19.50 Inches) Return Cooler To Filter |
1 |
32-821284A18 |
|
| 20 |
32-821284A17 |
|
|
|
|
HOSE ASSEMBLY (23.88 Inches) Cooler To Cooler |
1 |
|
|
| 21 |
16-72742 |
|
|
|
|
STUD, (.312-18/.324-24 x 1.090) |
1 |
|
|
| 22 |
12-56720 |
|
|
|
|
WASHER, (.330 x .750 x .060) Stainless Steel |
1 |
|
|
| 23 |
11-82670911 |
|
|
|
|
NUT, (.312-24) Stainless Steel |
1 |
|
|
| 24 |
849324 |
|
|
|
|
BRACKET, Oil Cooler |
1 |
|
|
| 25 |
54-815504352 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 26 |
32-8M0062665 |
|
|
|
|
HOSE, (48.00 Inches Bulk), Cut 5.00 Inches - Water Pump To Cooler |
1 |
32-5346170 |
|
| 27 |
54-180766 |
|
|
|
|
CLAMP, Worm Gear |
4 |
|
|
| 28 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass |
1 |
|
|
| 29 |
32-475166 |
|
|
|
|
HOSE ASSEMBLY, (30.00 Inches) |
2 |
|
|
| 30 |
849115T01 |
|
|
|
|
COOLER, Oil, Transmission And Power Steering |
1 |
849115 |
|
| 31 |
22-47629 |
|
|
|
|
ELBOW, 90 Degree |
2 |
|
|
| 32 |
22-70834 |
|
|
|
|
CONNECTOR, (.375-18) Straight - Brass |
1 |
|
|
| 33 |
32-896998 |
|
|
|
|
HOSE, Molded, Cooler To Flywheel Housing |
1 |
32-64346 |
|
| 34 |
10-67450 |
|
|
|
|
SCREW, (.312-18 x 2.250) |
2 |
|
5 |
| 35 |
12-36533 |
|
|
|
|
WASHER, (.328 x .562 x .0312) Copper |
2 |
|
2,5 |
| 36 |
8141531 |
|
|
|
|
ADAPTOR, Oil Filter |
1 |
|
5 |
| 37 |
25-32507 |
|
|
|
|
O-RING, (3.359 x .139) |
1 |
|
2,5 |
| 38 |
25-26855 |
|
676-9-76541 |
|
|
O-RING, (1.609 x .139) |
1 |
|
2,5 |
| - |
27-840277A1 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
This Part is No Longer Available |
