| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

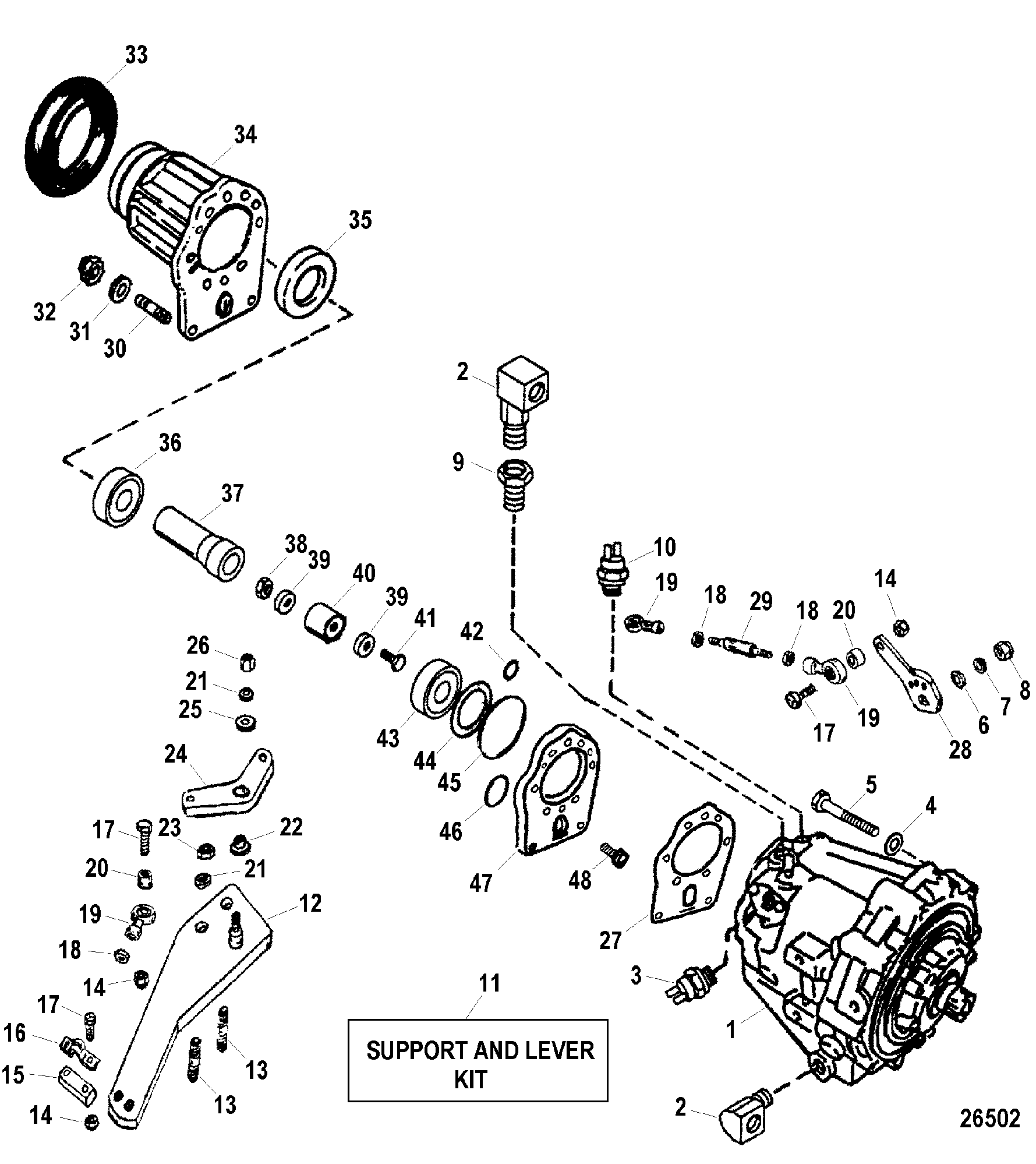

| 1 |
842979A04 |
|
|
|
|
TRANSMISSION ASSEMBLY, Complete |
1 |
849317A4 |
This Part is No Longer Available |
| 1 |
842979A03 |
|
|
|
|
TRANSMISSION ASSEMBLY |
1 |
849317A3 |
This Part is No Longer Available |
| 2 |
22-47629 |
|
|
|
|
ELBOW, 90 Degree, Transmission To Oil Hose |
2 |
|
|
| 3 |
47613 |
|
|
|
|
SWITCH, Neutral |
1 |
|
|
| 4 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
6 |
|
|
| 5 |
10-60179 |
|
|
|
|
SCREW, (.437-14 x 3.500) |
6 |
|
|
| 6 |
12-20722 |
|
|
|
|
WASHER, (.328 x .625 x .060) |
1 |
|
This Part is No Longer Available |
| 7 |
13-26993 |
|
|
|
|
LOCKWASHER, (.312) |
1 |
|
|
| 8 |
11-22053 |
|
|
|
|
NUT, (.312-24) |
1 |
|
|
| 9 |
22-88517 |
|
|
|
|
FITTING, Reducing |
1 |
|
|
| 10 |
87-88031 |
|
|
|
|
SWITCH ASSEMBLY, Oil Temperature |
1 |
|
|
| 11 |
847145T1 |
|
|
|
|
SUPPORT AND LEVER KIT, Universal Joint |
1 |
|
|
| 12 |
8M0053746 |
|
|
|
|
PLATE ASSEMBLY, Shift Linkage Mount |
1 |
847175 |
|
| 13 |
16-846453 |
|
|
|
|
STUD, (.375-16 x 1.250) |
2 |
|
|
| 14 |
11-8267096 |
|
|
|
|
NUT, (#10-32) |
5 |
11-34059 |
|
| 15 |
846344 |
|
|
|
|
SPACER, Cable Bracket |
1 |
|
|
| 16 |
54-846341 |
|
|
|
|
BRACKET, Shift Cable |
1 |
|
|
| 17 |
10-34994 |
|
|
|
|
SCREW, (#10-32 x 1.00) Stainless Steel |
5 |
|
|
| 18 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
3 |
|
|
| 19 |
846786 |
|
|
|
|
ROD END |
3 |
|
|
| 20 |
23-846787 |
|
|
|
|
SPACER, Rod End |
3 |
|
|
| 21 |
12-841388 |
|
|
|
|
WASHER, (.410 x .810 x .050) Stainless Steel |
3 |
|
|
| 22 |
23-812707 |
|
|
|
|
BUSHING |
1 |
|
|
| 23 |
11-826709112 |
|
|
|
|
NUT, (.375-16) |
2 |
11-846869 |
|
| 24 |
847025 |
|
|
|
|
ARM, Shift Cable |
1 |
|
|
| 25 |
12-846783 |
|
|
|
|
WASHER, (.562 x 1.250 x .062) Nylon |
1 |
|
|
| 26 |
11-826709113 |
|
|
|
|
NUT, (.375-24) Stainless Steel |
1 |
|
|
| 27 |
27-47903 |
|
|
|
|
GASKET, Transmission To Support Housing |
1 |
|
|
| 28 |
847052 |
|
|
|
|
LEVER, Shift |
1 |
|
|
| 29 |
16-846964 |
|
|
|
|
STUD, (#10-32 x 2.09), Shift Rod |
1 |
|
|
| 30 |
16-847030 |
|
|
|
|
STUD, (.437-14/.437-20 x 3.00) |
6 |
|
|
| 30 |
16-847031 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.750) |
2 |
|
|
| 31 |
12-842922 |
|
|
|
|
WASHER, (.450 x .750 x .060) Stainless Steel |
8 |
|
|
| 32 |
11-34933 |
|
676-9-72004 |
|
|
NUT, (.437-20) Stainless Steel |
8 |
11-82671015 |
|
| 33 |
846693 |
|
|
|
|
SEAL, Housing |
1 |
|
|
| 34 |
8M0050742 |
|
|
|
|
SUPPORT ASSEMBLY, Universal Joint |
1 |
847123A1 |
|
| 34 |
8M0054154 |
|
|
|
|
HOUSING, Universal Joint Support |
1 |
8469611 |
|
| 35 |
26-846497 |
|
|
|
|
SEAL, Inner Coupler |
1 |
|
|
| 36 |
31-846477A1 |
|
|
|
|
BEARING SET, Cup And Cone, Rear Coupler |
1 |
|
|
| 37 |
8M0050930 |
|
|
|
|
SHAFT, Coupling |
1 |
846960 |
This Part is No Longer Available |
| 38 |
11-82670910 |
|
|
|
|
NUT, (.312-18) Stainless Steel |
1 |
|
|
| 39 |
12-846967 |
|
|
|
|
WASHER, (.376 x 1.430 x .250) |
2 |
|
|
| 40 |
23-847027 |
|
|
|
|
SEAL, Coupler |
1 |
|
|
| 41 |
10-847209 |
|
|
|
|
SHOULDER SCREW, (.375-16) |
1 |
|
|
| 42 |
25-847033 |
|
|
|
|
O-RING, (.620 x .09) |
1 |
|
|
| 43 |
31-846695A1 |
|
|
|
|
BEARING SET, Cup And Cone, Front Coupler |
1 |
|
|
| 44 |
15-847029A1 |
|
|
|
|
SHIM SET, Bearing |
1 |
|
|
| 45 |
25-841807 |
|
|
|
|
O-RING, (3.500 x .103) |
1 |
|
|
| 46 |
25-847034 |
|
|
|
|
O-RING, (1.310 x .09) |
1 |
|
|
| 47 |
8470121 |
|
|
|
|
SPACER, Universal Joint |
1 |
|
|
| 48 |
10-76769 |
|
|
|
|
SCREW, (.375-16 x .880) |
3 |
|
|
