| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

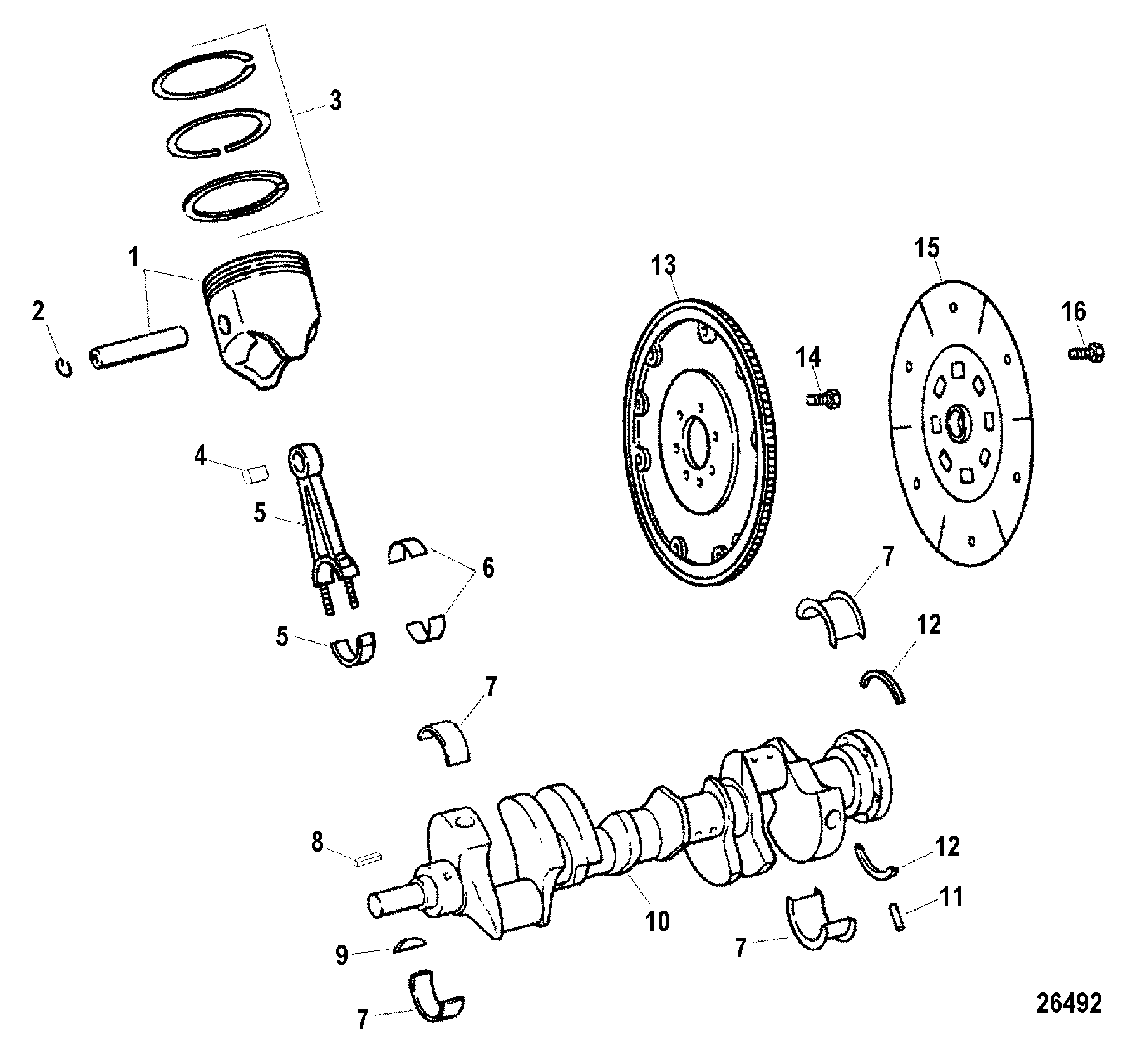

| 1 |
2700-849004A4 |
|
|
|
|
PISTON ASSEMBLY |
8 |
|
Standard 5 |
| 1 |
2700-849004A6 |
|
|
|
|
PISTON ASSEMBLY |
8 |
|
.005 Oversize 5 |
| 2 |
40-849390 |
|
|
|
|
CIRCLIP |
2 |
|
5 |
| 3 |
39-42733 |
|
|
|
|
RING SET, Piston - Standard |
1 |
|
5 |
| 3 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Piston - .005 Oversize - NOTE: Use Standard Ring Set |
1 |
|
This Part is not sold seperately |
| 4 |
42839 |
|
|
|
|
BUSHING, Connecting Rod Cap |
8 |
|
5 |
| 5 |
622-821414A01 |
|
|
|
|
CONNECTING ROD ASSEMBLY |
8 |
622-821414 |
5 |
| 6 |
23-8M0030698 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
4 |
23-841447001 |
NOTE: Used In Cylinders 2 - 4 - 6 - 8 5 |
| 6 |
23-8M0030699 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
4 |
23-841447002 |
NOTE: Used In Cylinders 1 - 3 - 5 - 7 5 |
| 6 |
23-8M0030693 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Oversize |
AR |
23-841448001 |
This Part is No Longer Available - NOTE: Used In Cylinders 2 - 4 - 6 - 8 |
| 6 |
23-8M0030695 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Oversize |
AR |
23-841448002 |
This Part is No Longer Available - NOTE: Used In Cylinders 1 - 3 - 5 - 7 |
| 6 |
23-8M0030696 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Undersize |
AR |
23-841449001 |
This Part is No Longer Available - NOTE: Used In Cylinders 2 - 4 - 6 - 8 |
| 6 |
23-8M0030697 |
|
|
|
|
BEARING SET, Connecting Rod - .001 Undersize |
AR |
23-841449002 |
This Part is No Longer Available - NOTE: Used In Cylinders 1 - 3 - 5 - 7 |
| 6 |
23-841450001 |
|
|
|
|
BEARING SET, Connecting Rod - .010 Undersize |
AR |
|
This Part is No Longer Available - NOTE: Used In Cylinders 2 - 4 - 6 - 8 |
| 6 |
23-841450002 |
|
|
|
|
BEARING SET, Connecting Rod - .010 Undersize |
AR |
|
This Part is No Longer Available - NOTE: Used In Cylinders 1 - 3 - 5 - 7 |
| 7 |
8M0051198 |
|
|
|
|
BEARING SET, Main - Standard |
1 |
23-842400 |
5 |
| 7 |
8M0053743 |
|
|
|
|
BEARING SET, Main - .001 Oversize |
AR |
23-842401 |
|
| 7 |
23-842402 |
|
|
|
|
BEARING SET, Main - .001 Undersize |
AR |
|
|
| 7 |
23-8M0053549 |
|
|
|
|
BEARING SET, Main - .010 Undersize |
AR |
23-842403 |
|
| 8 |
28-818782 |
|
|
|
|
KEY, Crankshaft (.250 Square x 1.66) |
1 |
|
5 |
| 9 |
28-34466 |
|
|
|
|
KEY, Crankshaft |
3 |
|
5 |
| 10 |
484-8163761 |
|
|
|
|
CRANKSHAFT |
1 |
|
5 |
| 11 |
17-843378 |
|
|
|
|
PIN, Dowel (.250) Rear Main Cap |
1 |
17-35312 |
5 |
| 12 |
26-841462 |
|
|
|
|
SEAL SET, Rear Main (2 Per Set) |
1 |
26-891555 |
2,5 |
| 13 |
230-742412 |
|
|
|
|
FLYWHEEL |
1 |
|
This Part is No Longer Available 5 |
| 14 |
10-8M0009552 |
|
|
|
|
SCREW, (.437-20 x 1.00) 12 Point |
6 |
|
5 |
| 14 |
10-848228 |
|
|
|
|
SCREW, (.500-20 x 1.06) |
1 |
|
5 |
| 15 |
8M0051206 |
|
|
|
|
DRIVEPLATE ASSEMBLY |
1 |
816618 |
|
| 16 |
10-35091 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
12 |
|
|
| - |
27-840277A1 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
This Part is No Longer Available |
