| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Description |
Num Req. |
Superceded From |
Special Notes |

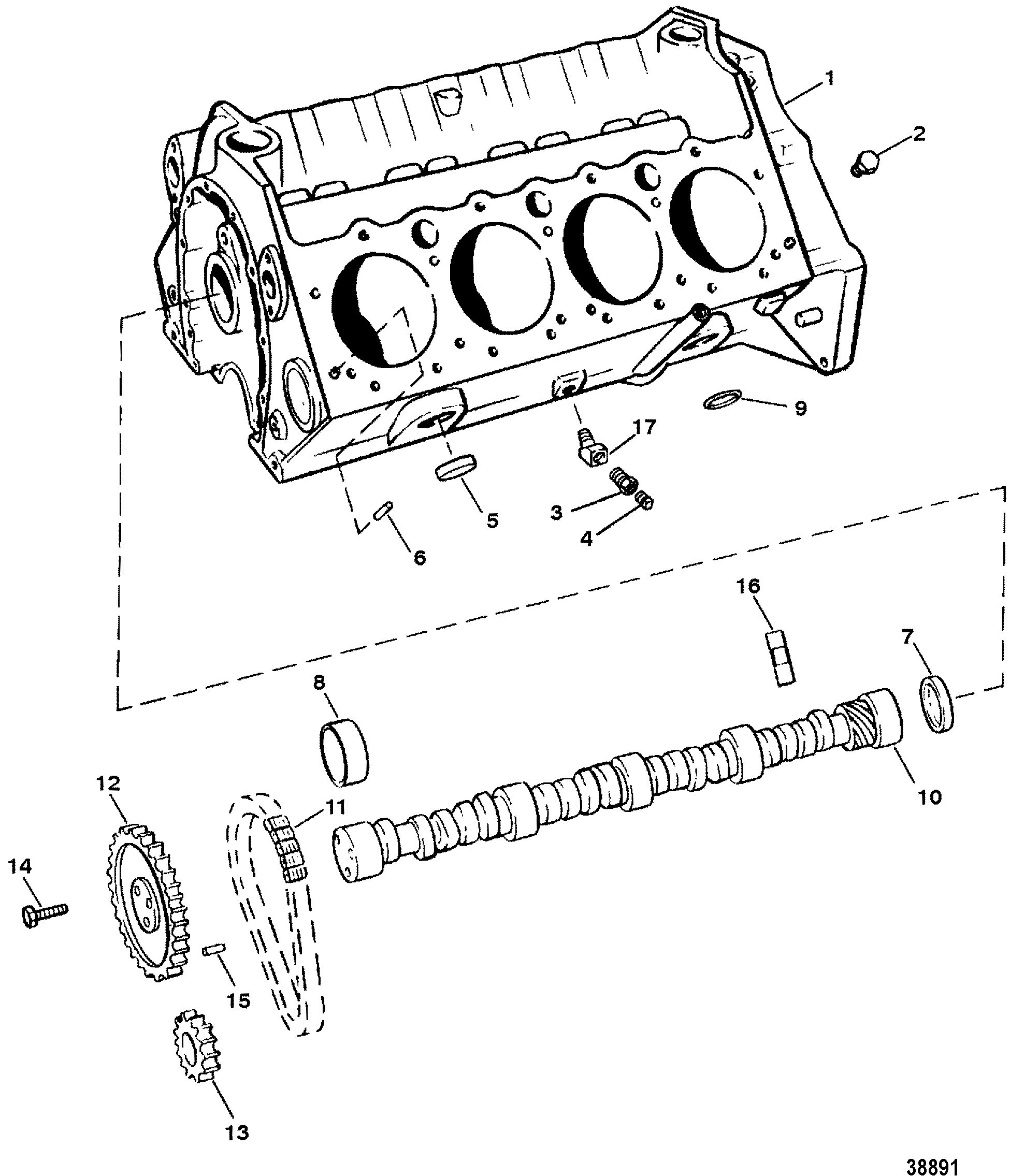

| 1 |
NSS |
|
|
|
NOT SOLD SEPARATE, CYLINDER BLOCK |
1 |
|
This Part is not sold separately (Order Long Blocks Below) 2 |
| 2 |
22-48340 |
|
|
|
PLUG, (.250-18 x .41) |
4 |
|
|
| 2 |
22-48358T |
|
|
|
PLUG, (.375) |
2 |
22-48358 |
|
| 3 |
22-48556 |
|
|
|
BUSHING , Reducer (.250 To .125) |
2 |
|
|
| 4 |
22-328022 |
|
|
|
PLUG, Pipe (.125-27) |
2 |
22-328021 |
|
| 5 |
19-34270 |
|
|
|
EXPANSION PLUG, (1.625) |
8 |
|
|
| 6 |
17-52190 |
|
|
|
PIN |
4 |
|
|
| 7 |
19-94140 |
|
|
|
EXPANSION PLUG |
1 |
|
|
| 8 |
23-85684 |
|
|
|
BEARING SET |
1 |
|
|
| 9 |
25-69756 |
|
|
|
O-RING, (.500 Inch) |
1 |
25-811528 |
|
| 10 |
431-4734 |
|
|
|
CAMSHAFT |
1 |
|
7.4L BRAVO |
| 11 |
845796T |
|
|
|
CHAIN |
1 |
811580 |
(Single Roller Chain)(454 Mag/7.4L) |
| 12 |
43-811578 |
|
|
|
SPROCKET |
1 |
|
(Single Roller Chain)(454 Mag/7.4L) |
| 13 |
43-845794T |
|
|
|
SPROCKET |
1 |
43-811579 |
(Single Roller Chain)(454 Mag/7.4L) |
| 10 |
431-9830 |
|
|
|
CAMSHAFT |
1 |
|
454 MAGNUM |
| 11 |
61728 |
|
|
|
CHAIN |
1 |
|
This Part is NLA from Mercruiser. 454 MAGNUM (Double Roller Chain) |
| 12 |
43-61726 |
|
|
|
SPROCKET |
1 |
|
This Part is NLA from Mercruiser. 454 MAGNUM (Double Roller Chain) |
| 13 |
43-61727 |
|
|
|
SPROCKET |
1 |
|
This Part is NLA from Mercruiser. 454 MAGNUM (Double Roller Chain) |
| 14 |
10-845942 |
|
|
|
SCREW, (.312-18 x .750) |
3 |
10-35339 |
|
| 15 |
17-843378 |
|
|
|
PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.) |
1 |
17-35312 |
|
| 16 |
811584 |
|
|
|
LIFTER (7.4L BRAVO) |
16 |
|
|
| 16 |
811583 |
|
|
|
LIFTER (454 MAGNUM) |
16 |
|
|
| 17 |
22-37682 |
|
|
|
FITTING, Elbow (45 Degree) |
1 |
|
|
| - |
806351R5 |
|
|
|
MARINE LONG BLOCK (7.4L BRAVO I & II) |
1 |
806351A1 |
(7.4L BRAVO I & II) |
| - |
806351R5 |
|
|
|
MARINE LONG BLOCK (7.4L BRAVO III) |
1 |
806359A1 |
(7.4L BRAVO III) |
| - |
806352R5 |
|
|
|
MARINE LONG BLOCK (454 MAGNUM) |
1 |
806352A1 |
This Part is NLA from Mercruiser. (454 MAGNUM) |
| - |
27-811547A92 |
|
|
|
GASKET SET, Engine |
1 |
|
(7.4L) |
| - |
27-811572A92 |
|
|
|
GASKET SET, Overhaul |
1 |
|
This Part is NLA from Mercruiser. (454 MAG) |
| - |
92-809825 |
|
|
|
RTV SILICONE, (3 Ounce Tube) Metallic Blue |
1 |
|
|
| - |
34227Q02 |
|
|
|
SEALING COMPOUND, (16 Ounce) |
1 |
92-342271 |
|
