7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Power Steering Components

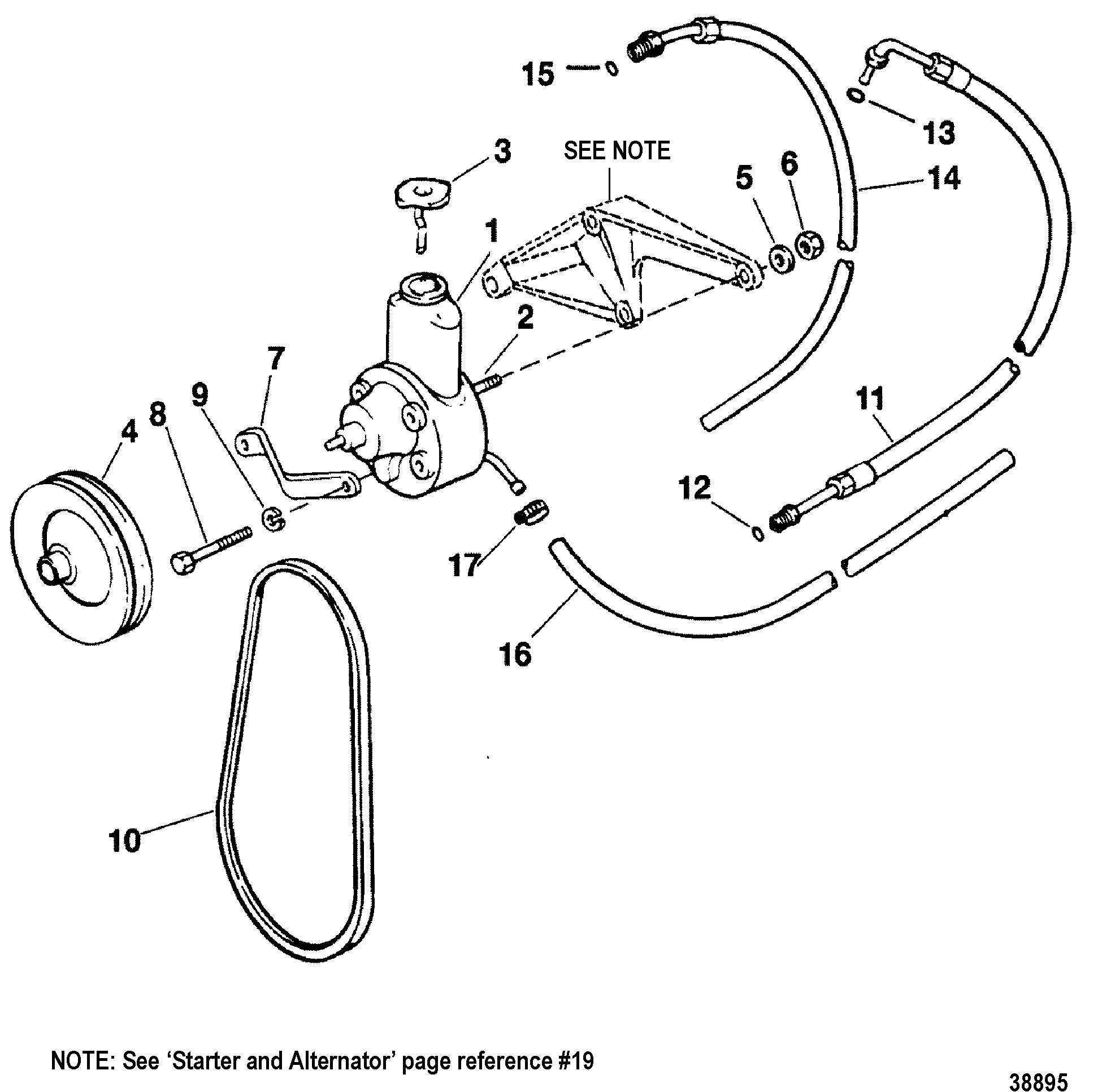

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando # AC155603)
- Alternator (Mando #AR-150)
- Alternator (Prestolite #8EM2003KA)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate (454 Magnum)
- Exhaust System (7.4L Bravo)
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor (454 Magnum) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo-454 Mag) 0F114760 and Up
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (3-1-4 In. Diameter End Cap)
- Starter Motor (8 In. (Pg 260) 2-7-8 In. Diameter End Cap)
- Thermostat Housing (Standard Cooling) S-N: 0F305000 and Up
- Thermostat Housing (Standard Cooling) S-N: 0F3519999 and Below
- Wiring Harness-Electrical (Mounted On Distributor) Tb Iv
- Wiring Harness-Electrical (Mounted On Exhaust Elbow) Tb Iv
- Wiring Harness-Electrical (Thunderbolt V Ignition)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY | 1 | 16792A1 | Pump DOES NOT come with pulley | |||
| 2 | 16-41877 | STUD, (M10) | 2 | |||||
| 3 | 36-95805 | CAP | 1 | |||||
| 4 | 73873A1 | PULLEY | 1 | |||||
| 5 | 23-72057 | SPACER, (1.00 Outside Diameter x .125 x Thick) | 2 | |||||
| 6 | 11-90517 | NUT, (M10) | 2 | |||||
| 7 | 98813F1 | BRACE | 1 | 98813A1 | ||||
| 8 | 10-40001188 | SCREW, (M10 x 20) | 1 | |||||
| 9 | 13-400248 | LOCKWASHER, (M10) | 1 | |||||
| 10 | 57-812427Q | V BELT | 1 | 57-812427T | ||||
| 11 | 32-80622216 | HOSE (FITTINGS ON BOTH ENDS) | 1 | SN# 0F114760 & Up | ||||
| 11 | 32-90494 | HOSE (FITTINGS ON BOTH ENDS) | 1 | SN# 0F114759 & Below | ||||
| 12 | 25-89879 | O-RING, (.301 x .064) | 1 | SN# 0F114760 & Up | ||||
| 12 | 25-89879 | O-RING, (.301 x .064) | 1 | SN# 0F114759 & Below | ||||
| 13 | 25-806232 | O-RING, (.239 x .064) | 1 | SN# 0F114760 & Up | ||||
| 14 | 32-80622142 | HOSE ASSEMBLY, (84.00 Inches Bulk), Return (FITTINGS ON ONE END) | 1 | SN# 0F114760 & Up | ||||
| 14 | 32-9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk) (FITTINGS ON ONE END) | 1 | SN# 0F114759 & Below | ||||
| 15 | 25-89879 | O-RING, (.301 x .064) | 1 | SN# 0F114760 & Up | ||||
| 16 | 32-5251914 | HOSE, (53.00 Inches Bulk), Pump to Oil Cooler | 1 | |||||
| 17 | 54-815504206 | CLAMP, Worm Gear | 3 |
