7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Cylinder Head And Rocker Cover (454 Magnum)

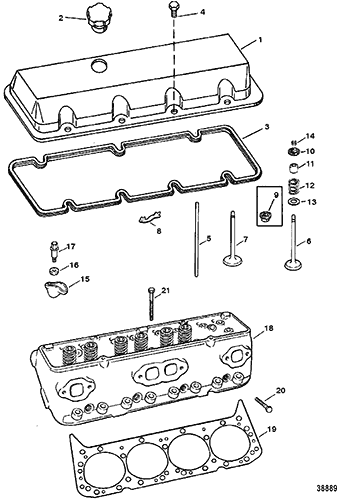

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 850462         ROCKER COVER 2 811587
2 36-811569         CAP, Oil Tank 2

3 27-811588         GASKET, Rocker Cover 2
5
4 10-811589         BOLT, (1/4-20 x 0.875) 14

5 811581         PUSH ROD 8
(INTAKE)
5 811582         PUSH ROD 8   This Part is No Longer Available (EXHAUST)
6 816962         VALVE, Exhaust 8
(STANDARD)
6 816963T         VALVE, Exhaust AR 816963 This Part is No Longer Available (.015 O.S.) 3
7 801877         VALVE, Intake 8
(STANDARD)
7 801878         VALVE, Intake AR   This Part is No Longer Available (.015 O.S.) 3
8 845707         GUIDE 8 811586
9 827644A1         CAP AND SHIELD 16 19325 ONE PIECE DESIGN 5
10 827644A1         CAP ASSEMBLY, Valve 16
TWO PIECE DESIGN
11 26-827645         SEAL, Valve 16
TWO PIECE DESIGN
12 24-801879T         SPRING, Valve 16 24-801879
13 15-845669         SHIM, Valve Spring (.015) 16 15-54531
14 28-54530         KEY 32

15 811591T         ARM, Rocker 16 811591
16 850472         BALL, Rocker Arm 16 811592
17 10-811593         BOLT, Rocker Arm 16

18 938-883493R1         CYLINDER HEAD 2 938-811529 (3/8-16 THREADS)
18 938-883493R1         CYLINDER HEAD ASSEMBLY 2 938-827495 (7/16-14 THREADS)
19 879150141         GASKET 2 27-811547 5
20 10-8M0000463         BOLT, (2.00 Inch) 8 10-49106
21 10-8M0000482         BOLT, (4.125 Inch) 24 10-49105
- 27-811572A92         GASKET SET, Overhaul 1   This Part is No Longer Available (454 MAGNUM)
