7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Flame Arrestor

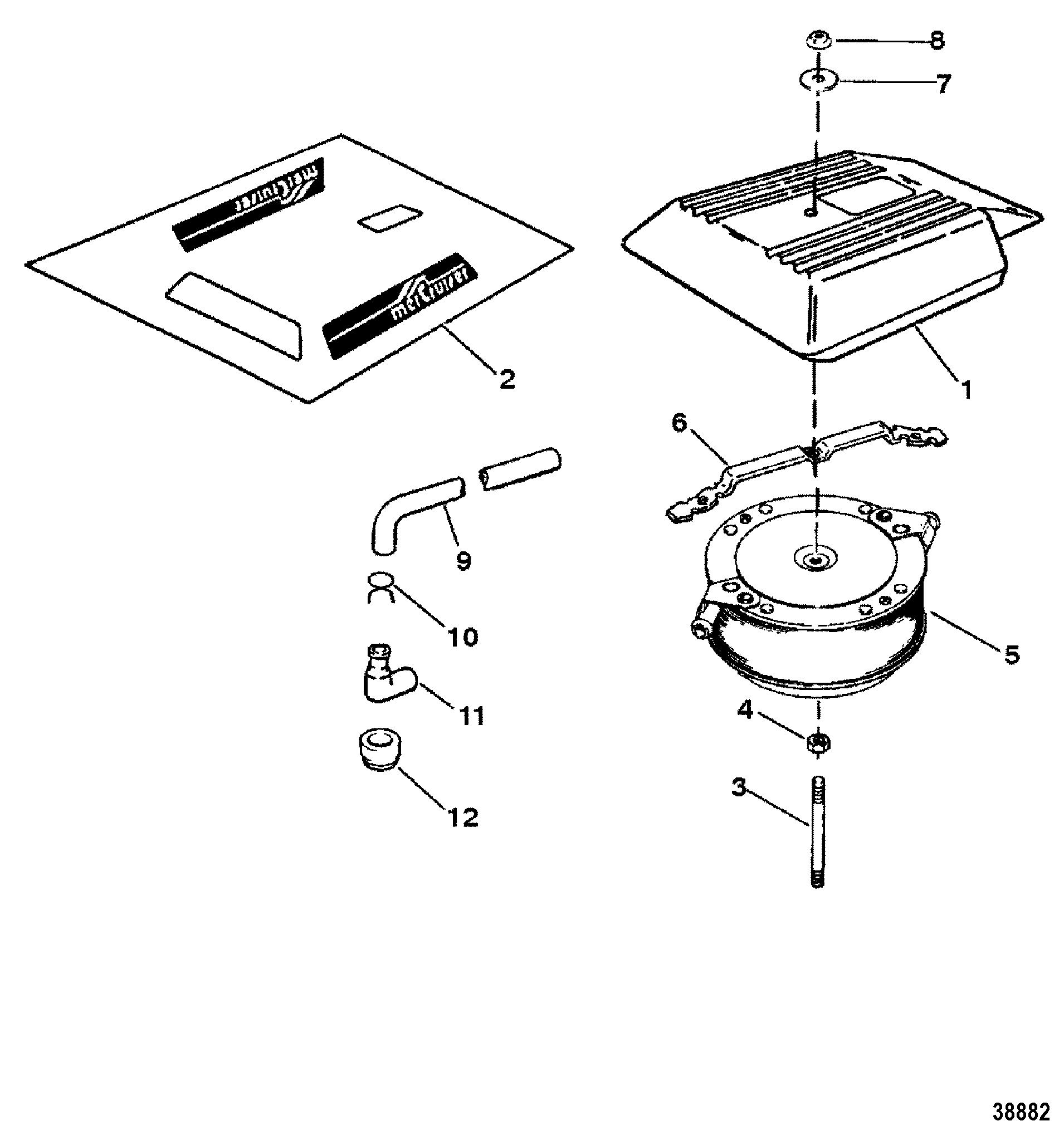

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando # AC155603)
- Alternator (Mando #AR-150)
- Alternator (Prestolite #8EM2003KA)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate (454 Magnum)
- Exhaust System (7.4L Bravo)
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor (454 Magnum) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo-454 Mag) 0F114760 and Up
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (3-1-4 In. Diameter End Cap)
- Starter Motor (8 In. (Pg 260) 2-7-8 In. Diameter End Cap)
- Thermostat Housing (Standard Cooling) S-N: 0F305000 and Up
- Thermostat Housing (Standard Cooling) S-N: 0F3519999 and Below
- Wiring Harness-Electrical (Mounted On Distributor) Tb Iv
- Wiring Harness-Electrical (Mounted On Exhaust Elbow) Tb Iv
- Wiring Harness-Electrical (Thunderbolt V Ignition)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18484A3 | COVER | 1 | |||||
| 2 | 37-812776A27 | DECAL SET | 1 | This Part is NLA from Mercruiser. (7.4L BRAVO I & II) | ||||
| 2 | 37-812776A28 | DECAL SET | 1 | This Part is NLA from Mercruiser. (7.4L BRAVO III) | ||||
| 2 | 37-812776A24 | DECAL SET | 1 | This Part is NLA from Mercruiser. (454 MAGNUM) | ||||
| 3 | 16-805161 | STUD, (4.75 In) | 1 | This Part is NLA from Mercruiser.USE WITHOUT REF. #6 | ||||
| 4 | 11-28941 | NUT | 1 | USE WITHOUT REF. #6 | ||||
| 5 | 805298A1 | FLAME ARRESTOR NEW DESIGN | 1 | 57882T1 | USE WITHOUT REF. #6 | |||
| 3 | 16-805296 | STUD, (4.50 Inch) | 1 | 7.4L BRAVO I & II- USE WITH RETAINER REF. #6 | ||||
| 5 | 805298A1 | FLAME ARRESTOR | 1 | 7.4L BRAVO I & II- USE WITH RETAINER REF. #6 | ||||
| 6 | 805314 | RETAINER, Breather Hose | 1 | 7.4L BRAVO I & II- USE WITH RETAINER REF. #6 | ||||
| 3 | 16-805297 | STUD | 1 | 7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6 | ||||
| 5 | 805299A1 | FLAME ARRESTOR | 1 | 7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6 | ||||
| 6 | 805314 | RETAINER, Breather Hose | 1 | 7.4L BRAVO III &454 MAGNUM-USE WITH RETAINER REF. #6 | ||||
| 7 | 12-86400 | WASHER | 1 | |||||
| 8 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | ||||
| 9 | 32-1589424 | HOSE, Breather | 2 | 32-1589418 | ||||
| 10 | 54-53101 | CLAMP | 4 | This Part is NLA from Mercruiser. | ||||
| 11 | 97850T | ELBOW, 90 Degree, Breather | 2 | 97850 | ||||
| 12 | 25-811553 | GROMMET | 2 |
