| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Description |
Num Req. |
Superceded From |
Special Notes |

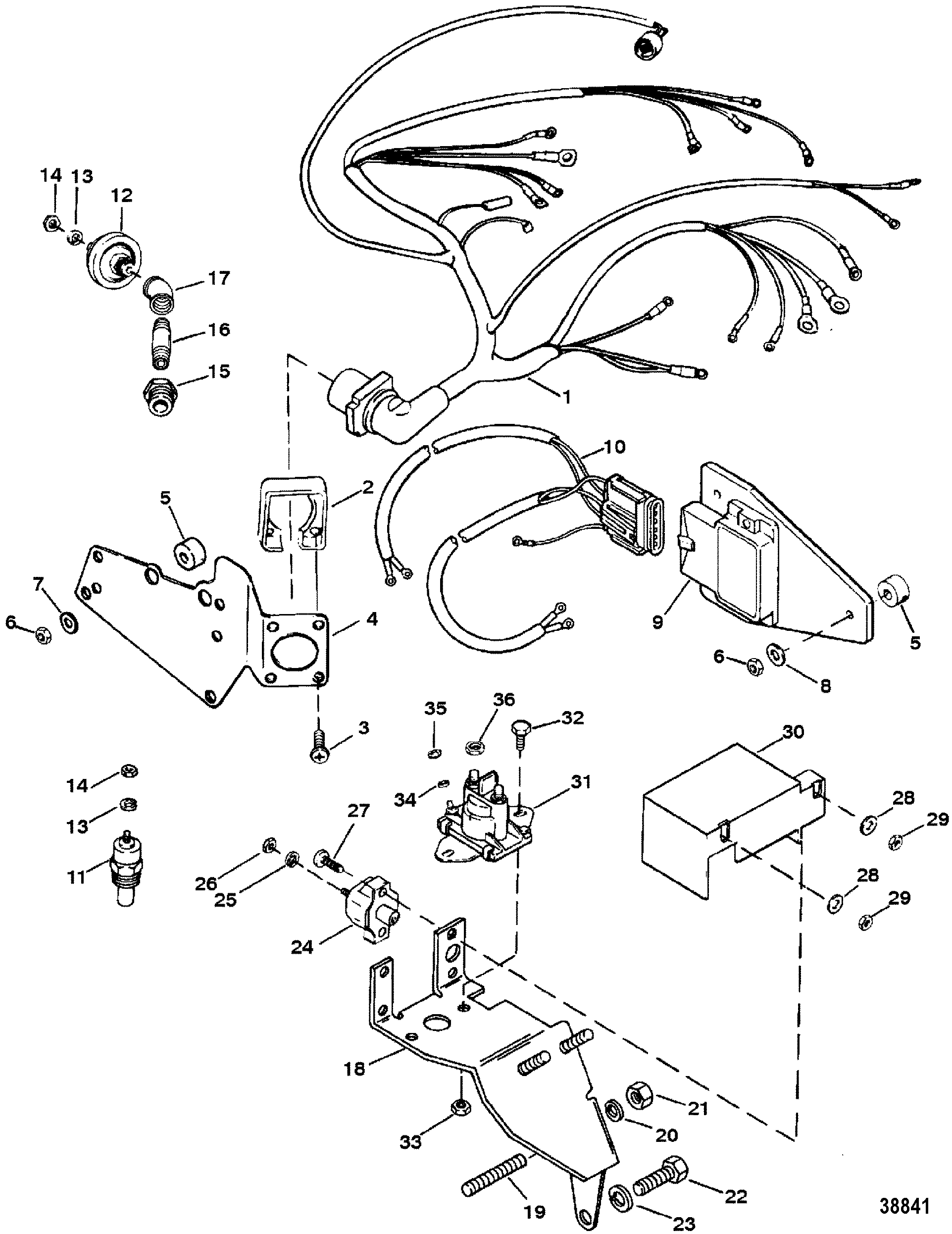

| 1 |
84-96020A6 |
|
|
|
HARNESS ASSEMBLY |
1 |
|
|
| 2 |
26079A2 |
|
|
|
PLATE KIT, Wire Harness Mount |
1 |
|
|
| 3 |
10-15001 |
|
|
|
SCREW, (#8-16 x .875) |
4 |
|
|
| 4 |
98493A2 |
|
|
|
BRACKET |
1 |
|
This Part is NLA from Mercruiser. |
| 5 |
23-92152T |
|
|
|
SPACER, (.27 x .75 x .38) |
6 |
23-92152 |
|
| 6 |
11-64015 |
|
|
|
NUT, (.250-20) |
6 |
|
|
| 7 |
23-806981 |
|
|
|
SPACER |
3 |
|
|
| 8 |
12-35462 |
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
3 |
|
|
| 9 |
15248A1 |
|
|
|
MODULE KIT, Ignition |
1 |
|
This Part is NLA from Mercruiser. |
| 10 |
84-15275A1 |
|
|
|
HARNESS ASSEMBLY |
1 |
|
This Part is NLA from Mercruiser. |
| 11 |
806490T |
|
676-9-42400 |
|
SENDER ASSEMBLY, Water Temperature |
1 |
97257A1 |
|
| 11 |
49734 |
|
|
|
SENDER ASSEMBLY, Water Temperature |
OPT |
49734A1 |
(DUAL STATION) 7 |
| 12 |
8M0068784 |
|
|
|
SENDER ASSEMBLY, Oil Pressure |
1 |
815425 |
|
| 12 |
37293T |
|
|
|
SENDER ASSEMBLY, Oil Pressure |
OPT |
37293 |
(DUAL STATION) 7 |
| 13 |
13-26996 |
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 14 |
11-68219 |
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 15 |
22-48556 |
|
|
|
BUSHING , Reducer (.250 To .125) |
1 |
|
|
| 16 |
22-885153 |
|
|
|
NIPPLE |
1 |
22-42554 |
|
| 17 |
22-46932 |
|
|
|
ELBOW |
1 |
|
This Part is NLA from Mercruiser. |
| 18 |
818384T1 |
|
|
|
BRACKET |
1 |
|
This Part is NLA from Mercruiser. |
| 19 |
16-64281 |
|
|
|
STUD, (.375-16/.375-24 x 1.880) |
1 |
|
This Part is NLA from Mercruiser. |
| 20 |
13-35048 |
|
|
700-21495 |
LOCKWASHER, (.375) |
1 |
|
|
| 21 |
11-46335 |
|
|
|
NUT, (.375-24) |
1 |
|
|
| 22 |
10-47462 |
|
|
|
SCREW, (.437-14 x 1.250) |
1 |
|
|
| 23 |
13-32993 |
|
|
|
LOCKWASHER, (.437) |
1 |
|
|
| 24 |
88-11178A01 |
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 25 |
13-26996 |
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
11-68219/tr>
|
| 26 |
11-68219 |
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 27 |
10-45862 |
|
|
|
SCREW, (#10-32 x .875) |
2 |
|
|
| 28 |
12-56681 |
|
|
|
WASHER, (.203 x .500 x .032) |
2 |
|
|
| 29 |
11-61356 |
|
|
|
NUT, (#10-32) Reduced Hex |
2 |
|
|
| 30 |
85-96819T |
|
|
|
INSULATOR |
1 |
|
|
| 31 |
89-96054T |
|
|
700-72390 |
SOLENOID ASSEMBLY, Starter |
1 |
89-96054 |
|
| 32 |
10-96138 |
|
|
|
SCREW, (1/4-28 x 5/8) (5/8 IN.) |
2 |
10-47910 |
|
| 33 |
11-20088 |
|
|
|
NUT |
2 |
|
This Part is NLA from Mercruiser. |
| 34 |
13-26992 |
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
| 35 |
11-26419 |
|
|
|
NUT, (#8-32) Brass |
2 |
|
|
| 36 |
11-94330 |
|
|
|
NUT, (.250-20) Brass |
2 |
|
|
