7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Wiring Harness-Electrical (Thunderbolt V Ignition)

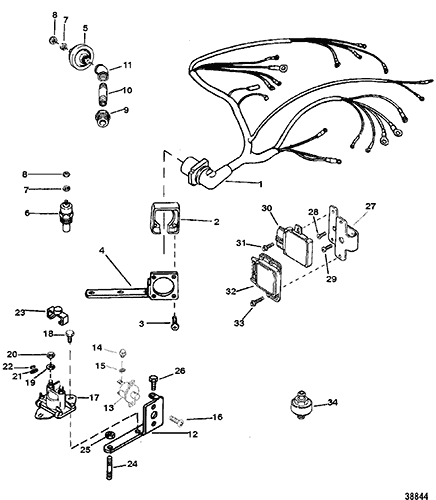

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Description Num Req. Superceded From Special Notes
1 84-806744A2


HARNESS ASSEMBLY 1

2 26079A2


PLATE KIT, Wire Harness Mount 1

3 10-15001


SCREW, (#8-16 x .875) 4

4 805468T


BRACKET 1   This Part is NLA from Mercruiser.
5 8M0068784


SENDER ASSEMBLY, Oil Pressure 1  815425
5 37293T


SENDER ASSEMBLY, Oil Pressure (DUAL) OPT 37293 7
6 806490T
676-9-42400
SENDER ASSEMBLY, Water Temperature 1 97257A1
6 49734


SENDER ASSEMBLY, Water Temperature (DUAL) OPT 49734A1 7
7 13-26996


LOCKWASHER, (#10) Stainless Steel 2
8 11-68219


NUT, (#10-32) Stainless Steel 2
9 22-48556


BUSHING , Reducer (.250 To .125) 1

10 22-885153


NIPPLE 1 22-42554
11 22-46932


ELBOW 1
This Part is NLA from Mercruiser.
12 899719T01


BRACKET, Electrical 1  805368T
13 88-11178A01


BREAKER, Circuit - 50 Ampere 1  88-806950
14 10-68513


SCREW, (#10-32 x .375) Stainless Steel 2

15 13-26996


LOCKWASHER, (#10) Stainless Steel 2

16 10-57583


SCREW, (#8-32 x .375) 2

17 89-96158T


SOLENOID, Starter 1  89-96158
18 10-805564


SCREW, (.250-20 x .750) 2

19 13-26992


LOCKWASHER, (.250) Stainless Steel 2

20 11-94330


NUT, (.250-20) Brass 2
21 13-26996


LOCKWASHER, (#10) Stainless Steel 2    11-68219/tr>
22 11-68219


NUT, (#10-32) Stainless Steel 2

23 85-97861


INSULATOR 1

24 16-805459


STUD, Mercathode Mounting 1

25 11-46438


NUT, (#10-32) 1

26 10-805565


SCREW, (#10-32 x .750) 1

27 807763T


BRACKET 1  806735T
28 10-806834


SCREW (FLATHEAD) 1
No longer made, limited availability
29 10-806835


SCREW, (10-32 x .50) 1
No longer made, limited availability
30 806959A01


MODULE (7.4L BRAVO I & II) 1  806959T4
28 806960A01


IGNITION CONTROL MODULE (7.4L BRAVO III) 1  806960T4
28 806745A01


MODULE (454 MAGNUM) 1  806745T5
31 10-806826


SCREW, (#8-32 x .250) 2

32 805443


MODULE ASSEMBLY 1  805443T This Part is NLA from Mercruiser.
33 10-806827


SCREW, (#8-32 x .380) 2

34 805544T
676-9-33500
SENSOR ASSEMBLY 1
