6.2L MPI MIE EC - Serial 1A091600 Thru 1A092168 - Closed Cooling Sys., Sea Water Pump Hoses (1A091623 and Above)

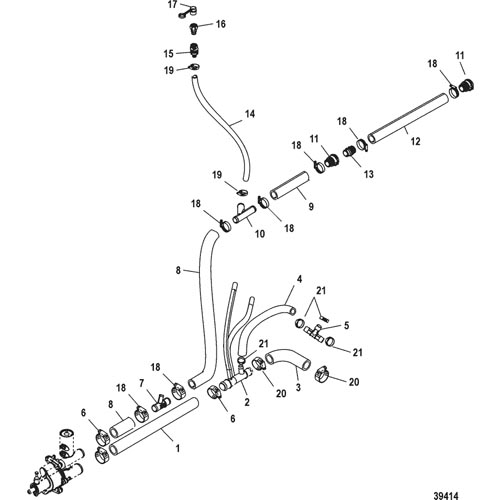

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling Sys., Sea Water Pump Hoses (1A091622 and Below)
- Closed Cooling Sys., Sea Water Pump Hoses (1A091623 and Above)
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865234 | HOSE, Sea Water Pump to Orifice | 1 | ||||||
| 2 | 865208T02 | HOSE ASSEMBLY, 3 Bib Orifice Meter | 1 | ||||||
| 3 | 32-865235 | HOSE, Hose Fitting to Cooler | 1 | ||||||
| 4 | 32-8M2012446 | HOSE, Fitting to Fitting | 1 | ||||||
| 5 | 22-8M0065823 | FITTING ASSEMBLY | 1 | 22-863464A1 | |||||
| 6 | 54-815504224 | CLAMP, (32 - 50 mm) | AR | 54-8M2001489 | |||||
| 7 | 22-864727 | FITTING, Y, (3) 1-1/4 In. OD Hose Barbs | 1 | ||||||
| 8 | 32-865672013 | HOSE, (4.00 Inches) | AR | ||||||
| 9 | 32-865672079 | HOSE, (96.00 Inches Bulk), Cut to Fit | 1 | ||||||
| 10 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 1 | ||||||
| 11 | 22-865324 | QUICK CONNECT | 2 | ||||||
| 12 | 32-865672079 | HOSE, (96.00 Inches Bulk), To Transom | 1 | (Cut to Fit) | |||||
| 13 | 22-865362 | QUICK CONNECT | 1 | ||||||
| 14 | 32-8M0062635 | HOSE, (34 Inches), Flush | 1 | 32-86438765 | |||||
| 15 | 22-861406 | SOCKET | 1 | ||||||
| 16 | 22-857175 | FITTING | 1 | 22-861405 | |||||
| 17 | 861427 | CAP | 1 | ||||||
| 18 | 54-815504221 | CLAMP, Worm Gear (30 - 45 mm) | AR | 54-8M2001488 | |||||
| 19 | 54-815504212 | CLAMP, Worm Gear | 2 | ||||||
| 20 | 54-815504221 | CLAMP, Worm Gear (30 - 45 mm) | 2 | 54-8M2001488 | |||||
| 21 | 54-815504216 | CLAMP, (25 - 40 mm) | 4 | 54-8M2001487 |
