6.2L MPI MIE EC - Serial 1A091600 Thru 1A092168 - Starter Motor

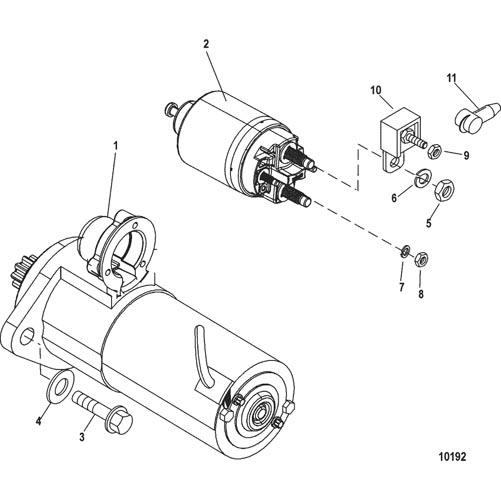

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling Sys., Sea Water Pump Hoses (1A091622 and Below)
- Closed Cooling Sys., Sea Water Pump Hoses (1A091623 and Above)
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-808011A05 | 676-9-15908 | STARTER MOTOR ASSEMBLY | 1 | |||||
| 2 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID KIT, Starter | 1 | ||||
| 3 | 10-47462 | SCREW, (.437-14 x 1.250) | 2 | ||||||
| 4 | 13-32993 | LOCKWASHER, (.437) | 2 | 13-37272 | |||||
| 5 | 11-806949 | NUT, (M8-1.5) | 1 | ||||||
| 6 | 13-400247 | LOCKWASHER, (M8) | 1 | ||||||
| 7 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 8 | 11-400211 | NUT, (M5) Stainless Steel | 1 | 11-853141, 11-400201 | |||||
| 9 | 11-8267119 | NUT, (.250-28) | 1 | 11-13438 | |||||
| 10 | 88-79023A91 | 676-9-15510 | FUSE ASSEMBLY, 90 Ampere | 1 | |||||
| 11 | 85-79695T | BOOT, Insulator - Black | 1 | 79695 |
