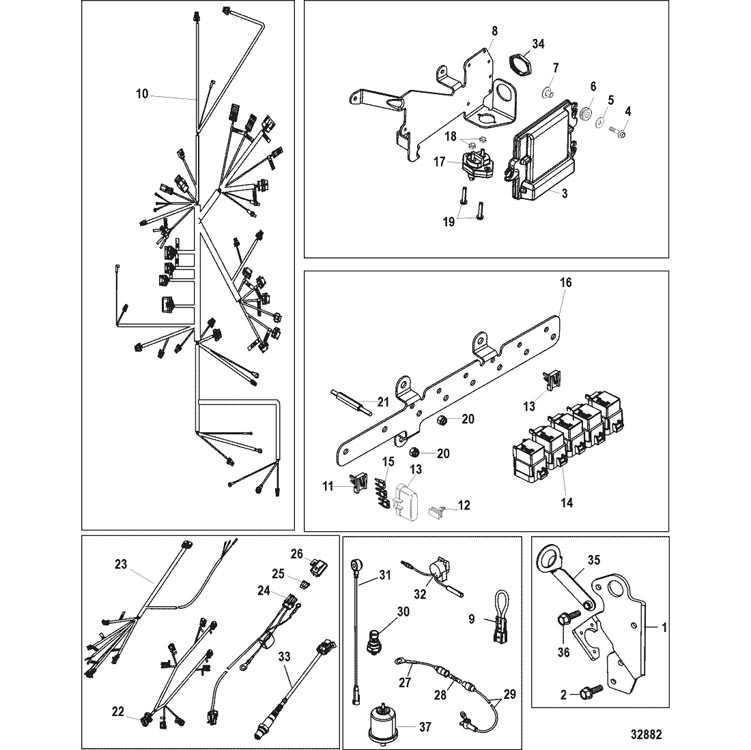

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 865480T | BRACKET, Harness Mounting/Lifting Eye | 1 | ||||||
2 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
3 | 8M0071887 | PCM, Propulsion Control Module | 1 | 879172T21 | |||||
3 | 8M0071886 | PCM, Propulsion Control Module | 1 | 879172T22 | |||||
3 | 8M0052741 | PCM, Propulsion Control Module | 1 | 879172T25 | |||||
3 | 8M0052742 | PCM, Propulsion Control Module | 1 | 879172T26 | |||||
4 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
5 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
6 | 25-834985 | GROMMET | 3 | ||||||
7 | 23-856954 | BUSHING | 3 | ||||||
8 | 879288T32 | BRACKET, PCM | 1 | ||||||
9 | 864337A1 | CONNECTOR, Black, Jumper | 1 | ||||||
10 | 84-879288T30 | HARNESS ASSEMBLY, Main Engine | 1 | ||||||
11 | 86-865205 | CLIP, Relay Mounting | 2 | ||||||
12 | 54-804352 | CLIP, Fuse Block Mounting | 1 | ||||||
13 | 883562 | COVER, Fuse | 1 | ||||||
14 | 882751 | RELAY | 5 | ||||||
15 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 83296920 | |||||
16 | 879288T31 | BRACKET, Relay | 1 | ||||||
17 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | No Longer Available | |||||
18 | 11-826709106 | NUT, (#10-32) Stainless Steel | 2 | ||||||
19 | 10-830861 | SCREW, (#8-32 x .625) | 2 | ||||||
20 | 11-401366 | NUT, (M6) Stainless Steel | 3 | ||||||
21 | 16-863439 | STUD | 1 | ||||||
22 | 84-865983T01 | HARNESS ASSEMBLY, Injectors | 1 | ||||||
23 | 84-865676T01 | HARNESS ASSEMBLY, Transom | 1 | ||||||
24 | 84-888416T04 | HARNESS ASSEMBLY, Clean Power | 1 | 888416T03 | |||||
25 | 862646 | FUSE, Tan - 5 Ampere | 1 | ||||||
26 | 828054 | COVER, Fuse | 1 | ||||||
27 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | ||||||
28 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
29 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | ||||||
30 | 8M6000623 | SENSOR, Pressure | 1 | 881879010 | |||||
30 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Oil | 1 | 881879011 | |||||
31 | 8M6003194 | SENSOR ASSEMBLY, Knock | 2 | 878187 | |||||
32 | 816492A15 | ALARM KIT | 1 | ||||||
33 | 8M2003959 | SENSOR, Oxygen | 4 | ||||||
34 | 11-889664 | NUT, (1.500-18) Black Nylon | 1 | ||||||
35 | 8M0054509 | BRACKET, Flush | 1 | No Longer Available | |||||
36 | 10-824941 | SCREW, (.312-18 x .750) | 2 | ||||||
36 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
36 | 10-29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | 2 | ||||||
37 | 8M0068784 | SENDER ASSEMBLY | 1 | 815425T |
