6.2L MPI MIE EC - Serial 1A091600 Thru 1A092168 - Cylinder Head Assembly

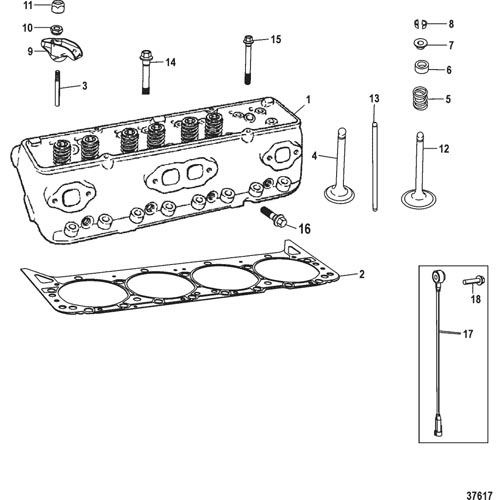

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling Sys., Sea Water Pump Hoses (1A091622 and Below)
- Closed Cooling Sys., Sea Water Pump Hoses (1A091623 and Above)
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 938-802556T | CYLINDER HEAD ASSEMBLY | 2 | 5.0L (Bare) | |||||
| 1 | 938-803860T | CYLINDER HEAD ASSEMBLY | 2 | 350 (Bare) | |||||
| 1 | 900-8M0061735 | CYLINDER HEAD ASSEMBLY | 2 | 900-879172A32 | 377 (Loaded - Includes references 2-8 and 12) | ||||
| 2 | 75611001 | GASKET | 2 | 27-756111 | 2 | ||||
| 3 | 16-34522 | STUD (.003) Oversize | AR | ||||||
| 3 | 16-34521 | STUD (.013) Oversize | AR | This Part is No Longer Available | |||||
| 4 | 8M2010902 | VALVE, Intake, Standard | 8 | 377 | |||||
| 4 | 802555 | VALVE, Intake, Standard | 8 | 5.0L | |||||
| 4 | 809992 | VALVE, Intake, Standard | 8 | 350 | |||||
| 5 | 24-483471 | SPRING | 16 | ||||||
| 6 | 26-976641 | SEAL, Intake | 8 | 2 | |||||
| 6 | 26-804507 | SEAL, Exhaust | 8 | 2 | |||||
| 7 | 483481 | CAP | 16 | ||||||
| 8 | 28-547971 | KEY | 32 | ||||||
| 9 | 35329 | ARM KIT, Rocker | 16 | Scorpion 350 | |||||
| 10 | 35331 | BALL, Rocker Arm | 16 | ||||||
| 11 | 11-34516 | NUT | 16 | ||||||
| 12 | 8243171 | VALVE, Exhaust, Standard | 8 | ||||||
| 12 | 8243181 | VALVE, Exhaust, (.030) Oversize | AR | ||||||
| 13 | 173391 | PUSH ROD | 16 | ||||||
| 14 | 10-119671 | SCREW, (.437-14 x 3.00) | 4 | ||||||
| 15 | 10-11966 | SCREW, (.437-14 x 3.750) | 14 | ||||||
| 16 | 10-11968 | SCREW, (.437-14 x 1.750) | 16 | ||||||
| 17 | 878187 | SENSOR ASSEMBLY, Knock | 2 | 350/377 Mag | |||||
| 18 | 10-865982007 | SCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor | 2 | 350/377 Mag | |||||
| - | 27-75611A03 | GASKET SET, Cylinder Head | 1 |
