6.2L MPI MIE EC - Serial 1A091600 Thru 1A092168 - Alternator and Brackets
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling Sys., Sea Water Pump Hoses (1A091622 and Below)
- Closed Cooling Sys., Sea Water Pump Hoses (1A091623 and Above)
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump

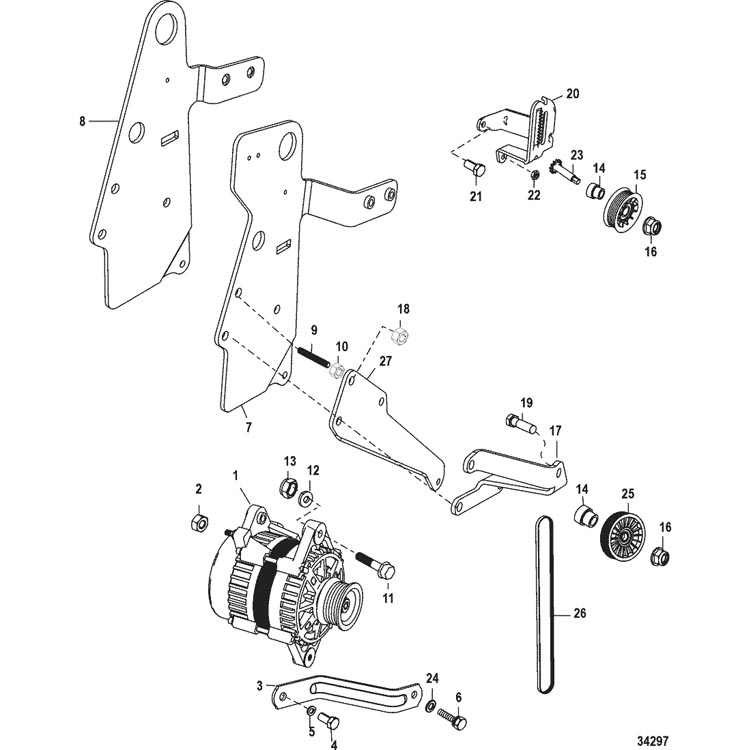

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 863077T | ALTERNATOR ASSEMBLY, Black (65 Amp)(50mm Pulley) | 1 | ||||||
2 | 11-400212 | NUT, (M6) Stainless Steel | 2 | ||||||
3 | 807750T | BRACE | 1 | ||||||
4 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
5 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
6 | 10-40001134 | SCREW, (M8 x 25) | 1 | ||||||
7 | 8M2009114 | BRACKET, Alternator and Lifting Eye | 1 | ||||||
7 | 863646 | BRACKET, Alternator and Lifting Eye | 1 | ||||||
7 | 8636461 | BRACKET, Alternator and Lifting Eye | 1 | ||||||
8 | 8M2010368 | BRACKET, Alternator and Lifting Eye | 1 | ||||||
9 | 16-862615 | STUD, (.375-16 x 2.25) | 3 | ||||||
10 | 11-32219 | NUT, (.375-16) | 3 | ||||||
11 | 10-828213 | SCREW, (.312-18 x 1.500) Hex Flange | 2 | ||||||
12 | 12-57792 | WASHER | 2 | ||||||
13 | 11-26484 | NUT, (.312-18) | 2 | ||||||
14 | 865193 | BUSHING | 2 | ||||||
15 | 865444T | PULLEY, (3.50 Inch Diameter) | 2 | ||||||
15 | 807757T | PULLEY ASSEMBLY, Idler - Black (3 Inch Diameter) | 2 | ||||||
16 | 11-859135 | NUT, (.437-20) Brass/Nickel Plated | 2 | ||||||
17 | 807753T1 | BRACKET, Idler | 1 | ||||||
18 | 11-32219 | NUT, (.375-16) | 3 | ||||||
19 | 10-816601 | SCREW, (.437-20 x 1.500) | 1 | ||||||
20 | 807767T | BRACKET, Idler Adjustment | 1 | ||||||
21 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
22 | 11-29250 | NUT, (.312-24) | 1 | ||||||
23 | 43-8183812 | PINION STUD, (.437-20) Stainless Steel | 1 | ||||||
24 | 12-20084 | WASHER, (.328 x .562 x .062) | 1 | ||||||
25 | 864625T | PULLEY ( 4-1/4 In. Diameter ) | 1 | ||||||
26 | 57-865615Q05 | BELT, Serpentine | 1 | ||||||
26 | 57-865615Q10 | BELT, Serpentine | 1 | ||||||
27 | 862058T | BRACE, Alternator | 1 |
