6.2L MPI MIE EC - Serial 1A091600 Thru 1A092168 - Thermostat and Housing, Standard Cooling

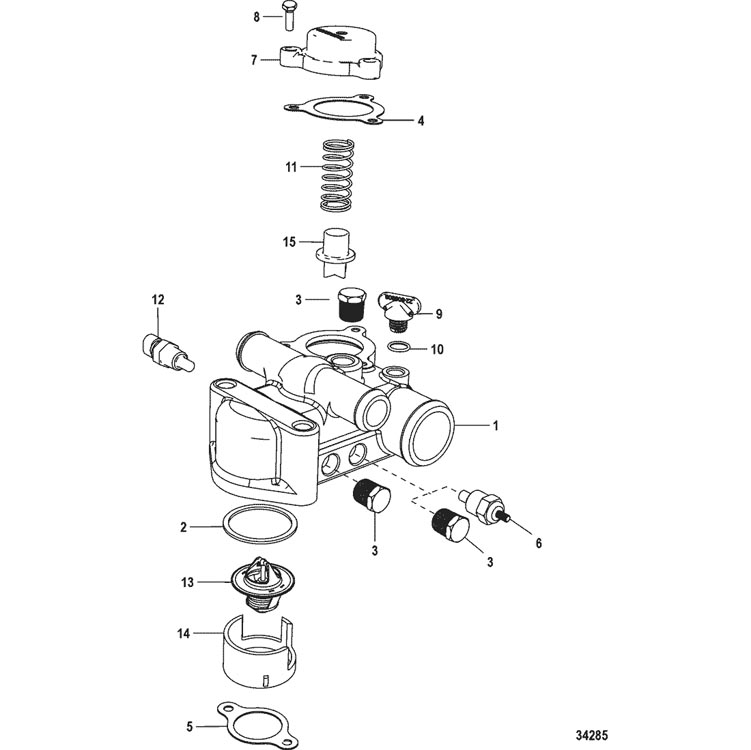

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling Sys., Sea Water Pump Hoses (1A091622 and Below)
- Closed Cooling Sys., Sea Water Pump Hoses (1A091623 and Above)
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879172A11 | HOUSING ASSEMBLY, Thermostat | 1 | ||||||
| 2 | 27-806871 | GASKET | 1 | 2 | |||||
| 3 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 3 | |||||
| 4 | 25-8M2010475 | GASKET, Poppet Cover | 1 | ||||||
| 5 | 27-530451 | GASKET | 1 | 2 | |||||
| 6 | 806490T | SENDER | 1 | (Mechanical Throttle and Shift) | |||||
| 7 | 8M8020473 | CAP, Thermostat | 1 | ||||||
| 8 | 10-28668 | 602-98-102-13 | SCREW, (.250-20 x .875) | 3 | 10-20027 | ||||
| 9 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue | 1 | ||||||
| 10 | 25-26802 | 602-95-260-03 | SEAL | 1 | 25-8M2000926 | ||||
| 11 | 24-64878 | 700-13821 | SPRING, (Black) | 1 | |||||
| 12 | 805218T | 676-9-42402 | SENSOR | 1 | |||||
| 13 | 807252T2 | THERMOSTAT, 71DegreeC (160 Degree F) | 1 | ||||||
| 14 | 23-806922 | SLEEVE | 1 | ||||||
| 15 | 8M2010186 | POPPET | 1 |
